Overdrive Indicator Lamp: Testing and Inspection

O/D Main Switch & 0/D 0FF Indicator Light Circuit

CIRCUIT DESCRIPTION
The O/D main switch is a momentary type switch. When pressing the O/D main switch, the O/D OFF indicator light lights up and ECM prohibits shifting to O/D, and when pressing it again, the O/D OFF indicator light goes off and ECM allows shifting to O/D. Turning the IG switch OFF will reset the O/D OFF indicator light.

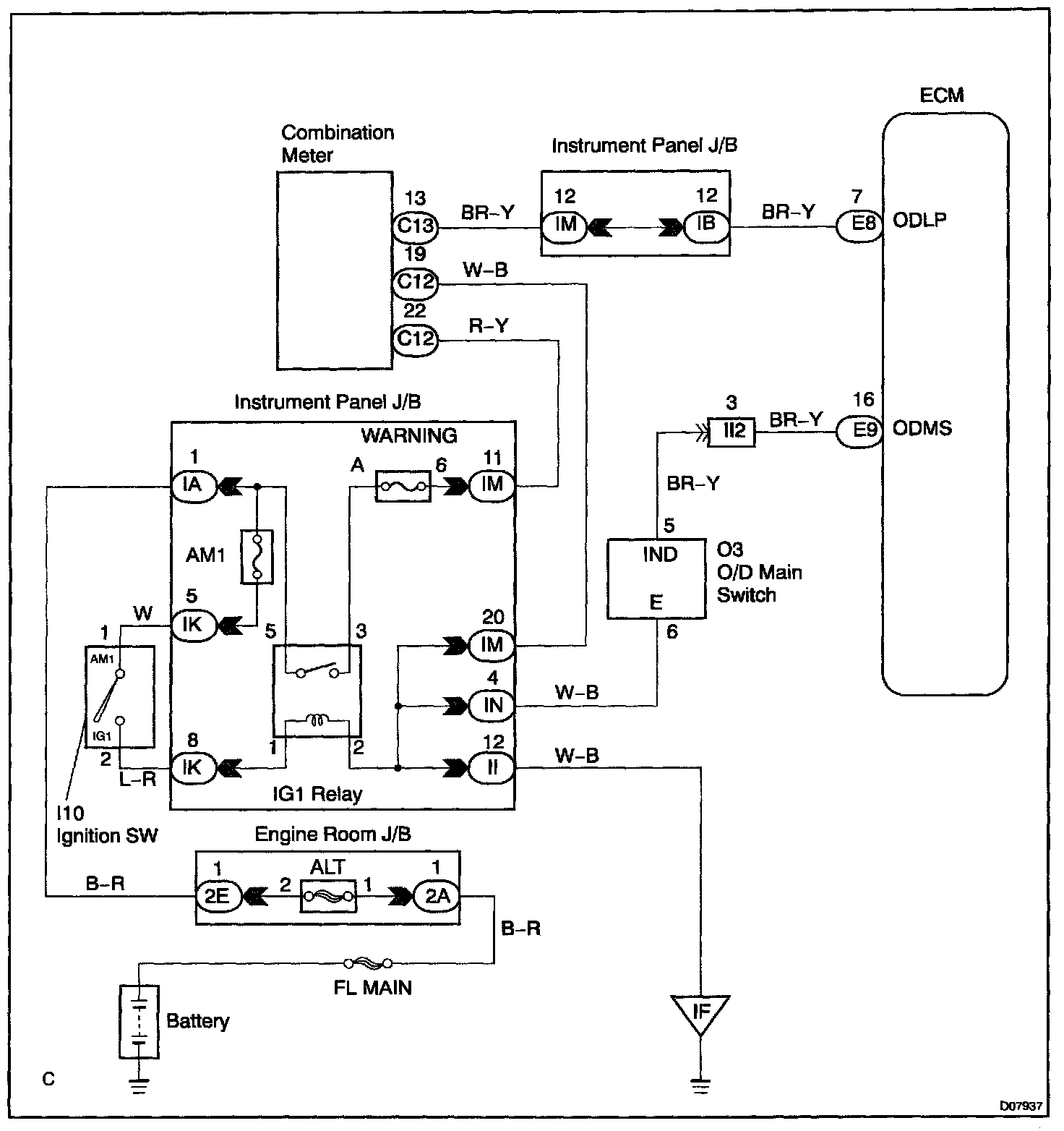

Wiring Diagram:

Step 1 - 3:

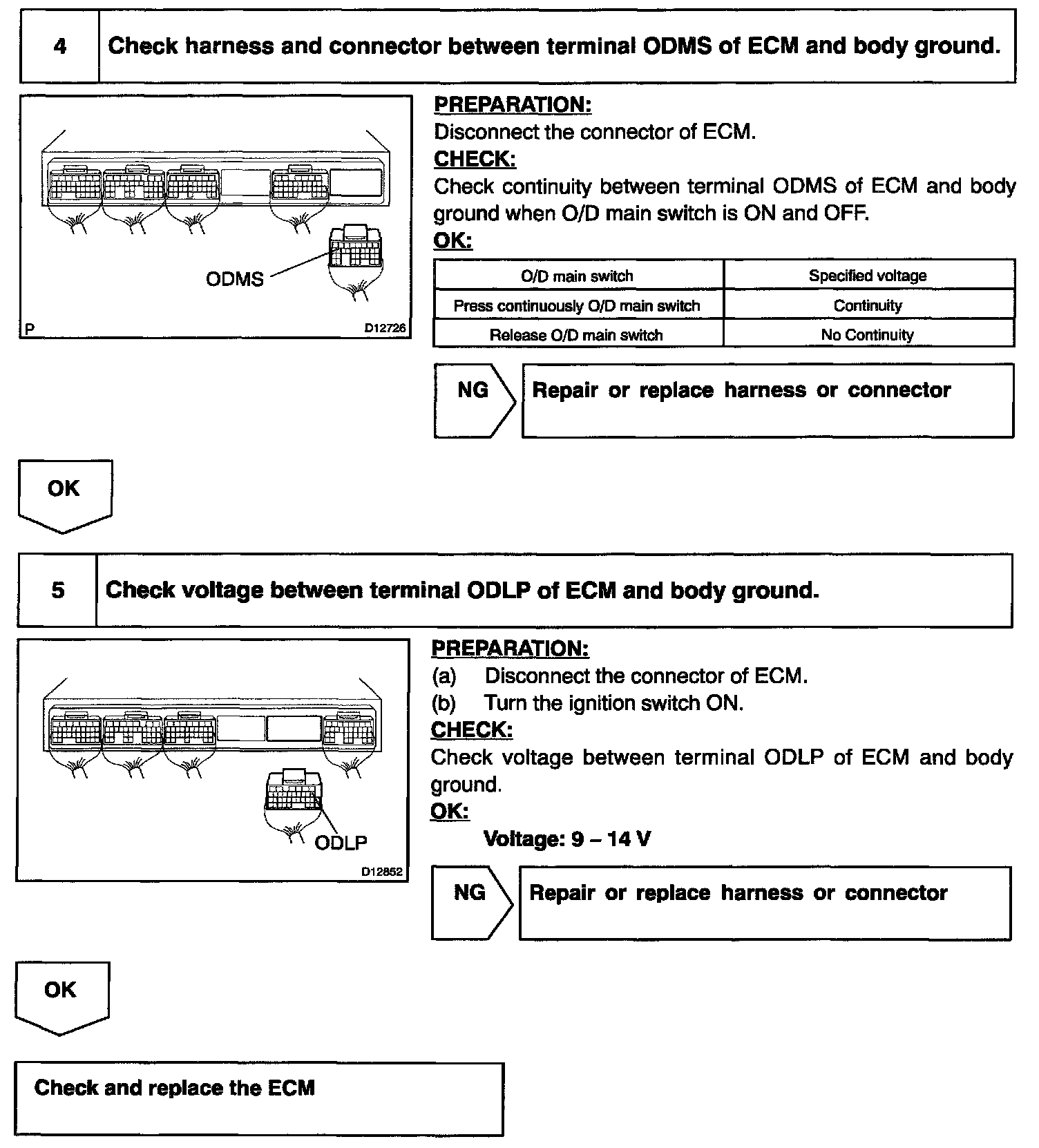

Step 4 - 5:

INSPECTION PROCEDURE
