Service Data

SUSPENSION AND AXLE

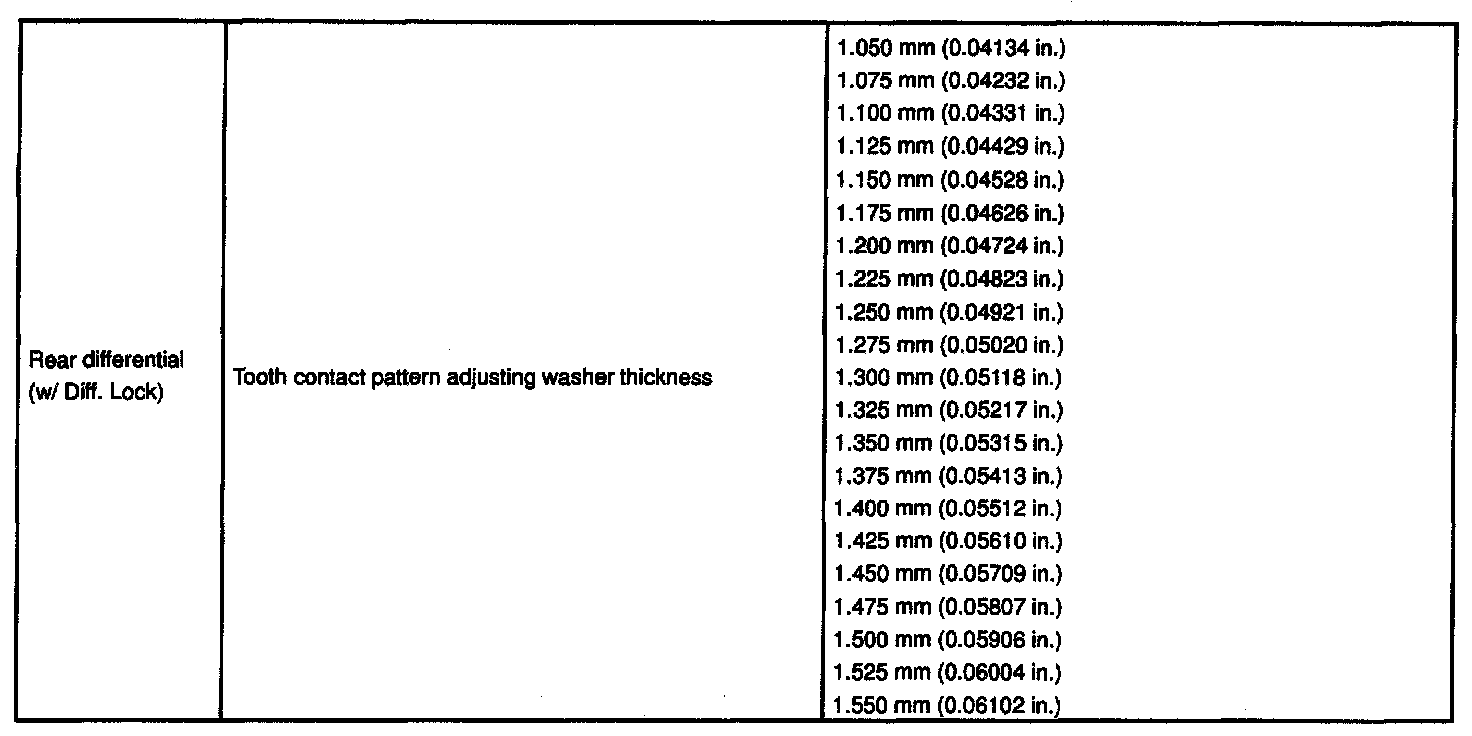

Part 1 Of 8:

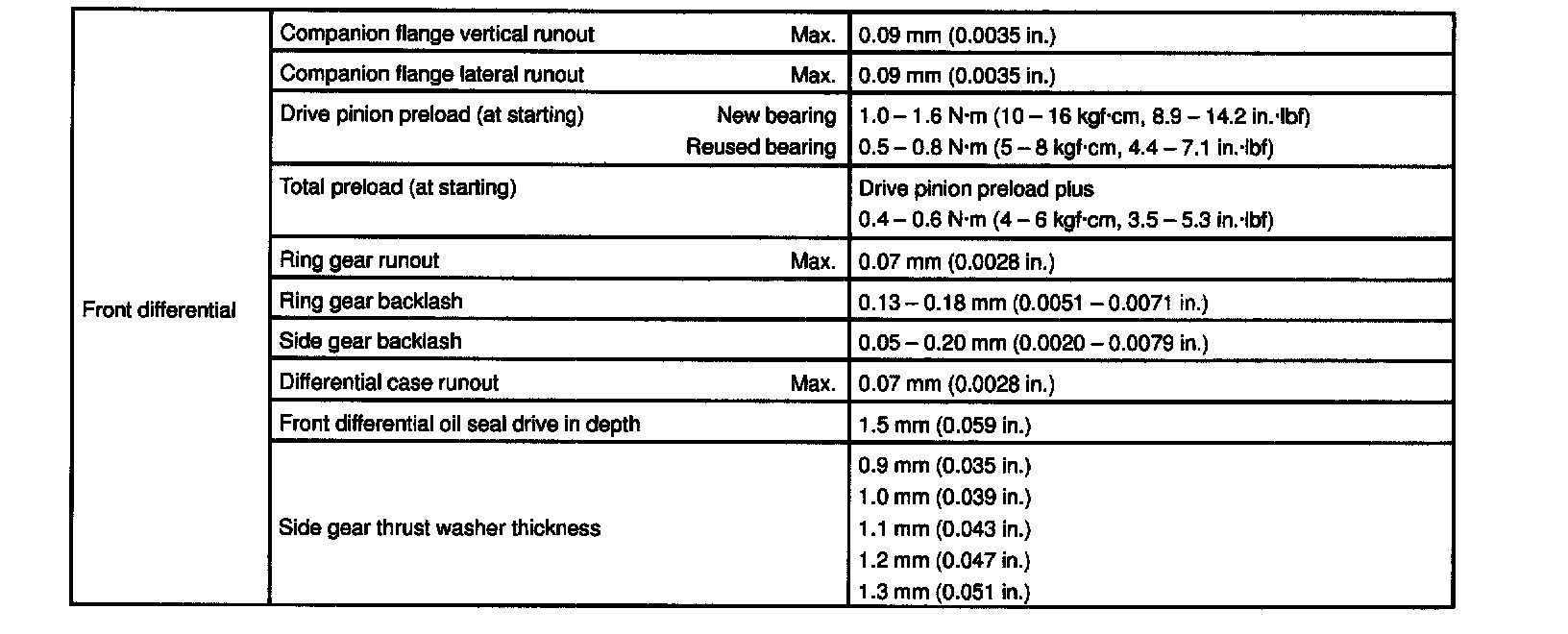

Part 2 Of 8:

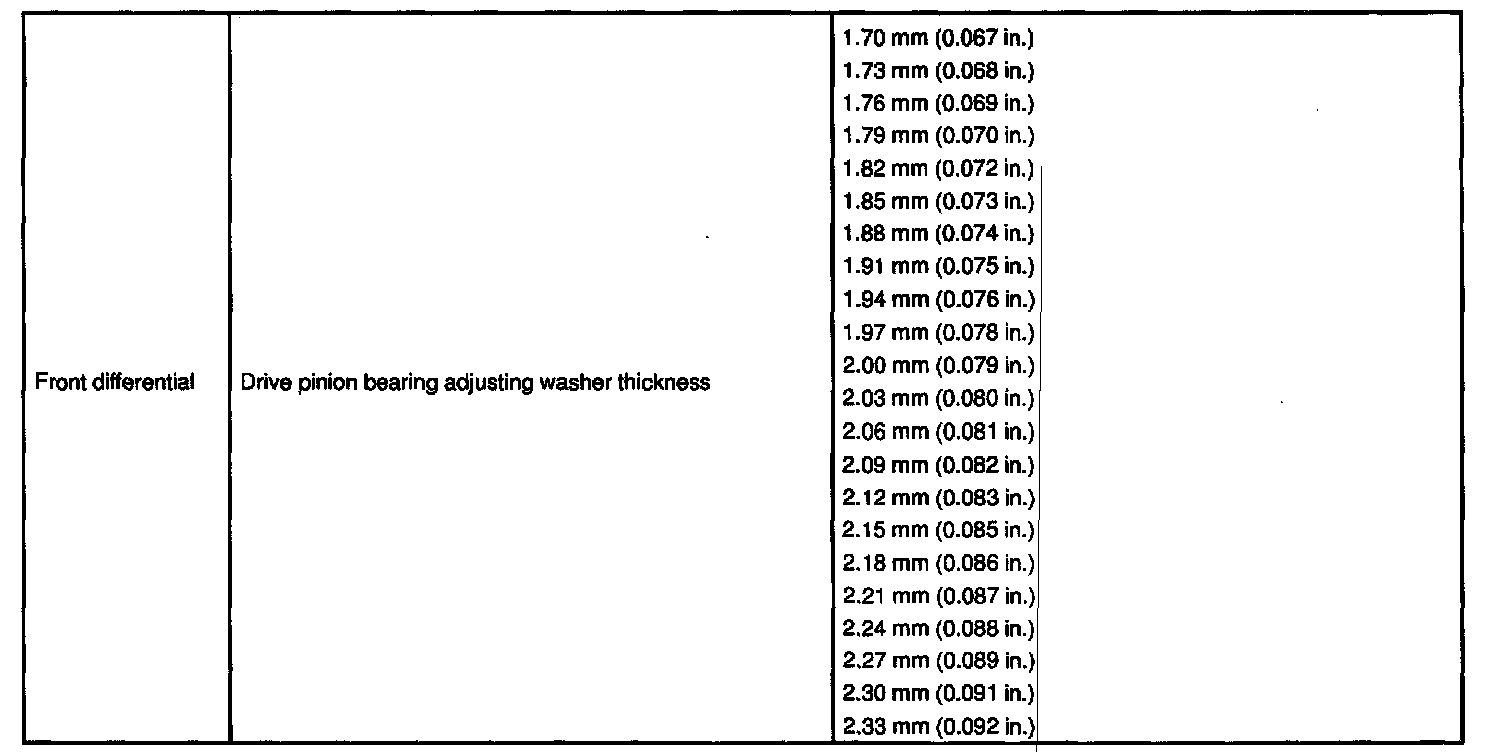

Part 3 Of 8:

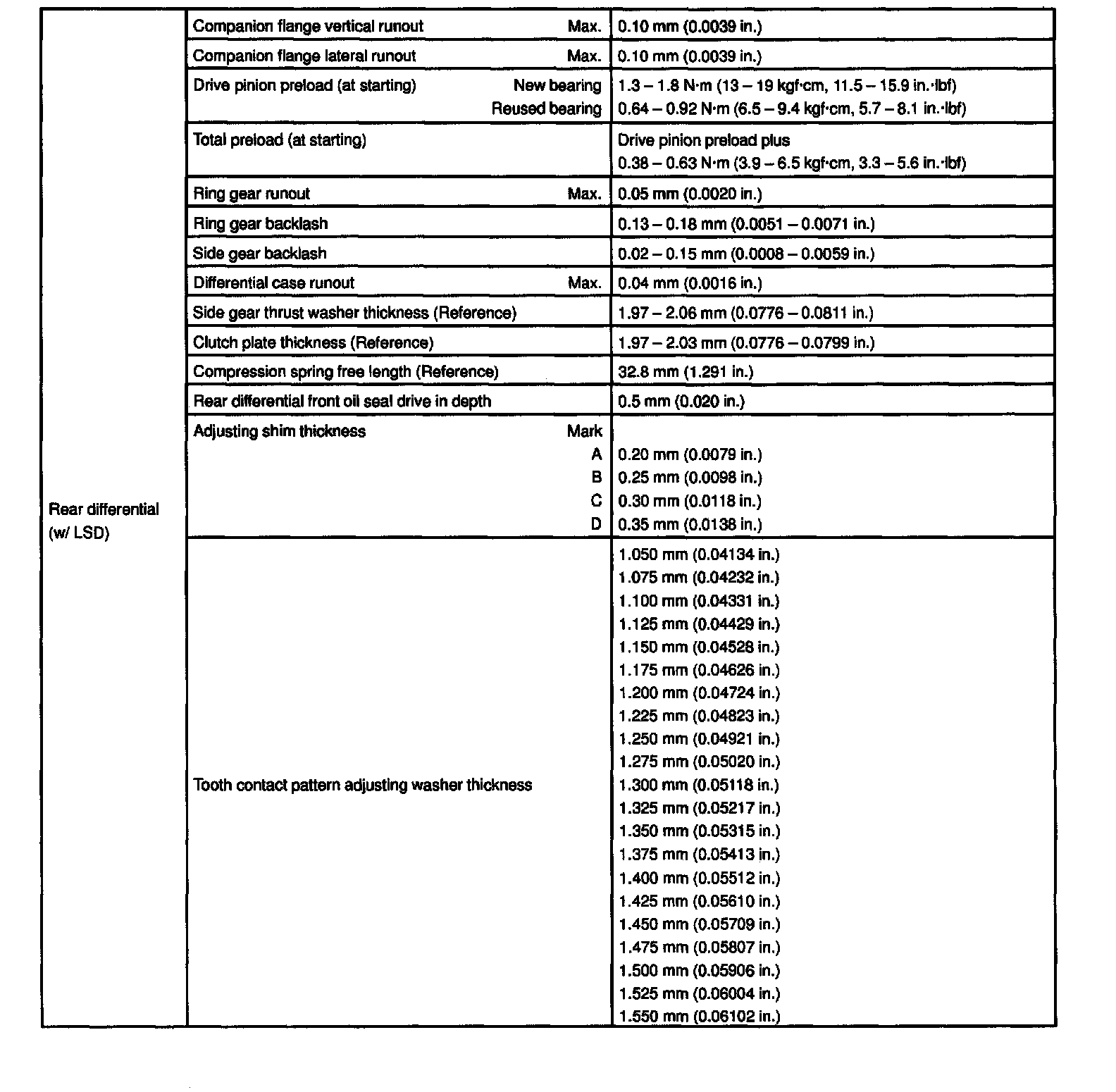

Part 4 Of 8:

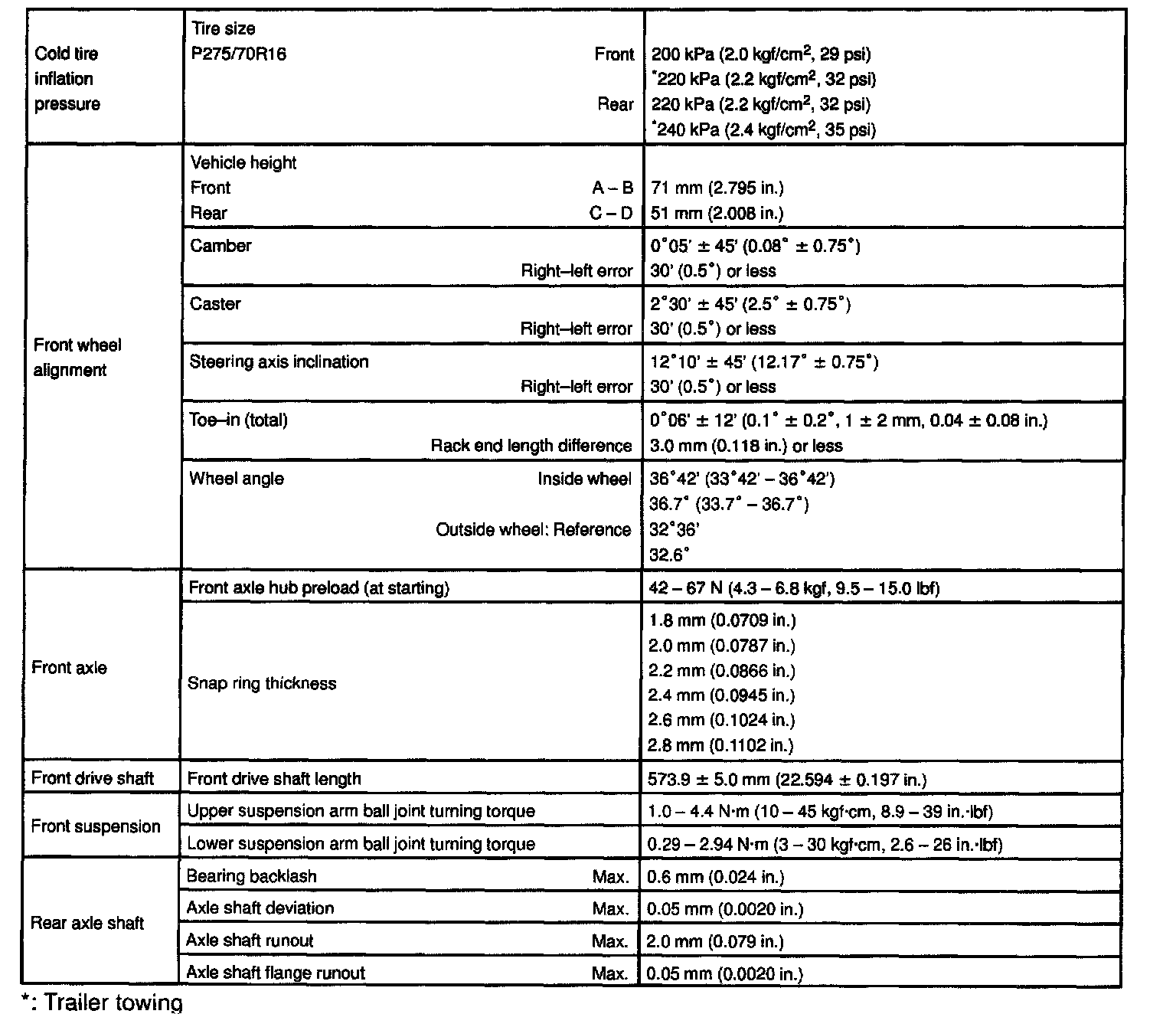

Part 5 Of 8:

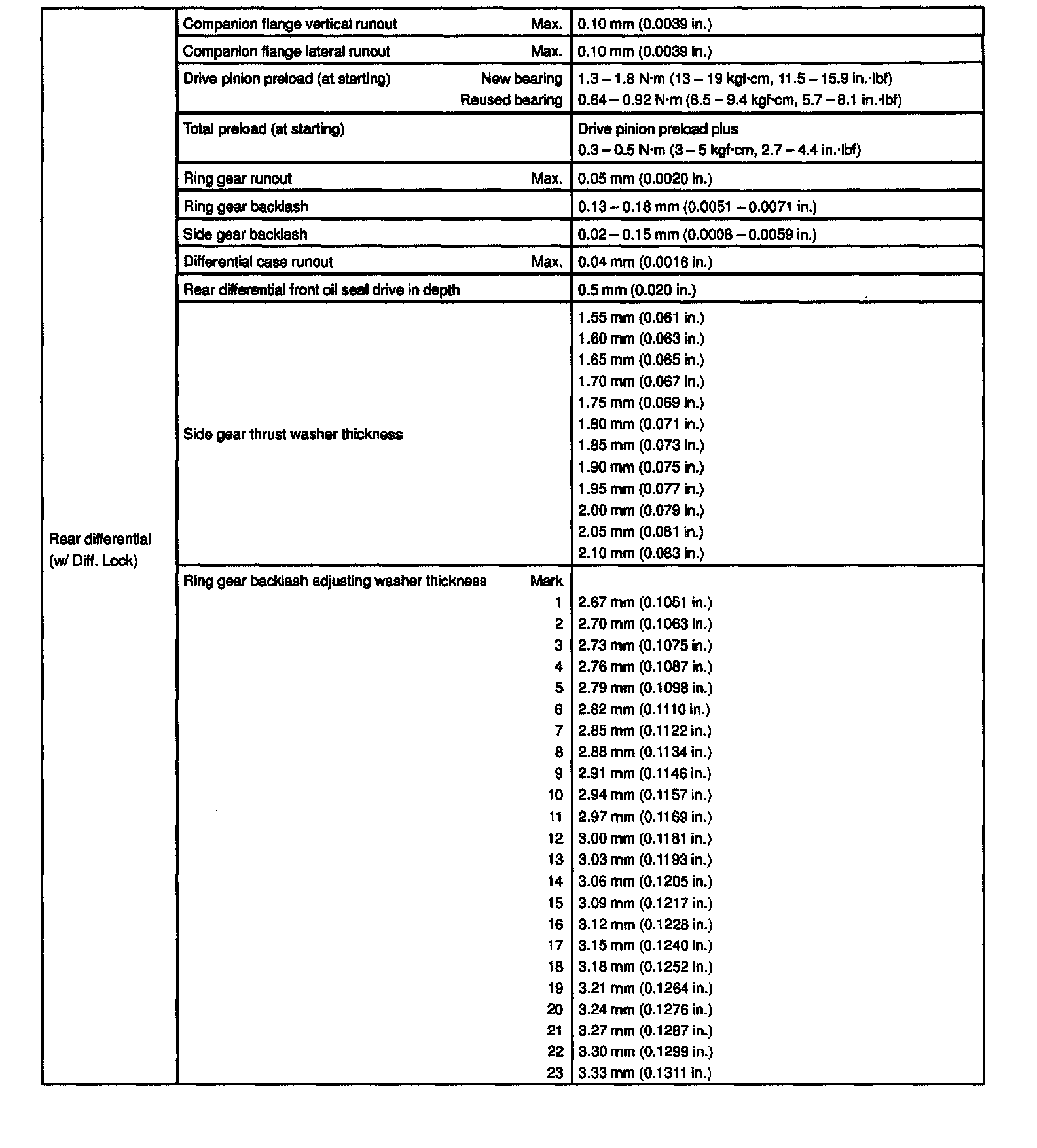

Part 6 Of 8:

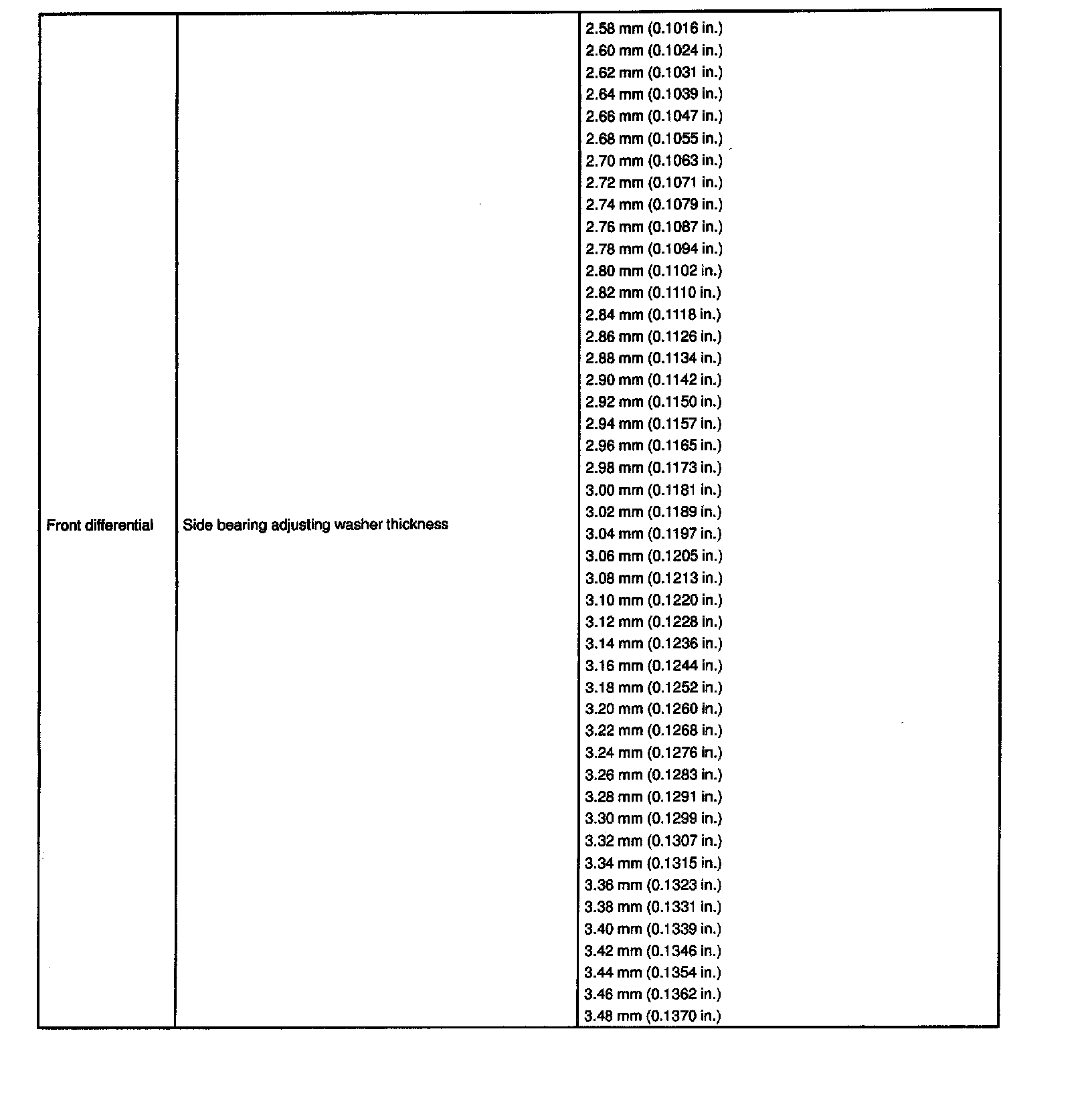

Part 7 Of 8:




Part 8 Of 8:





SERVICE DATA

A: Ground clearance of spindle center
B: Ground clearance of lower suspension arm front bolt center
C: Ground clearance of rear axle shaft center
D: Ground clearance of lower control arm front bushing center
