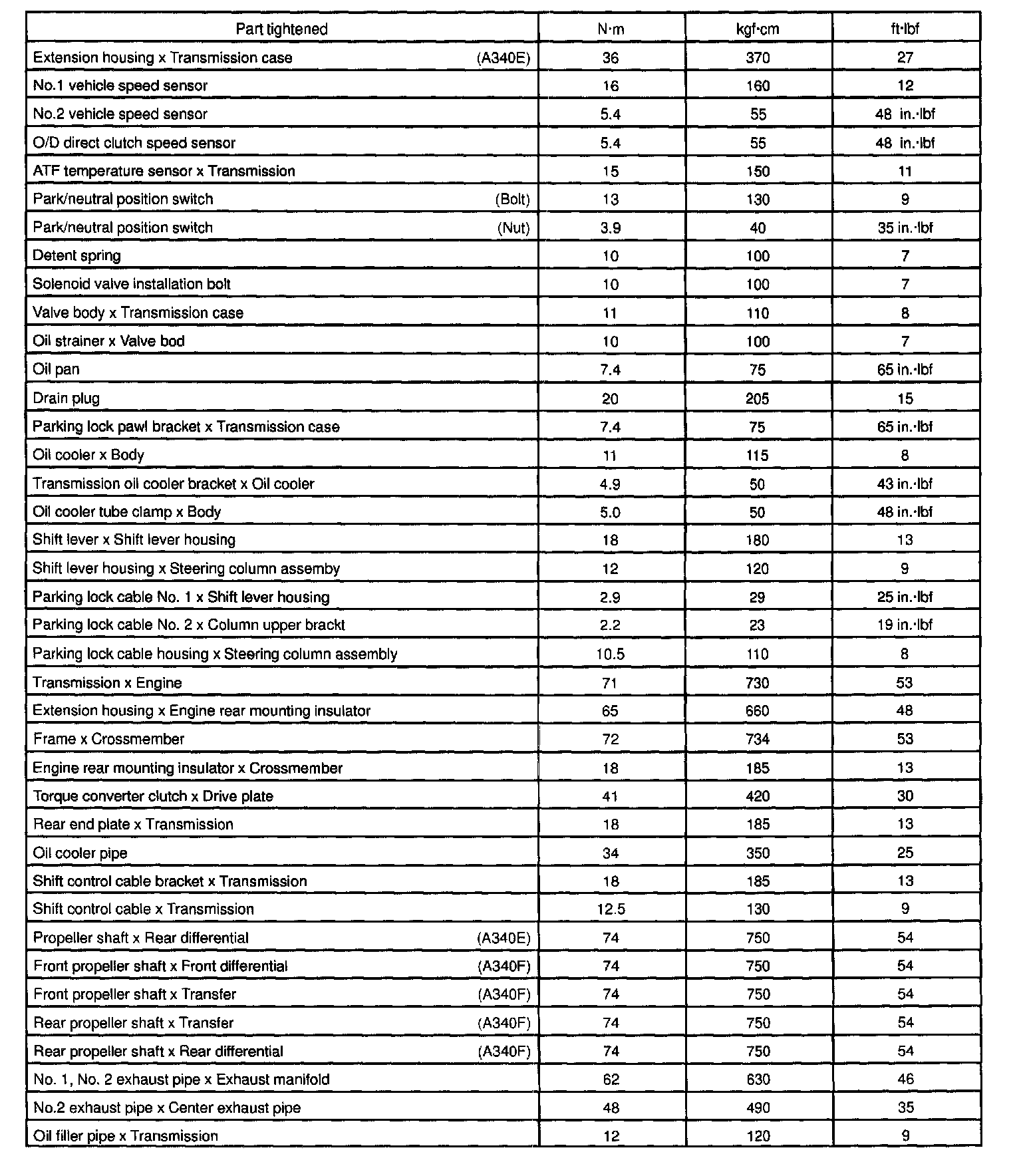

Tightening Specifications





TORQUE SPECIFICATION


Drive plate x Crankshaft
1st 49 Nm (500 kgf-cm, 36 ft. lbs.)
2nd Turn 90° (Turn 90°, Turn 90°)


Drive plate x Torque converter clutch
Torque 48 Nm (490 kgf-cm, 35 ft. lbs.)
