Front A/C

ROOM TEMPERATURE SENSOR (for Front A/C)

INSPECTION

1. REMOVE CENTER CLUSTER FINISH PANEL
Using a screwdriver, remove the center cluster finish panel with connector still connected.

HINT: Tape the screwdriver tip before use.




2. REMOVE ROOM TEMPERATURE SENSOR
a. Disconnect the connector.

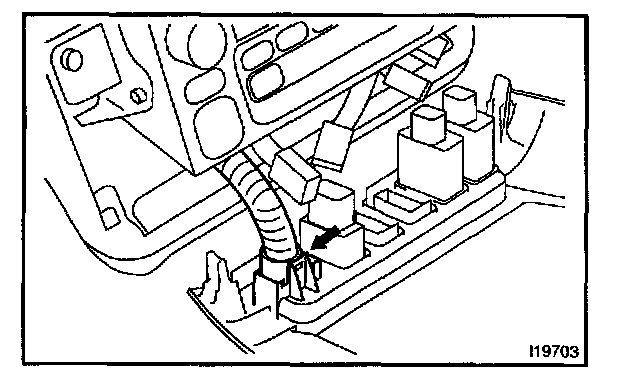

b. Release the 2 claws and remove the room temperature sensor.

3. INSPECT ROOM TEMPERATURE SENSOR CIRCUIT
Refer to diagnostic information provided at Heating and Air Conditioning; Testing and Inspection.


4. INSTALL ROOM TEMPERATURE SENSOR
a. Install the room temperature sensor to center cluster finish panel.
b. Connect the connector.

5. INSTALL CENTER CLUSTER FINISH PANEL
