O/D Main Switch and 0/D Off Indicator Light Circuit

CIRCUIT DESCRIPTION

The O/D main switch is a momentary type switch. When the 0/D main switch is pressed, the O/D OFF indicator light lights up and the ECM prohibits the gear from shifting to the O/D. And, when the O/D main switch is pressed again, the O/D OFF indicator light goes off and the ECM allows the gear to shift to the O/D. Turning the ignition switch OFF will reset the O/D OFF indicator light.

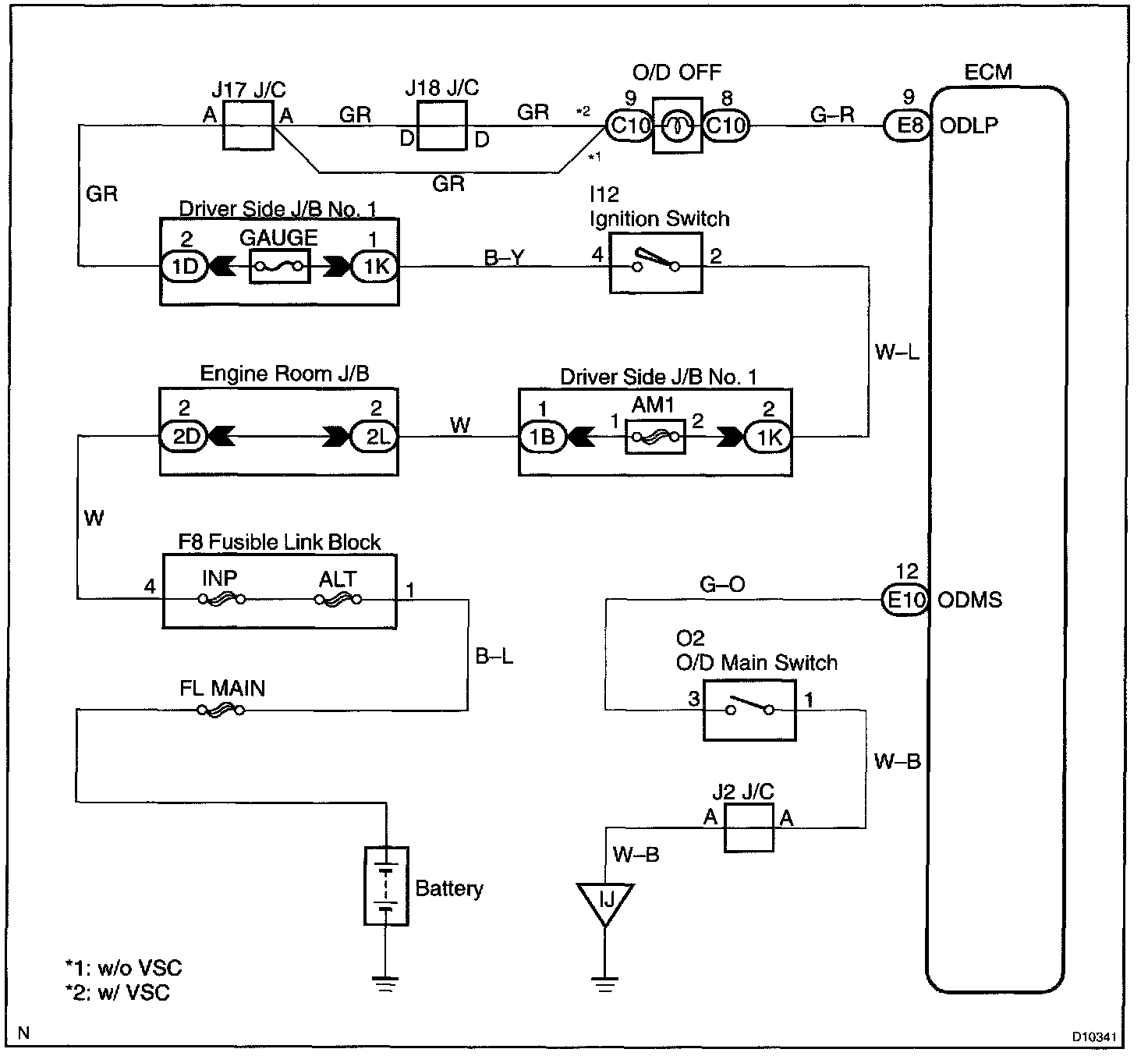

Wiring Diagram:

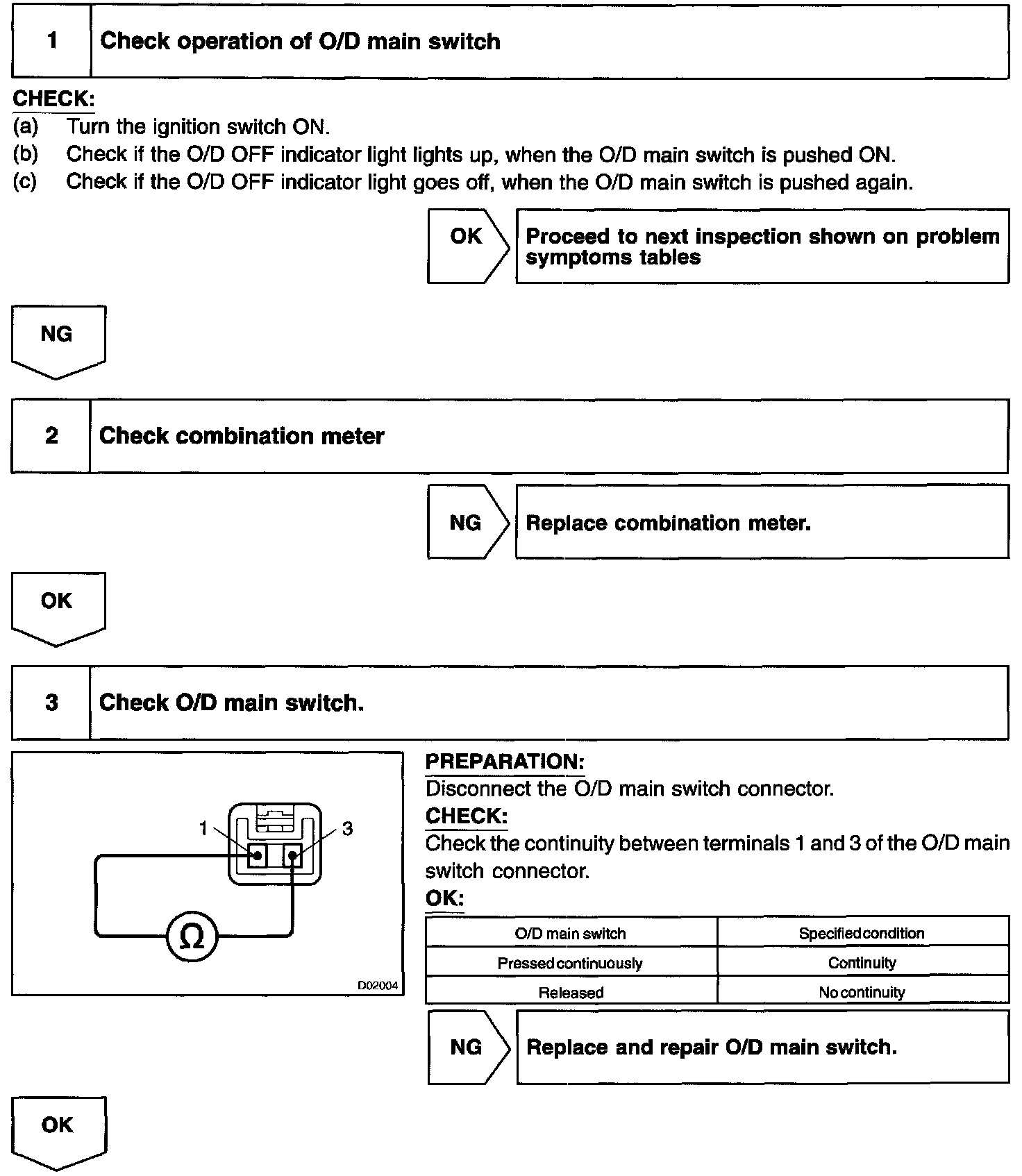

Step 1 - 3:

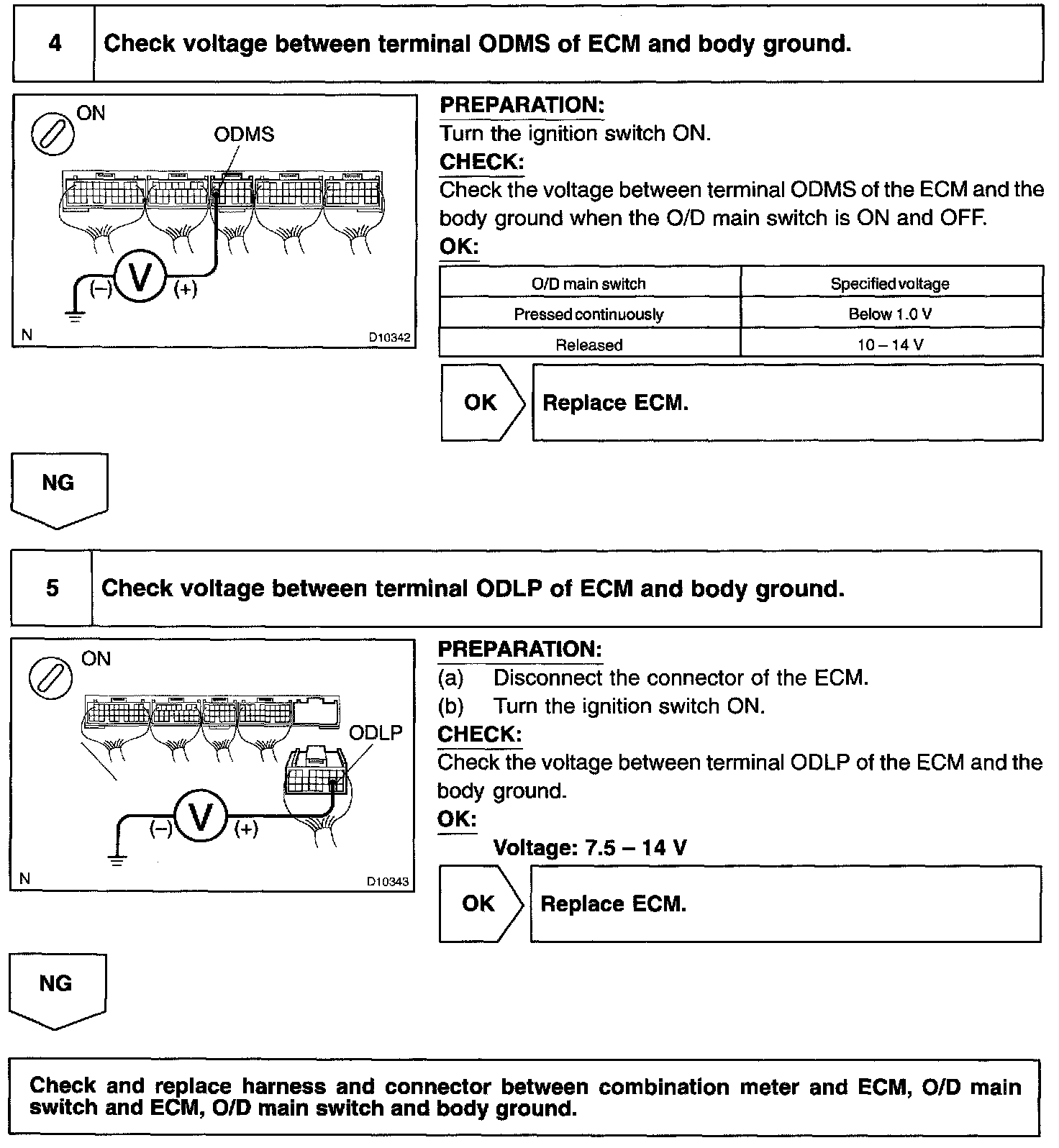

Step 4 - 5:




INSPECTION PROCEDURE
