Transmission Temperature Sensor/Switch: Service and Repair

ON-VEHICLE REPAIR

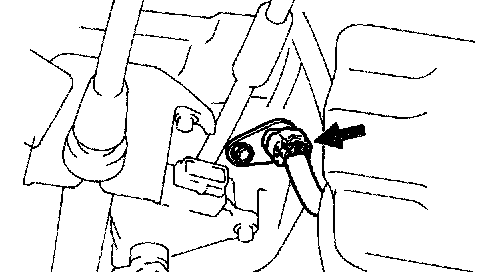

1. DISCONNECT SOLENOID CONNECTOR
2. REMOVE VALVE BODY

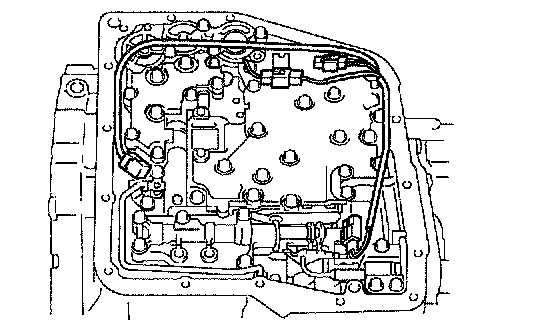

3. REMOVE SOLENOID WIRE
a. Remove the bolt and solenoid wire.
b. Remove the O-ring.
4. INSTALL SOLENOID WIRE
a. Install a new O-ring to the solenoid wire.
b. Coat the O-ring with ATF.
c. Install the solenoid wire with the bolt.
Torque: 9.8 Nm (100 kgf-cm, 7 ft. lbs.)
5. INSTALL VALVE BODY
6. CONNECT SOLENOID CONNECTOR
7. FILL ATF AND CHECK ATF LEVEL
