Normal Scan Data Values
ENGINE OPERATING CONDITION NOTE: The values given below for "Normal Condition" are representative values. So, a vehicle may still be normal even if its value differs from those listed here. So, do not solely depend on the "Normal Condition" here when deciding whether a part is faulty or not.

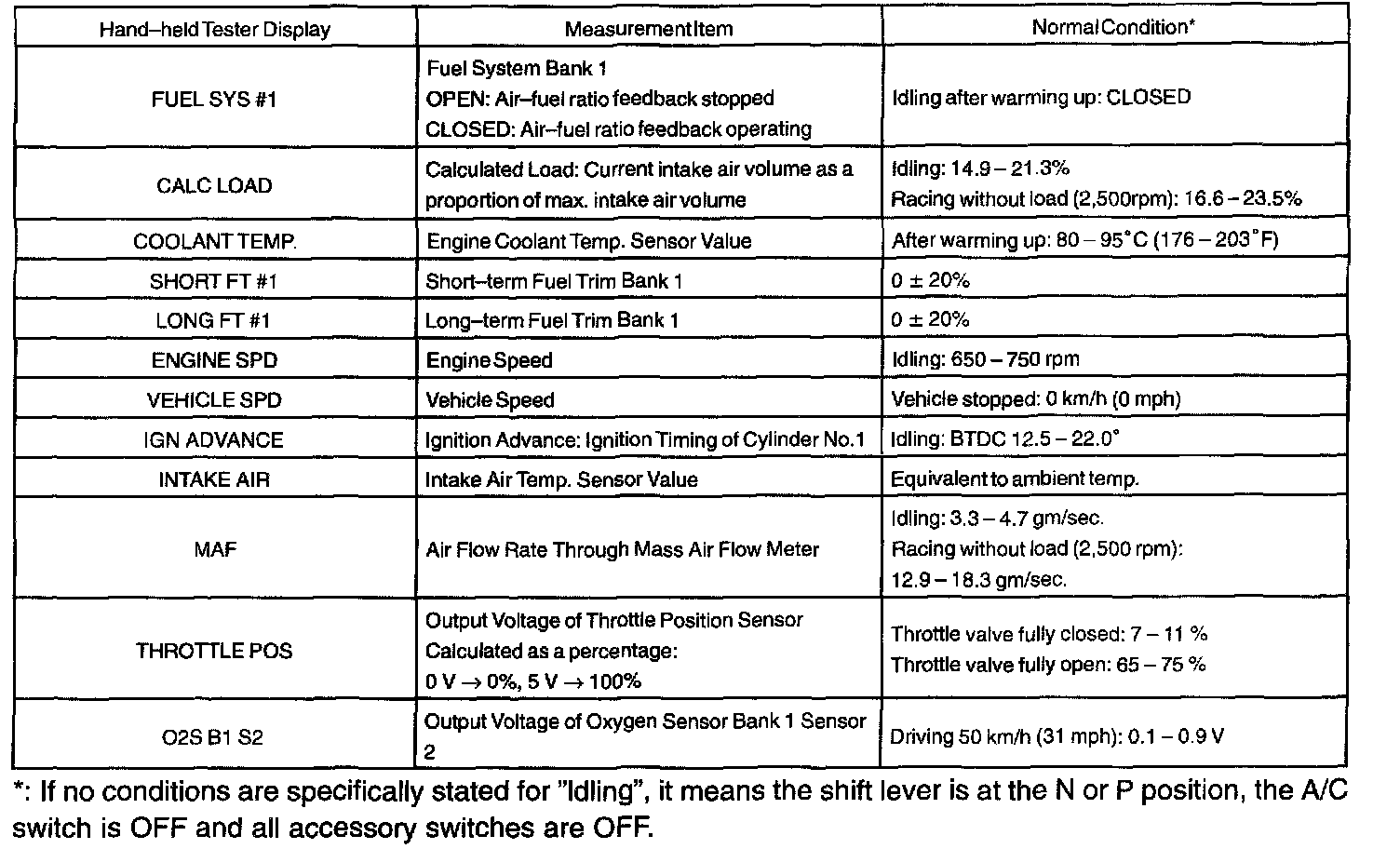

a.
CARB mandated signals.

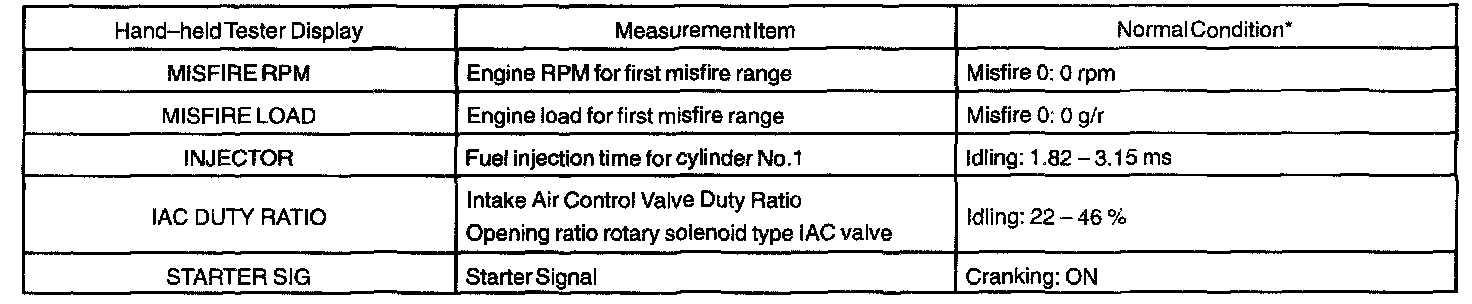

b.
TOYOTA Enhanced Signals.
