Leak Detection Sensor: Service and Repair

Vapor Pressure Sensor:

REPLACEMENT

1. REMOVE FUEL TANK

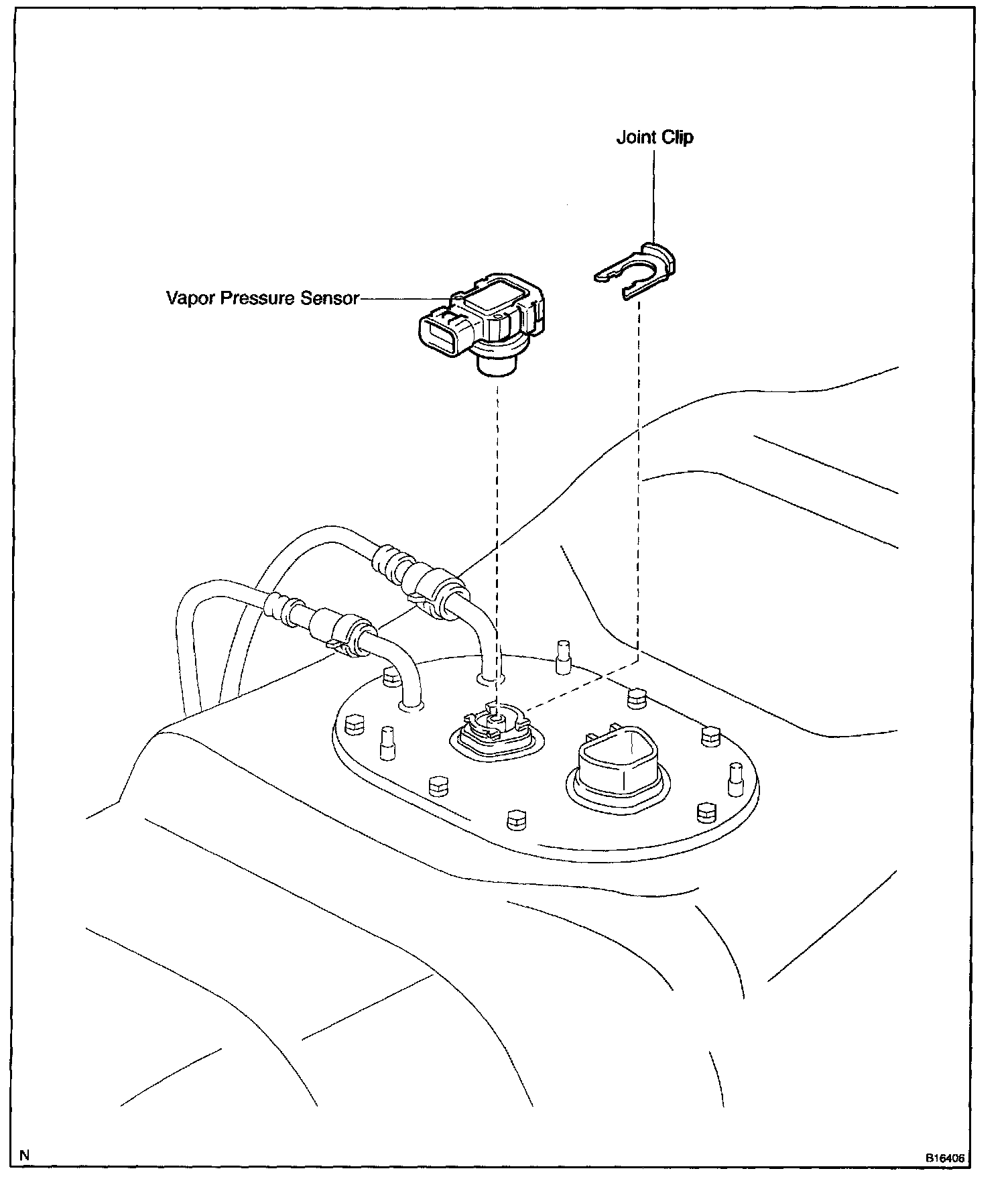

2. REMOVE VAPOR PRESSURE SENSOR

a. Slightly turn the sensor.
b. Remove the joint clip.
c. Pull out the sensor.
d. Plug the port of the fuel suction plate with a clean rubber cap.

3. REINSTALL VAPOR PRESSURE SENSOR

a. Attach the sensor to the port of the fuel suction plate.
b. Install the joint clip.

c. Turn the sensor, and face the sensor connector forward.

4. REINSTALL FUEL TANK
