O/D Off Indicator Light Does Not Light Up
CIRCUIT DESCRIPTIONIf the O/D main switch is pressed while the O/D OFF indicator is off, the O/D indicator will light up. If the O/D main switch is pressed while the O/D OFF indicator is on, the O/D indicator will go off (the
ignition switch ON).
Wiring Diagram:

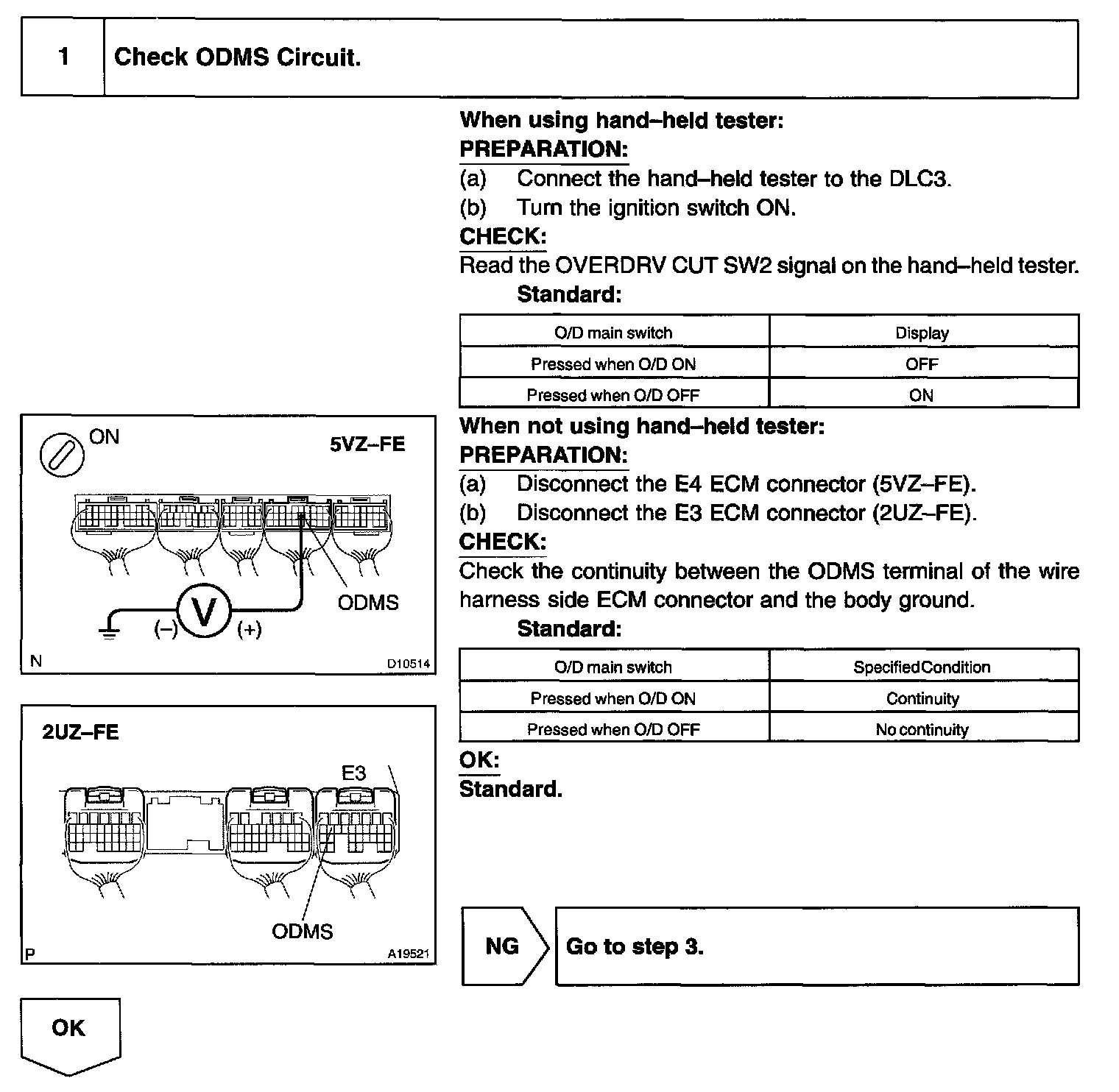

Step 1:

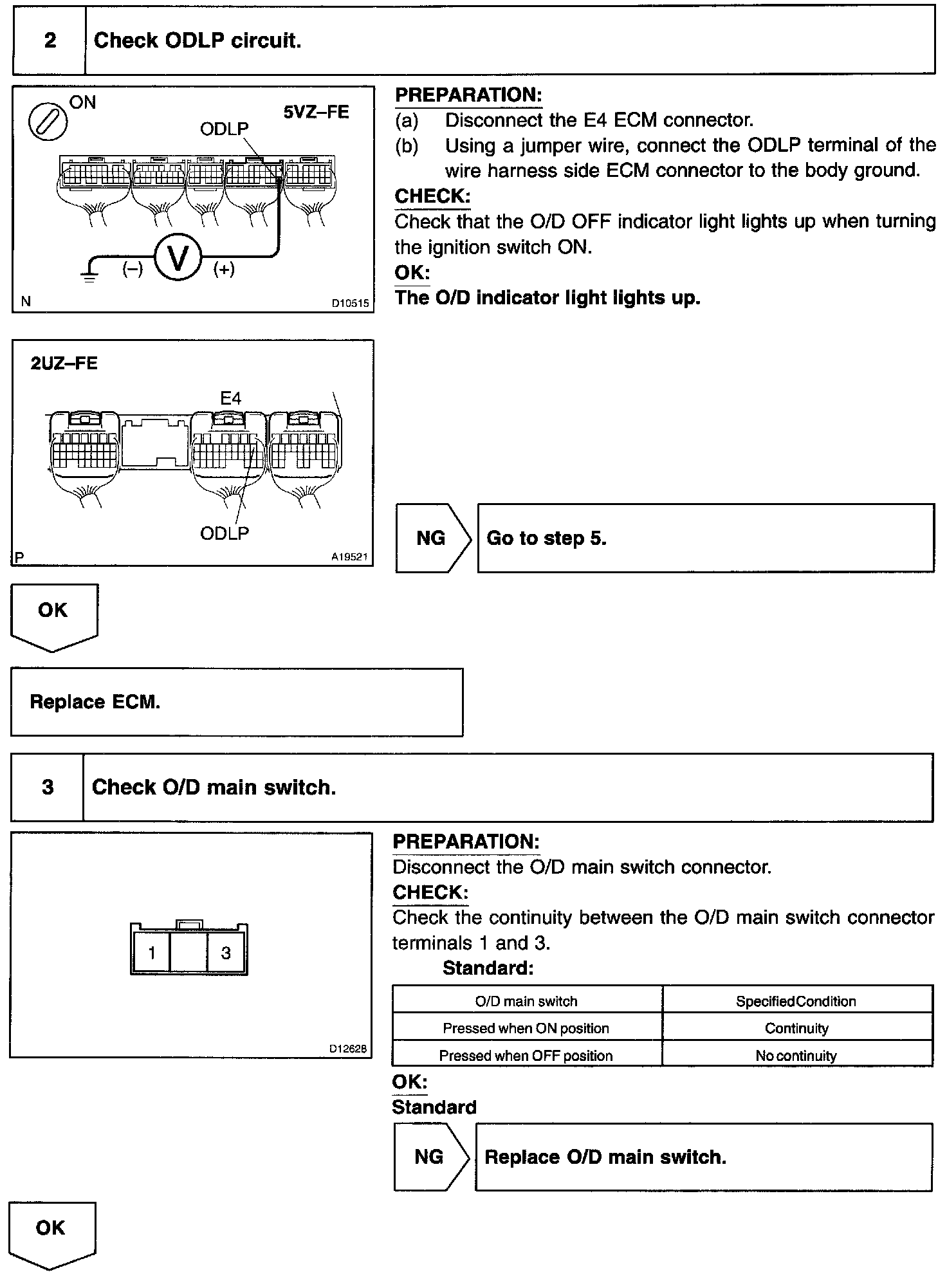

Step 2 - 3:

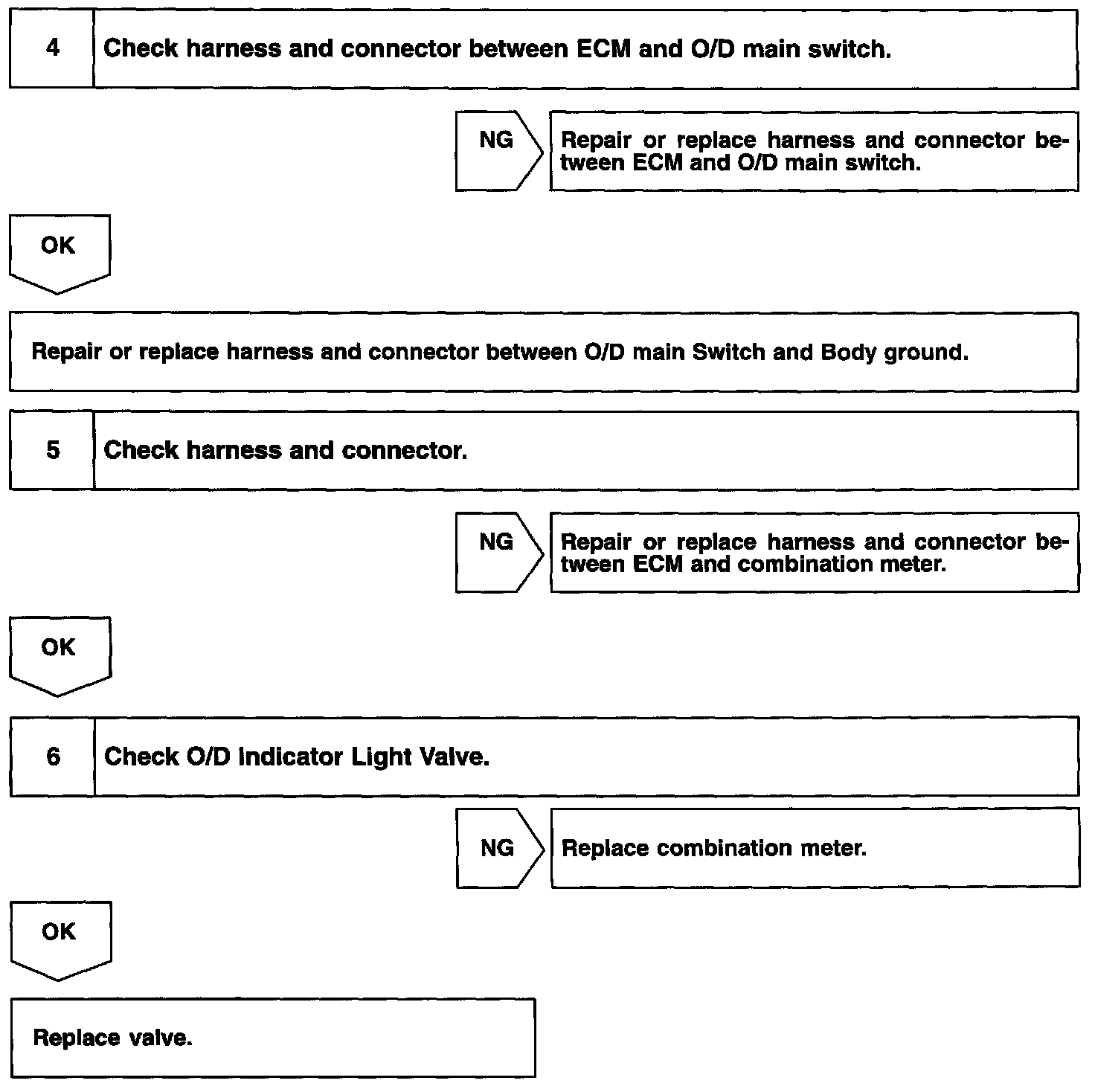

Step 4 - 6:
INSPECTION PROCEDURE
