Installation

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL (w/ Multi-display): INSTALLATION

1. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET

(a) Connect the connectors.

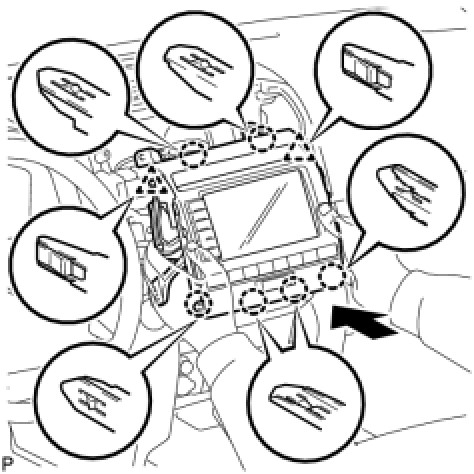

(b) Insert the radio receiver and attach the 8 claws on its backside.





NOTICE:
When inserting the radio receiver, do not press the knobs on it.

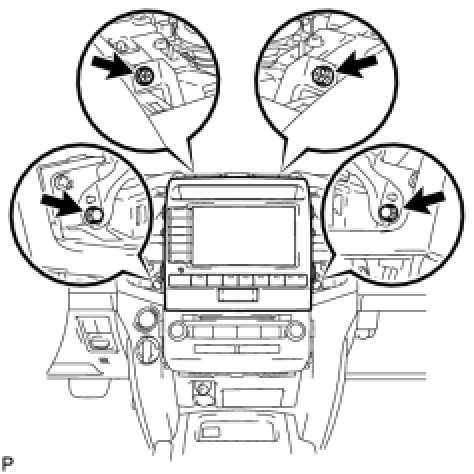

(c) Install the radio receiver with the 4 bolts.





2. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

3. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

4. INSTALL NO. 1 SPEAKER OPENING COVER ASSEMBLY Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
