Service Data

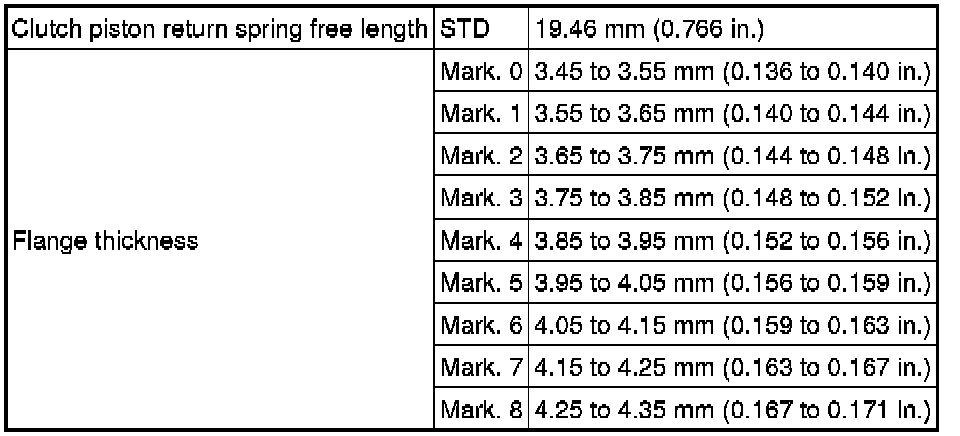

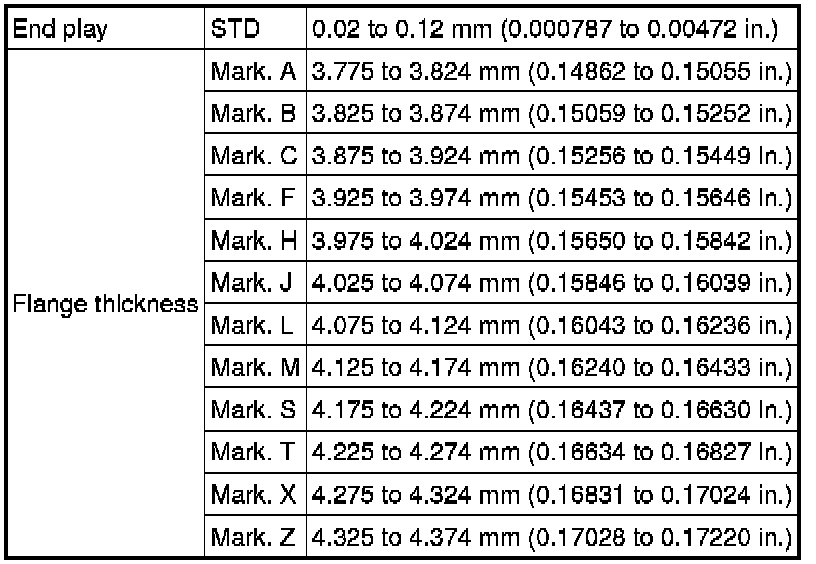

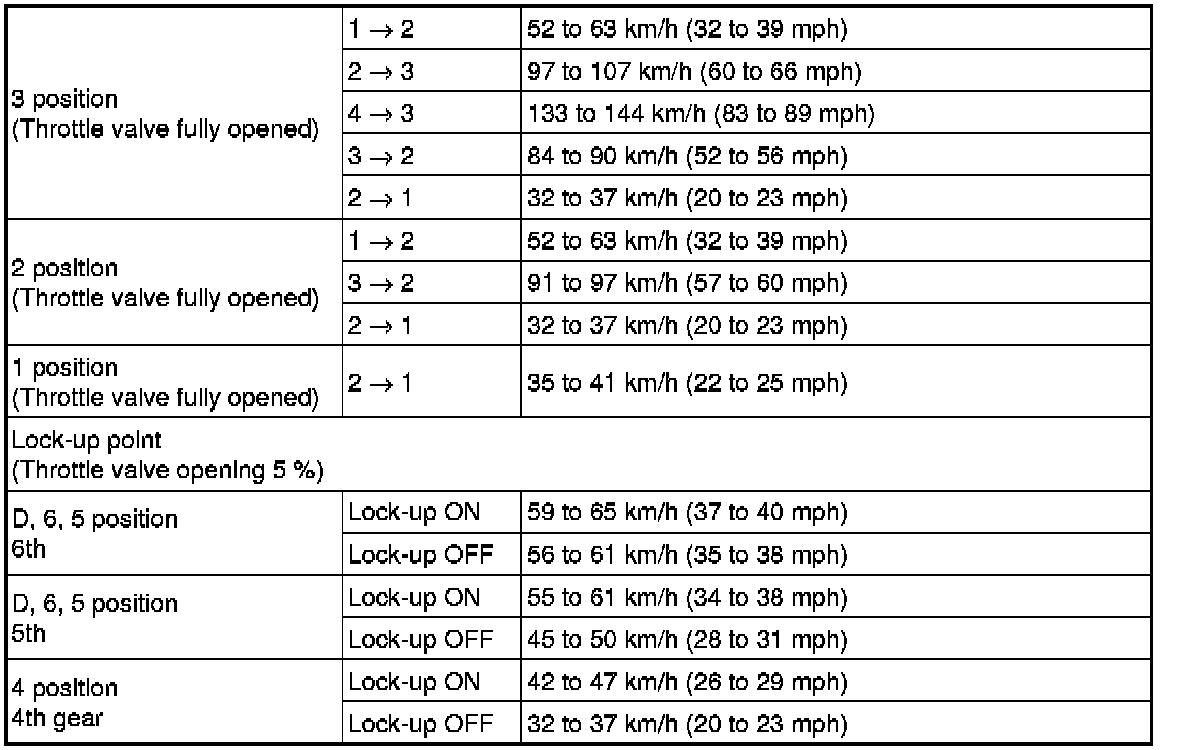

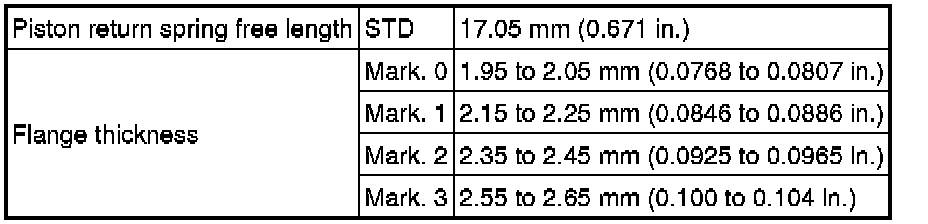

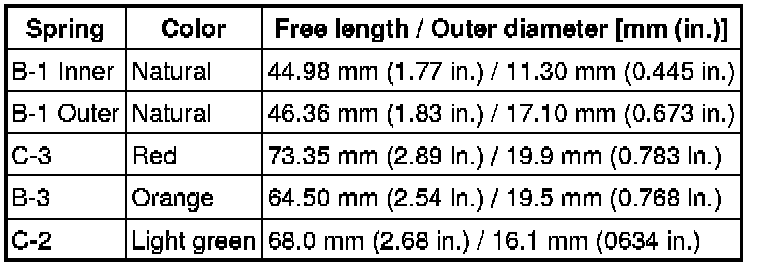

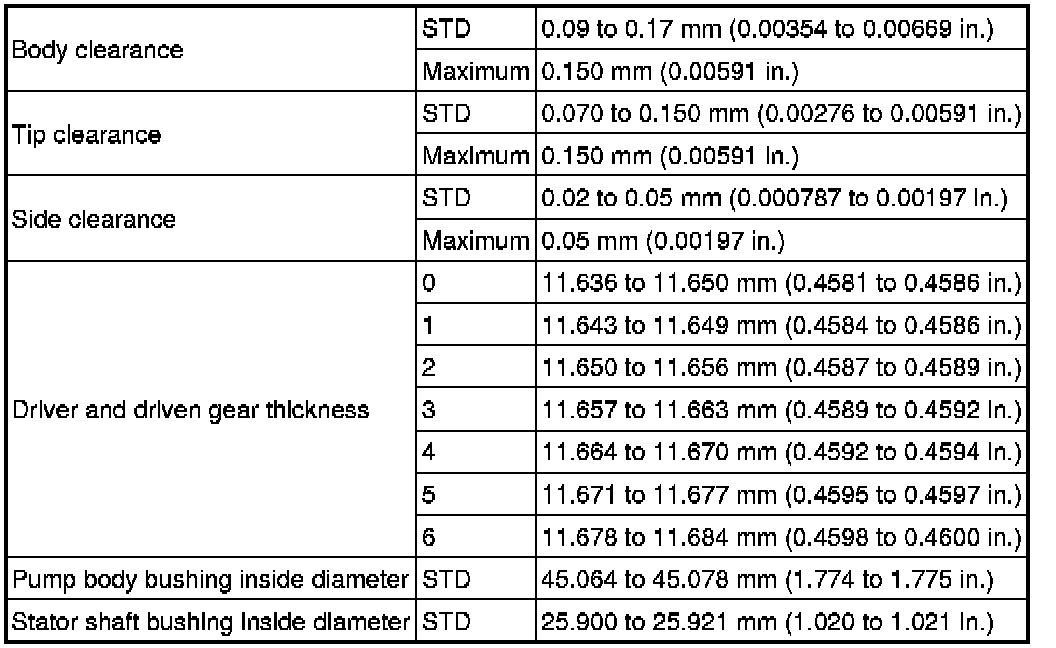

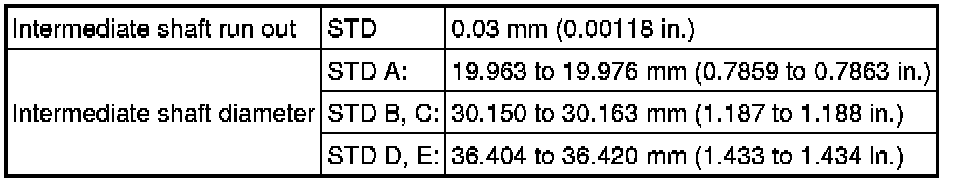

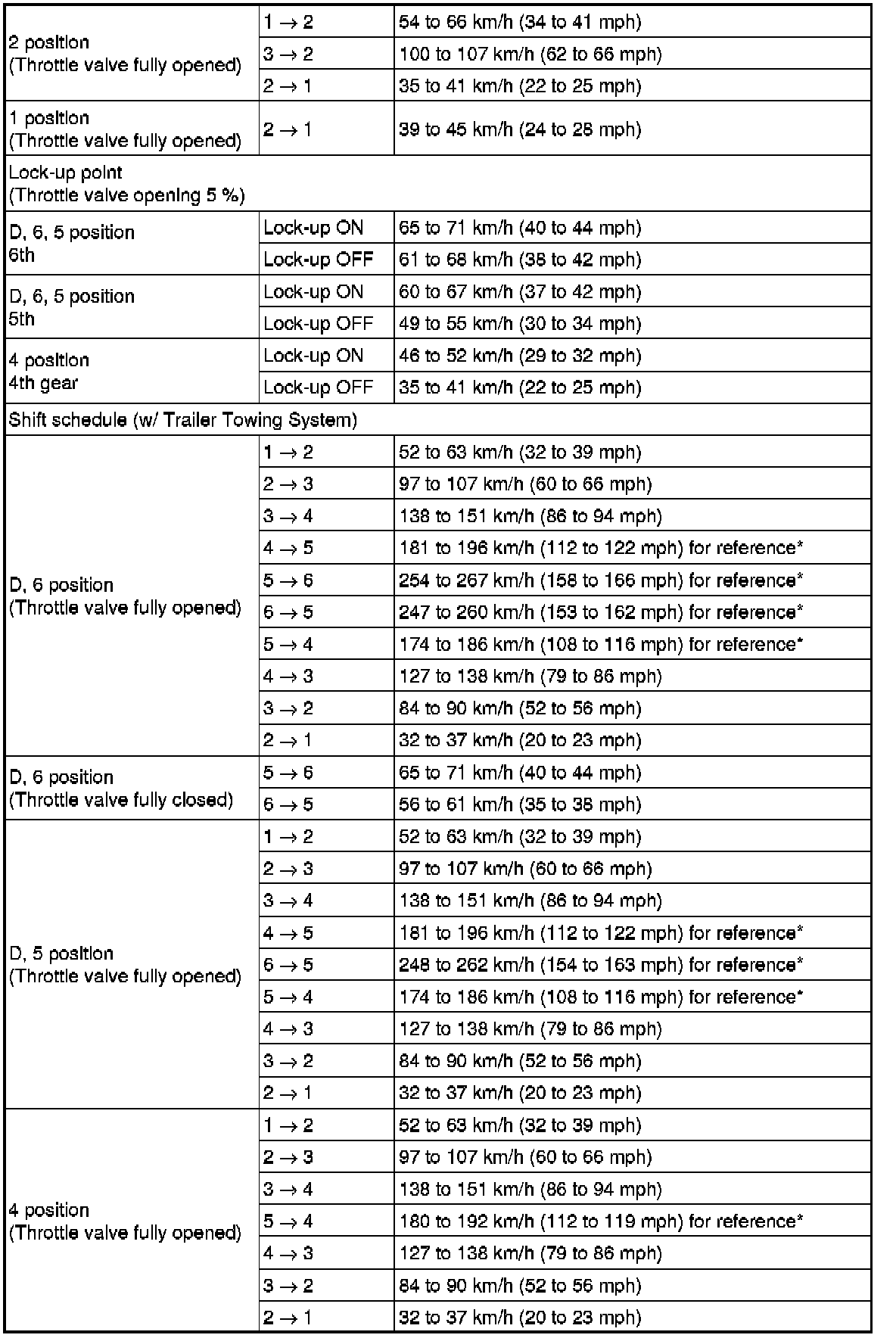

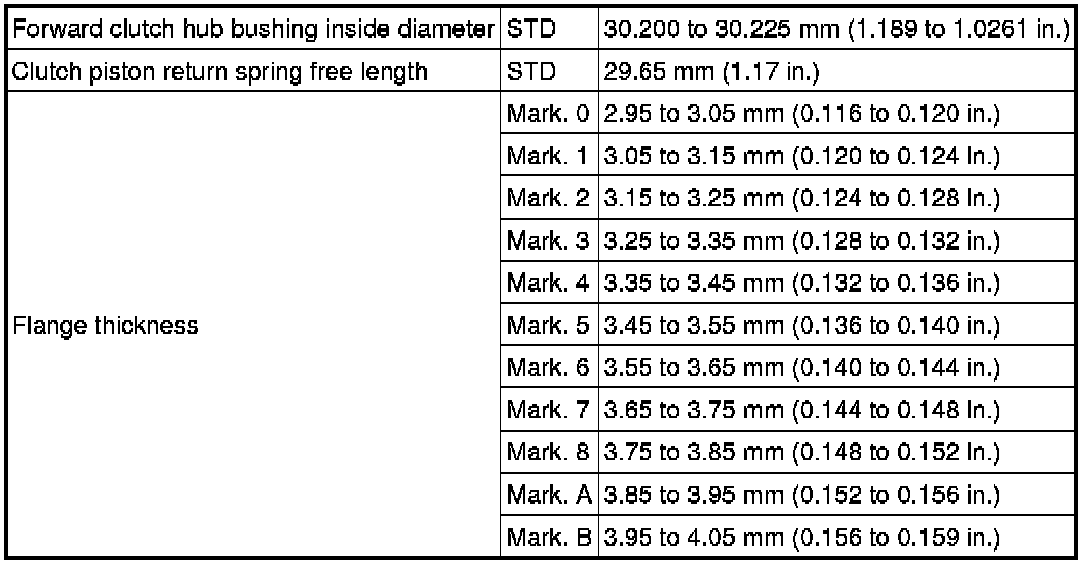

SPECIFICATIONS: AB60E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

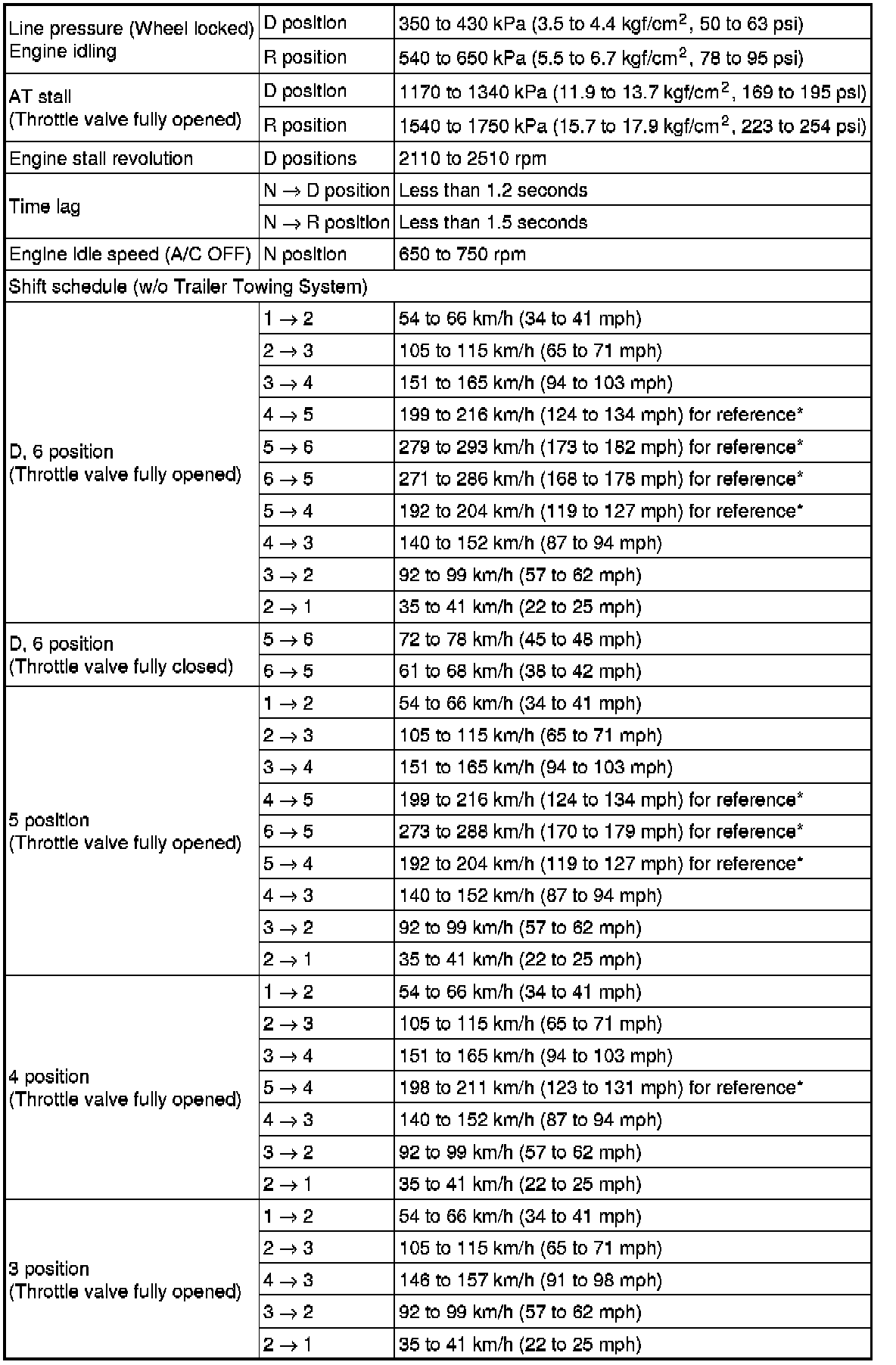

*: Maximum speed is 180 km/h (112 mph), so this value is for reference.

CAUTION:
Strictly observe speed limits when performing the confirmation.
