Cylinder Head Assembly
CYLINDER HEAD LHThe cylinder head bolts are tightened in 3 progressive steps.
Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 10 cylinder head bolts with the plate washers in several steps, in the sequence shown in the illustration.
Torque 36 Nm (367 kgf-cm, 27 ft-lbf)
Mark the front of the cylinder head bolts with paint.

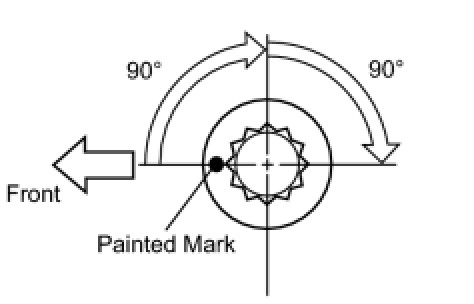

Further tighten the cylinder head bolts 90° and then an additional 90° as shown in the illustration.
Check that the paint mark is now at a 180° angle from the front.
Install and uniformly tighten the 2 cylinder head bolts.
Torque 21 Nm (214 kgf-cm, 16 ft-lbf)
CYLINDER HEAD SUB-ASSEMBLY
The cylinder head bolts are tightened in 3 progressive steps.
Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 10 cylinder head bolts with the plate washers in several steps, in the sequence shown in the illustration.
Torque 36 Nm (367 kgf-cm, 27 ft-lbf)
Mark the front of the cylinder head bolts with paint.
Further tighten the cylinder head bolts 90° and then an additional 90° as shown in the illustration.
Check that the paint mark is now at a 180° angle from the front.
Install and uniformly tighten the 2 cylinder head bolts.
Torque 21 Nm (214 kgf-cm, 16 ft-lbf)
SURFACE VARIATION
CYLINDER HEAD SET BOLT
Using a vernier caliper, measure the diameter of the elongated thread at the measuring point.
Measuring point
For intake side bolt 94 mm (3.70 in.)
For exhaust side bolt 89 mm (3.50 in.)
Standard diameter 10.85 to 11.00 mm (0.427 to 0.433 in.)
Minimum diameter 10.6 mm (0.417 in.)
If the diameter is less than the minimum, replace the cylinder head bolt.

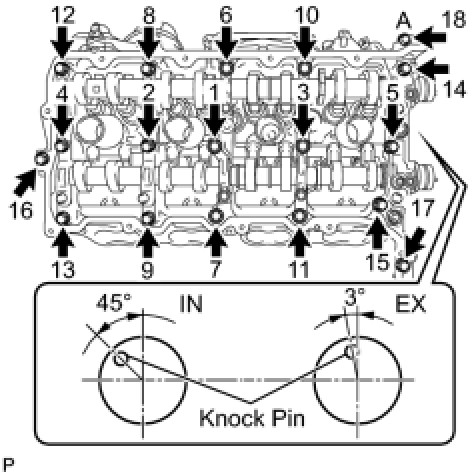

CAMSHAFT HOUSING SUB-ASSEMBLY LH
Install the camshaft housing, and install the 18 bolts in the order shown in the illustration.
Bolt A - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
Except bolt A - Torque 30 Nm (306 kgf-cm, 22 ft-lbf)

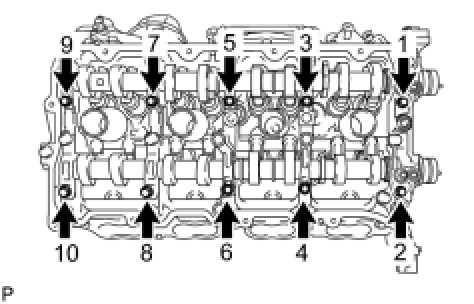

Tighten the 10 bolts in the order shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft-lbf)

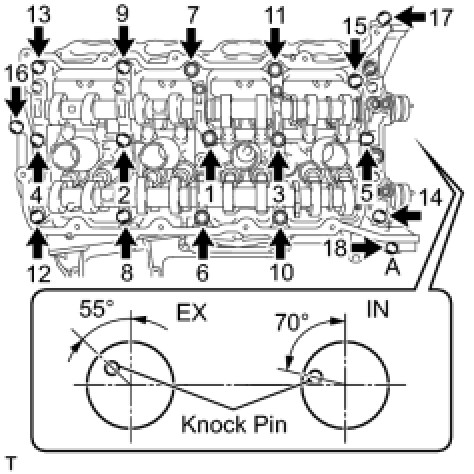

CAMSHAFT HOUSING SUB-ASSEMBLY RH
Install the camshaft housing, and install the 18 bolts in the order shown in the illustration.
Bolt A - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
Except bolt A - Torque 30 Nm (306 kgf-cm, 22 ft-lbf)

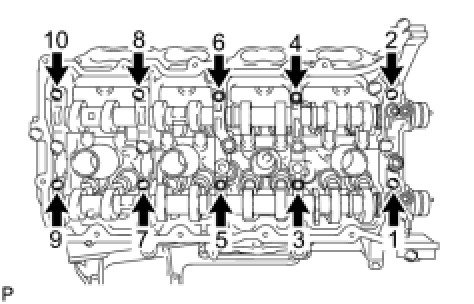

Tighten the 10 bolts in the order shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
