Problem Symptoms Table

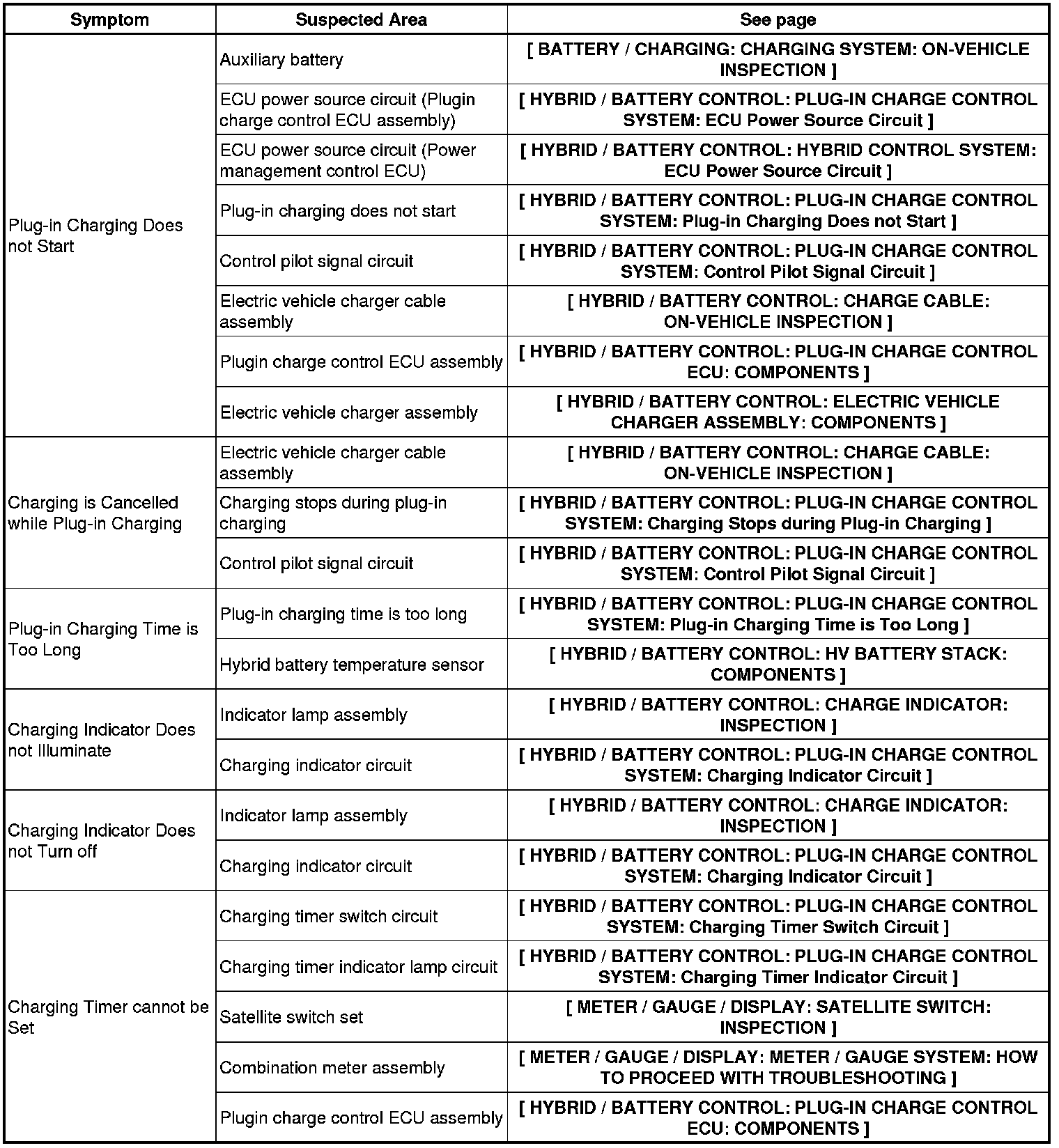

HYBRID / BATTERY CONTROL: PLUG-IN CHARGE CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE
Plug-in Charge Control System
