Radiator Cooling Fan Control Module

Coolant fan control module, location/terminal identification

Location
The coolant fan control module is located in the engine compartment, on the left.

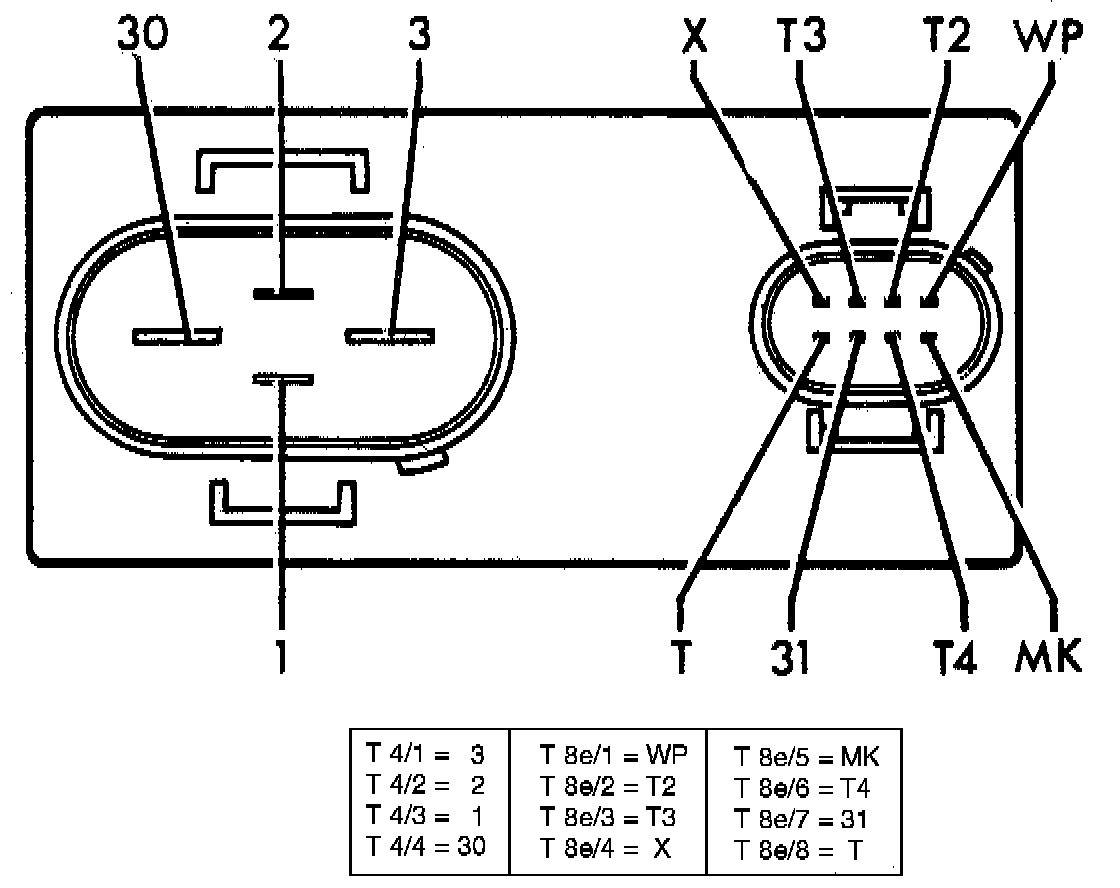

Connector terminal identification:

NOTE: See wiring diagram for wire routing to T 4 and T 8 connectors. Always refer to appropriate wiring diagram when performing any electrical tests or repairs.
