Multi-Function Indicator Switch, Checking

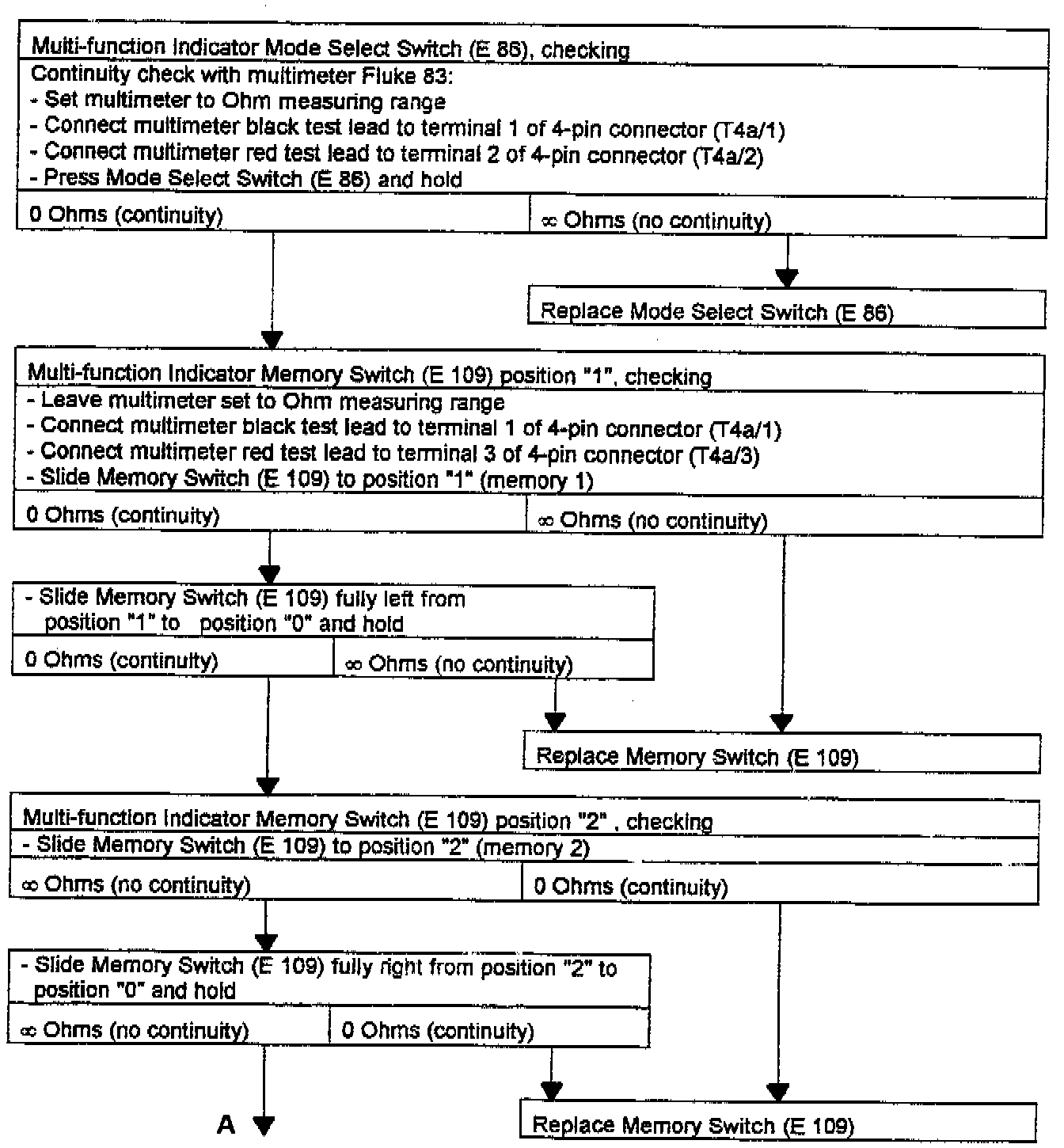

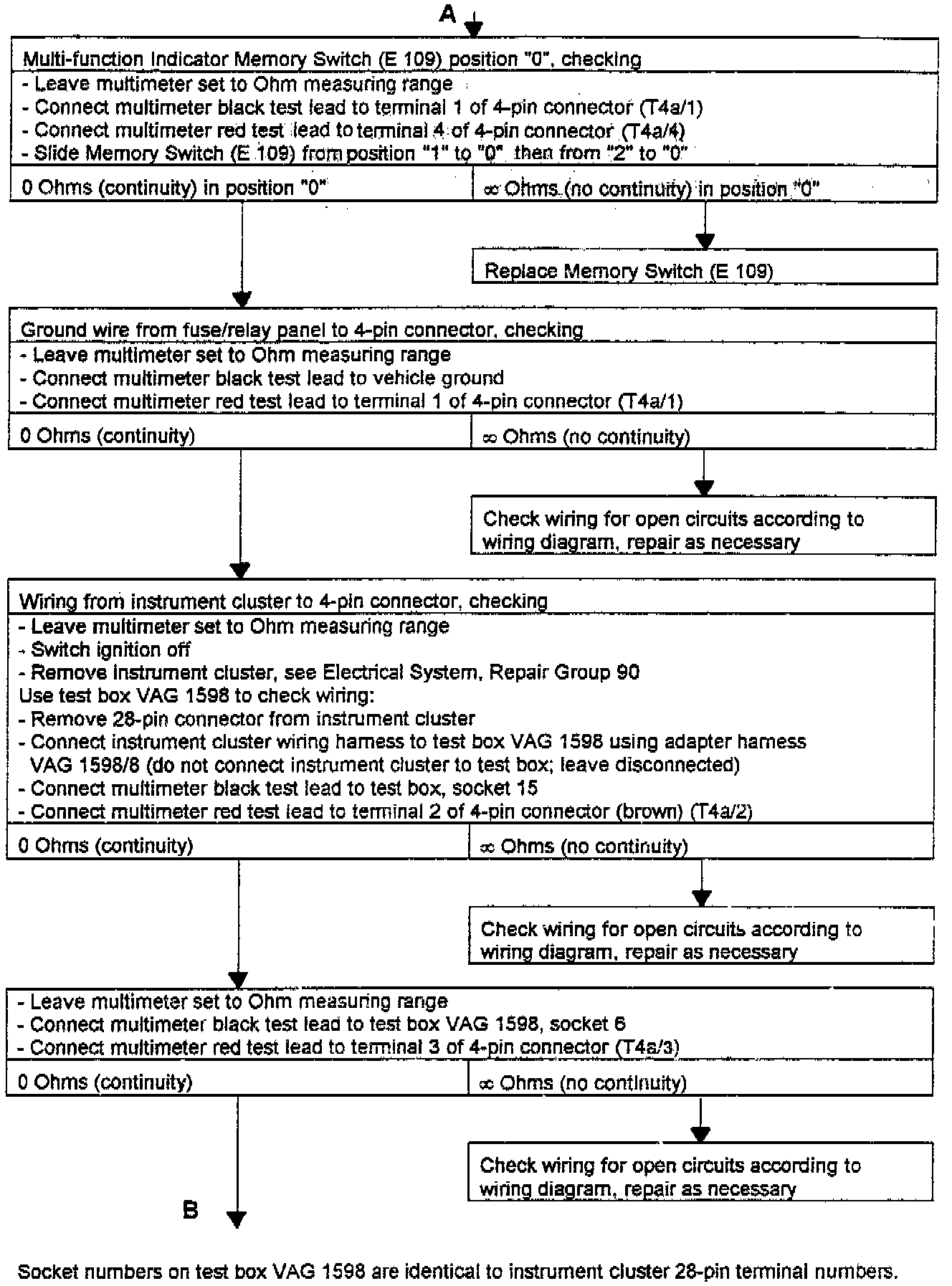

MULTI-FUNCTION INDICATOR MODE SELECT SWITCH (E 86), MEMORY SWITCH (E 109) AND WIRING, CHECKING
Tools required:
^
Multimeter Fluke 83 (US 1119)
^
Connector test kit VW 1594
^
Test box VAG 1598 with adapter harness VAG 1598/8
Troubleshooting preparations:
^
Separate 4-pin connector located behind steering column switch trim
^
Use valid wiring diagram to check wiring
