Outside Temperature Display, Checking

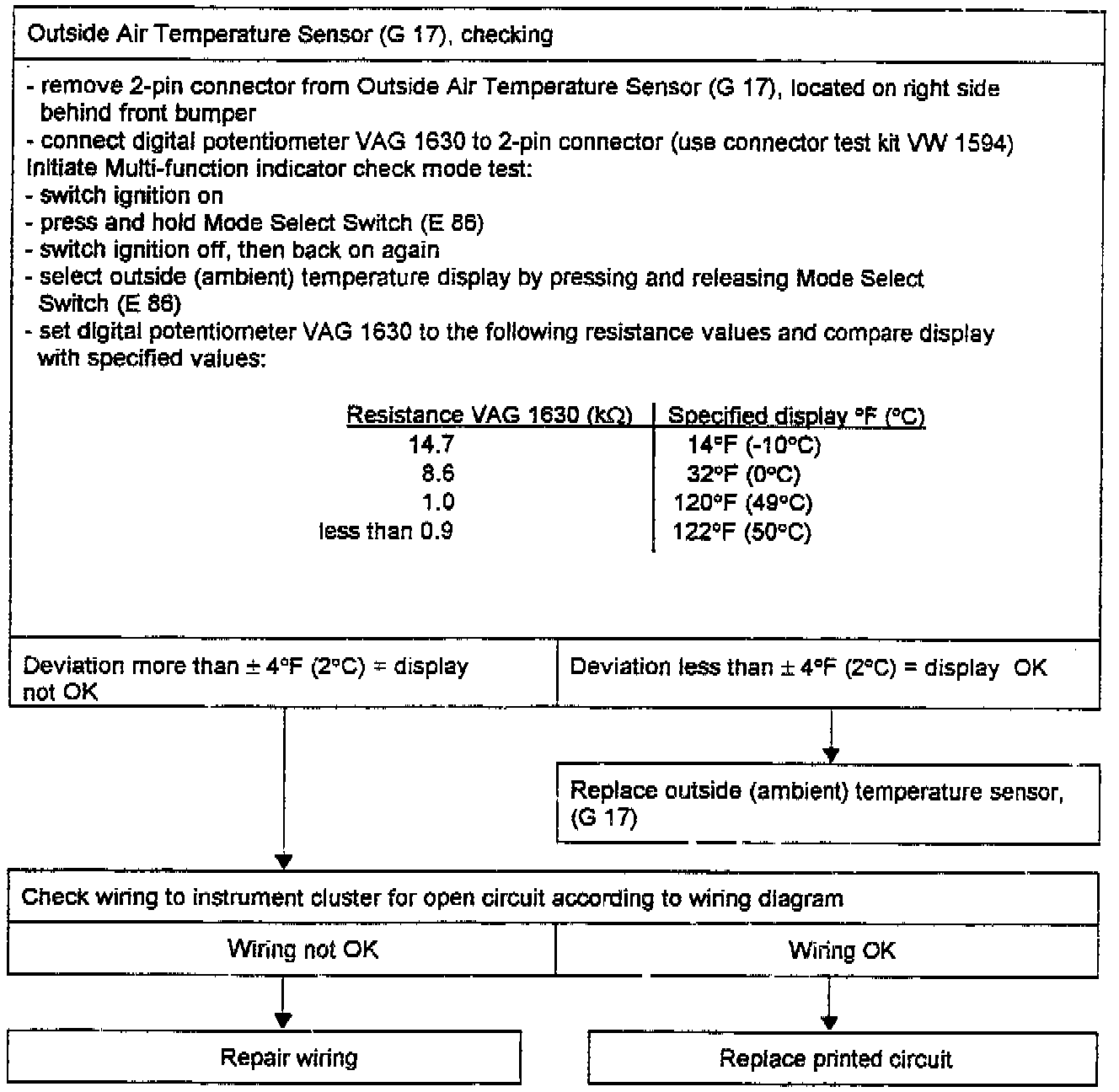

OUTSIDE (AMBIENT) TEMPERATURE DISPLAY, CHECKING

TOOLS REQUIRED:

^ Digital potentiometer VAG 1630
^ Connect test kit VW 1594

Note:
Display range for outside (ambient) temperature is from -40° F to 122° F (-40° C to 50° C). If temperature sensor is not connected "-40° " is displayed.
