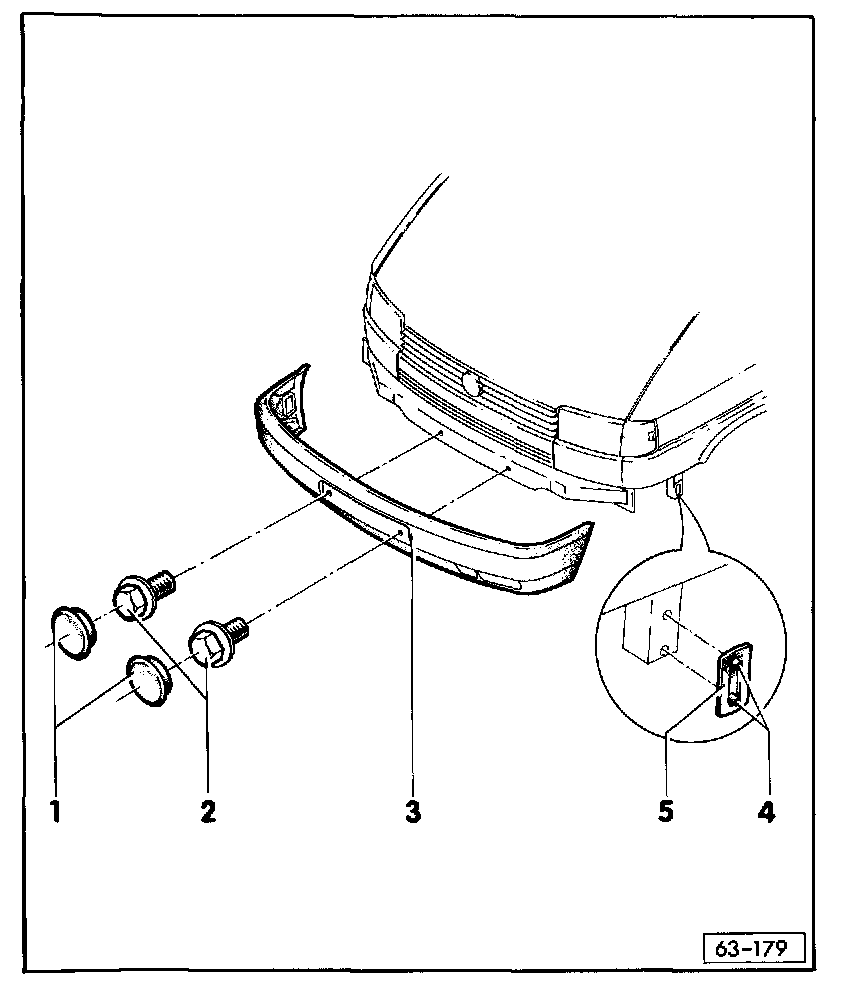

Front Bumper
1 - Cover 2 - Bolt w/washer -
10 Nm (7 ft lb) 3 - Front bumper -
Removing: Pull/drive pins -4- out and pull bumper parallel out of guides -5-
-
Installing: Slide
bumper parallel onto guides -5-, secure by driving in pins -4- flush
4 - Pin 5 - Guide
