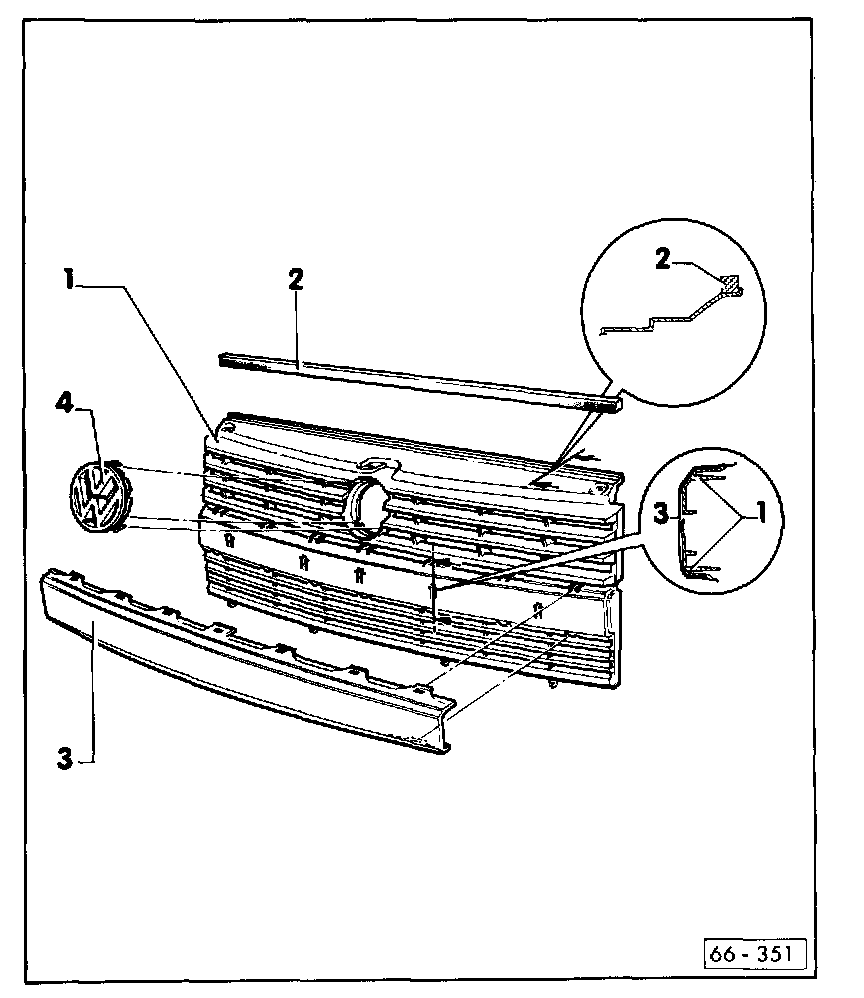

Grille
1 - Radiator grille -
Removing See 'Service and Repair.'
Service and Repair 2 - Seal -
Self-adhesive
3 - Trim -
Removing: remove radiator grille
See 'Service and Repair.'
Service and Repair and unclip from back side.
4 - Emblem -
Fastened with clip
