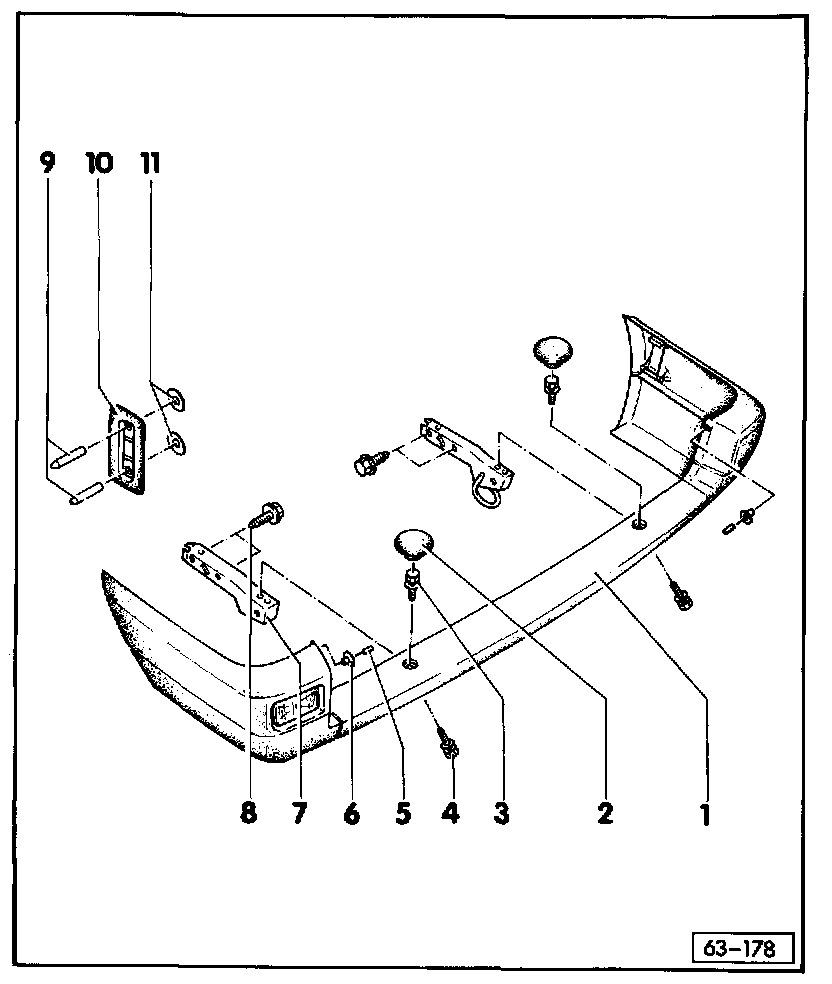

Rear Bumper
1 - Rear bumper 2 - Cover 3 - Bolt w/washer -
15 Nm (11 ft lb) 4 - Bolt w/washer -
15 Nm (11 ft lb) 5 - Pin -
Replacement part includes -5- and -6-
6 - Expanding clip -
Replacement pan includes -5- and -6-
7 - Bumper bracket 8 - Bolt w/washer -
110 Nm (81 ft lb) 9 - pin 10 - Guide -
To remove and install push in or slide out bumper parallel from guide (left and right)
11 - Sealing washer
