Rear Axle Toe

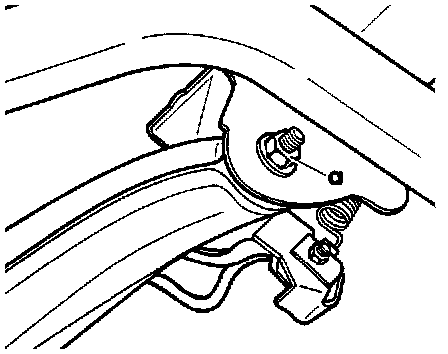

^ Loosen nut -a- on control arm.

^ Move control arm forward or backward until specification is achieved (vehicle standing on its wheels).

Note:
If it is necessary to correct the toe setting at the rear wheels, check the brake pressure regulator setting or adjust the brake pressure regulator if necessary.
