Ride Height
MEASURING/ADJUSTING AT FRONT AXLE ^
Vehicle must be standing on its
wheels.
^

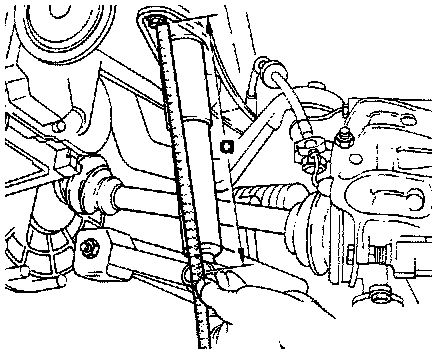

The dimension -a- is measured from the upper shock absorber mounting bolt head to the center of the lower shock absorber bolt. If necessary, adjust to the prescribed height by turning the nut on the torsion bar tensioning lever.
Note: For ease of illustration, the vehicle is shown raised and without a wheel.
