Transmission Specifications and Clearances

Eurovan Automatic Transmission Specification

Transmission 01P Information Fallowing 098

Transmission 098

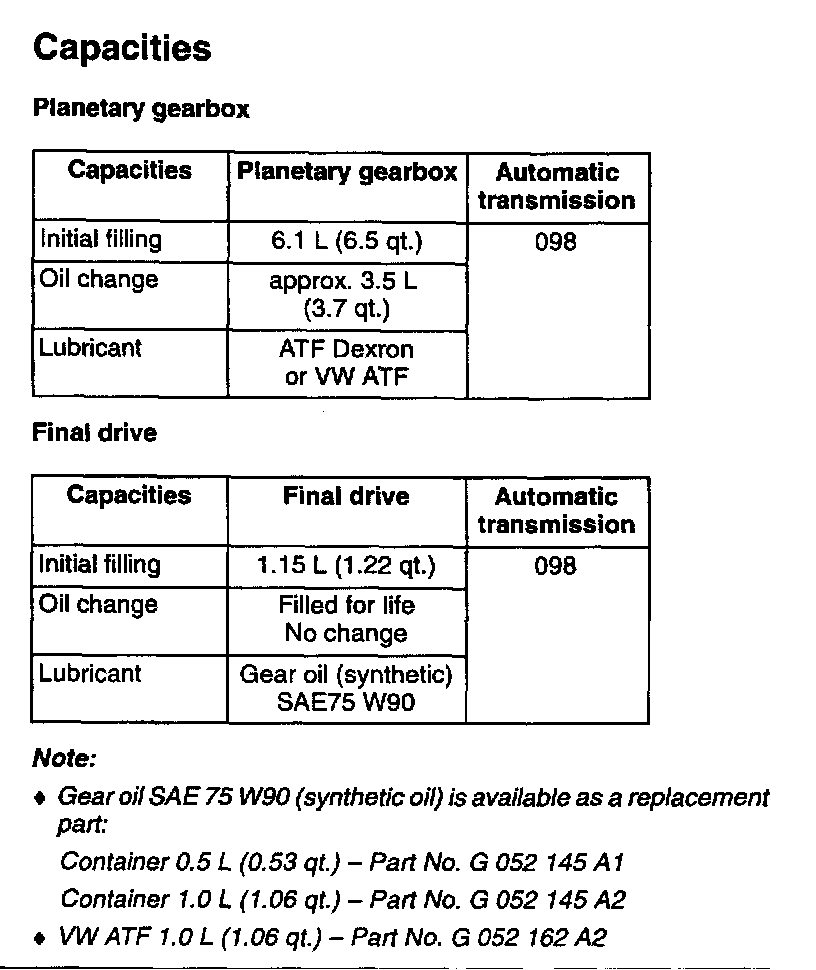

Capacities:

Transmission Applications:

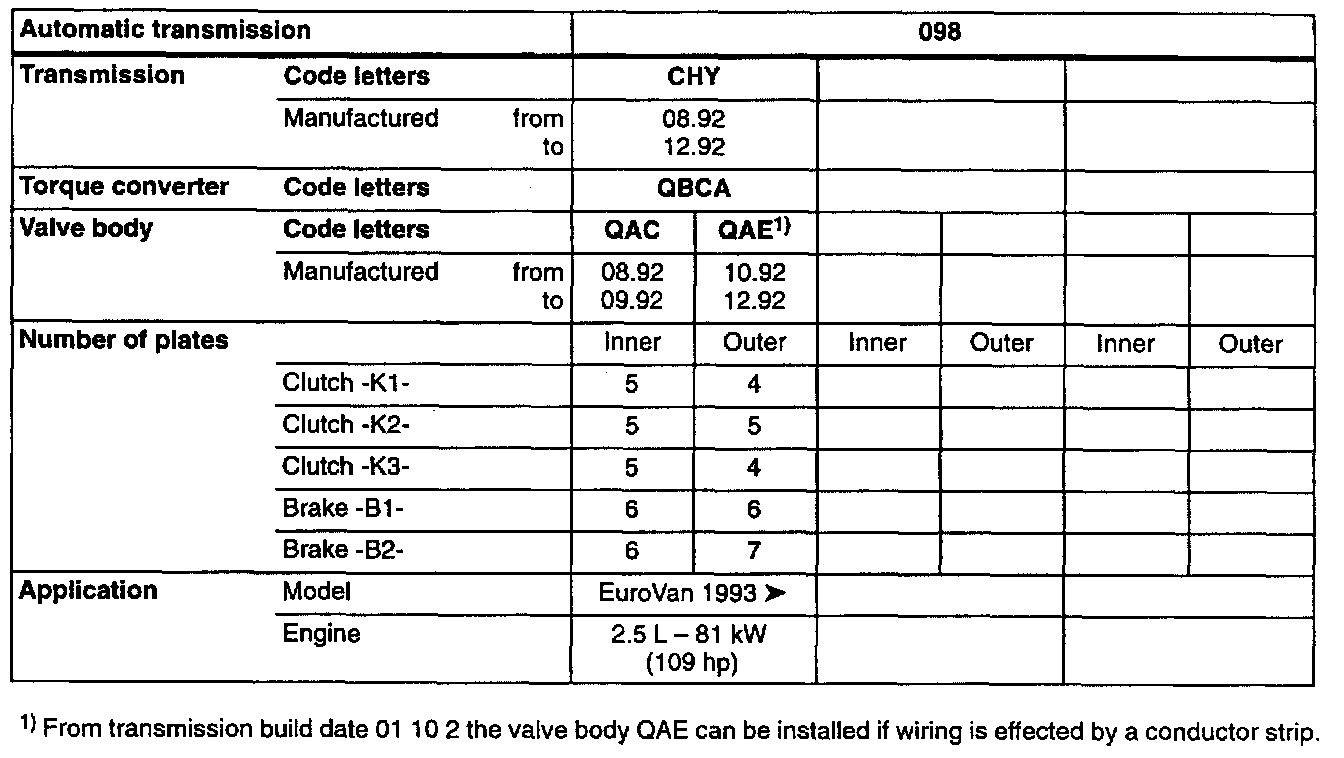

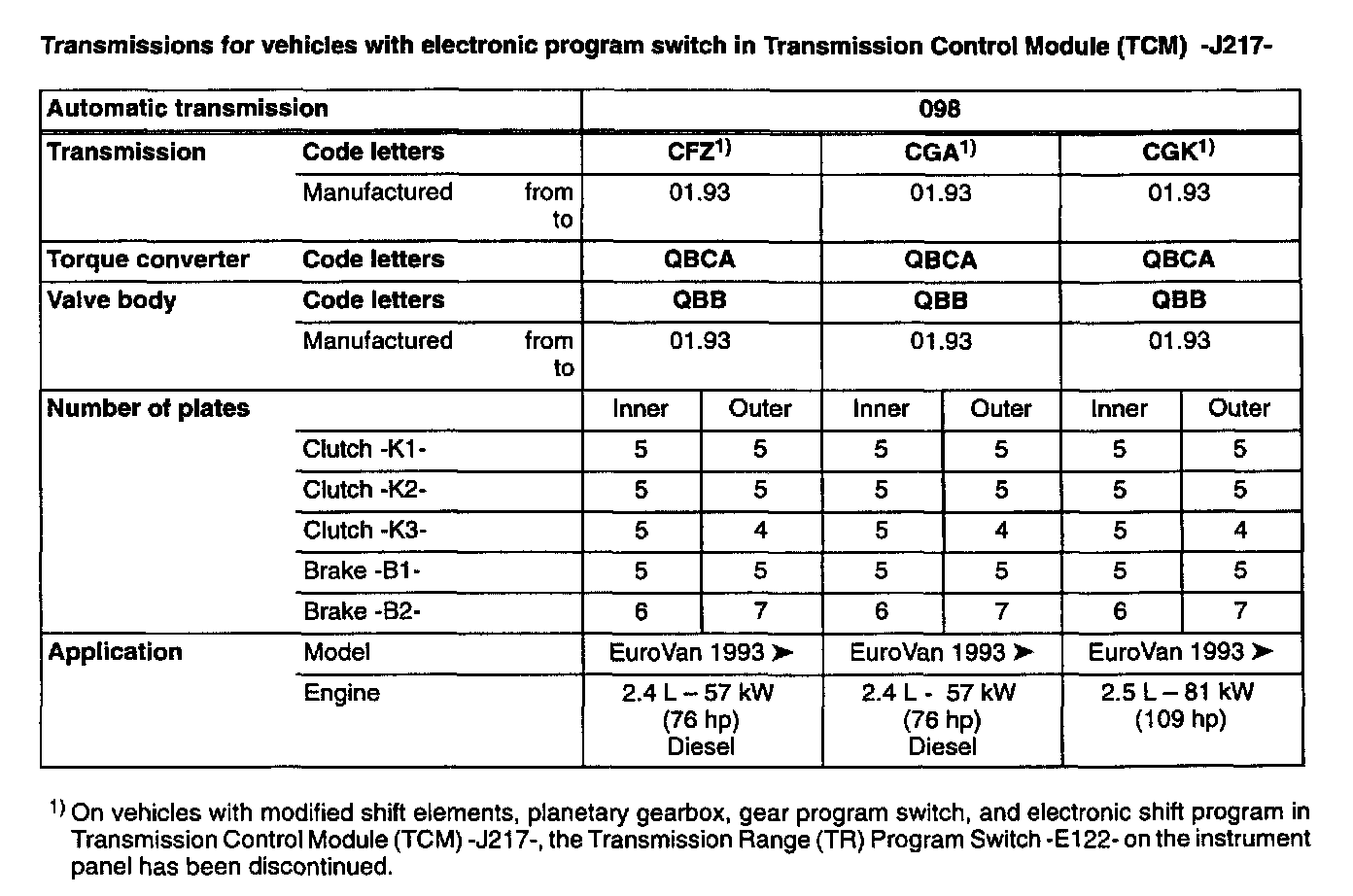

Code Letter Specifications:

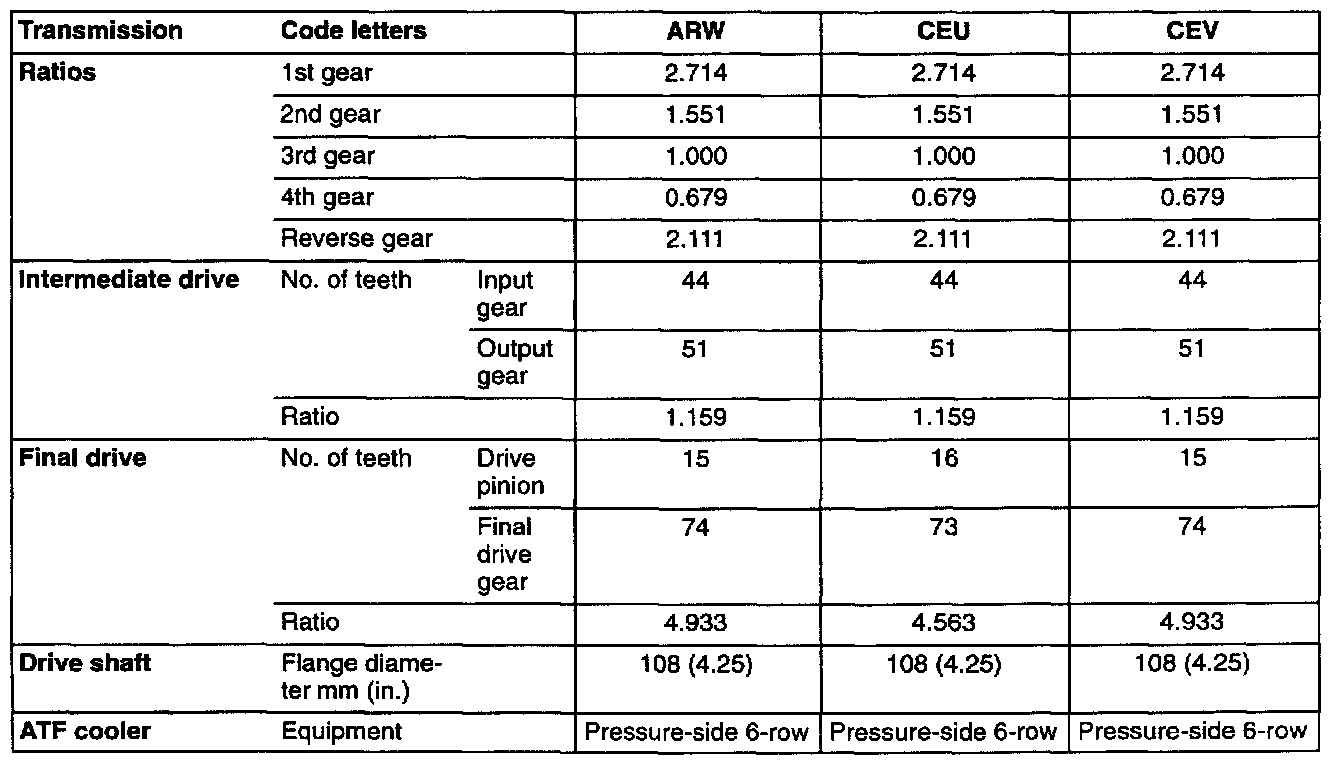

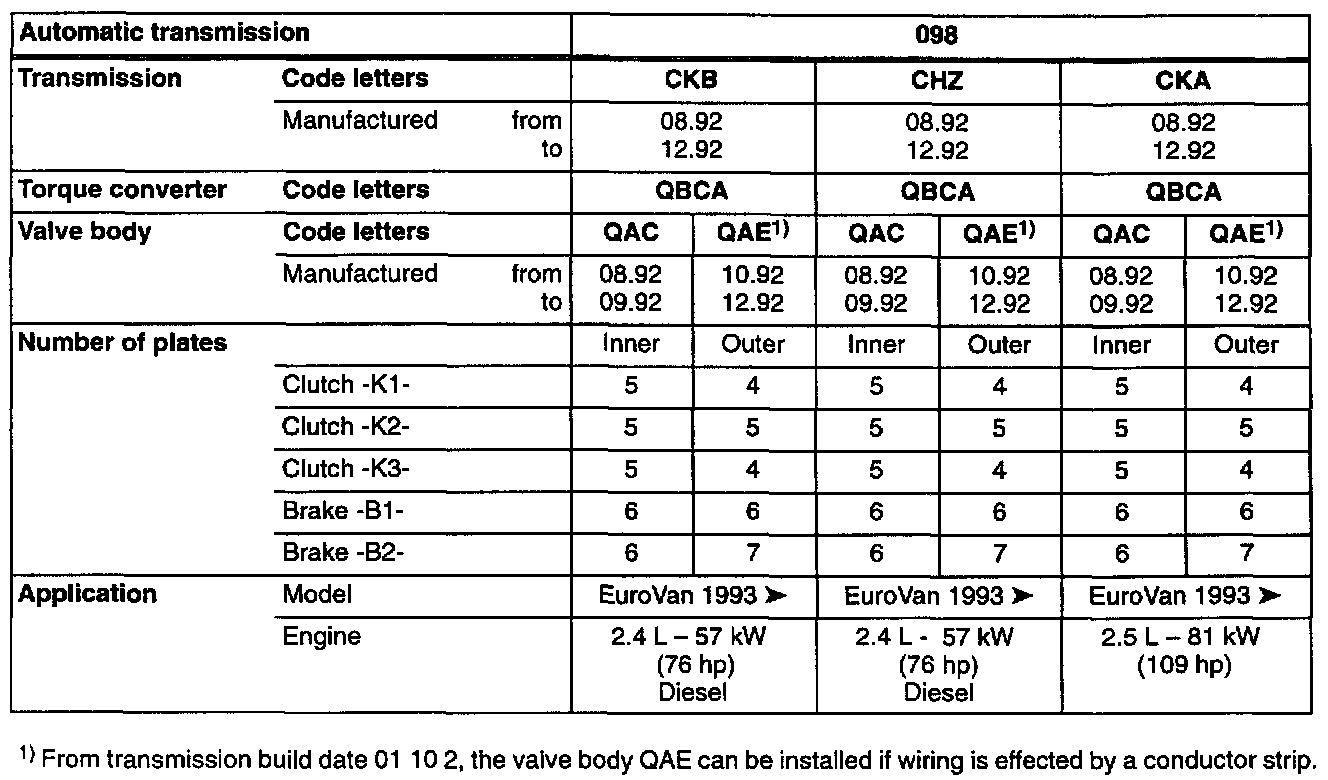

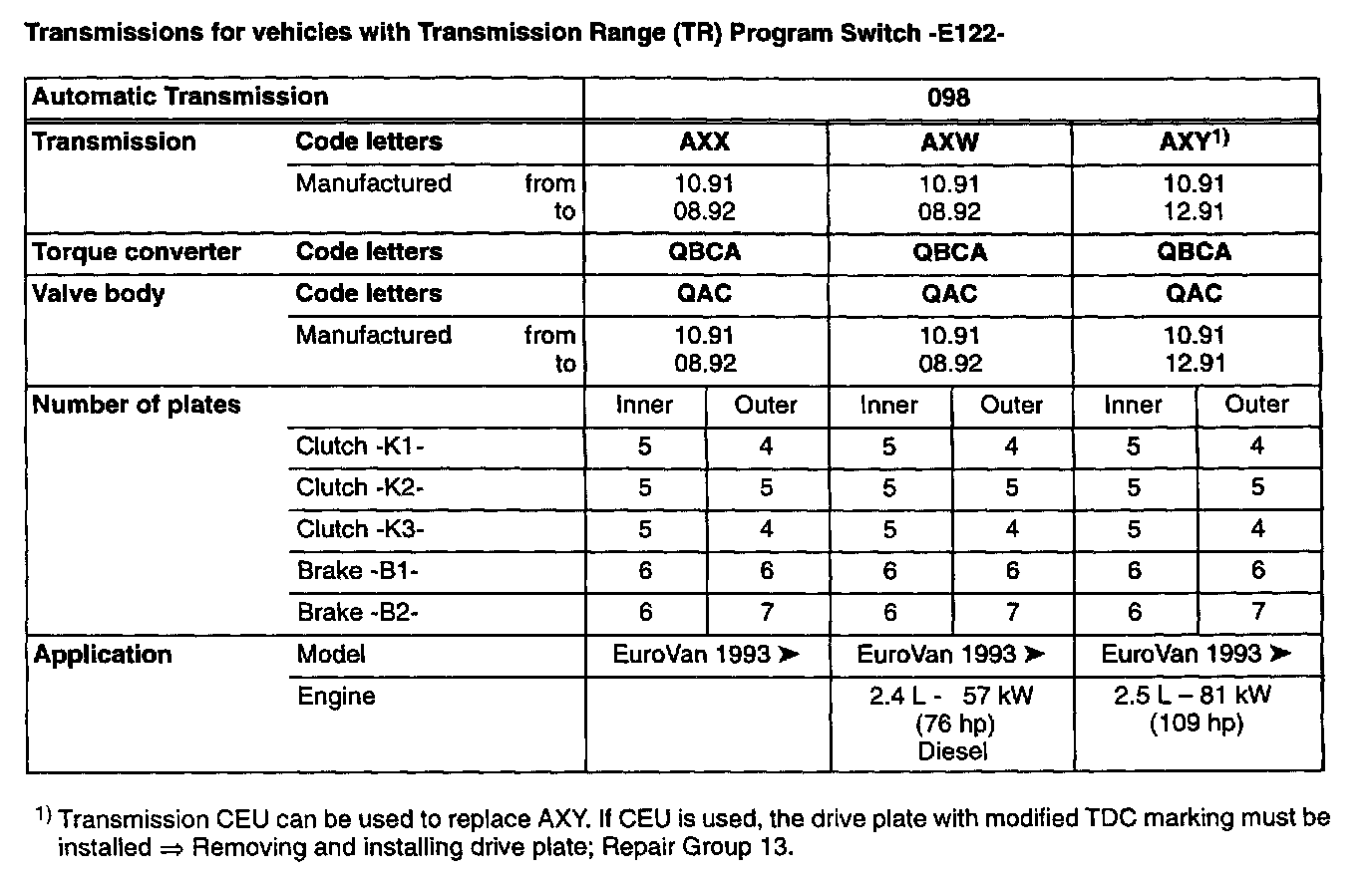

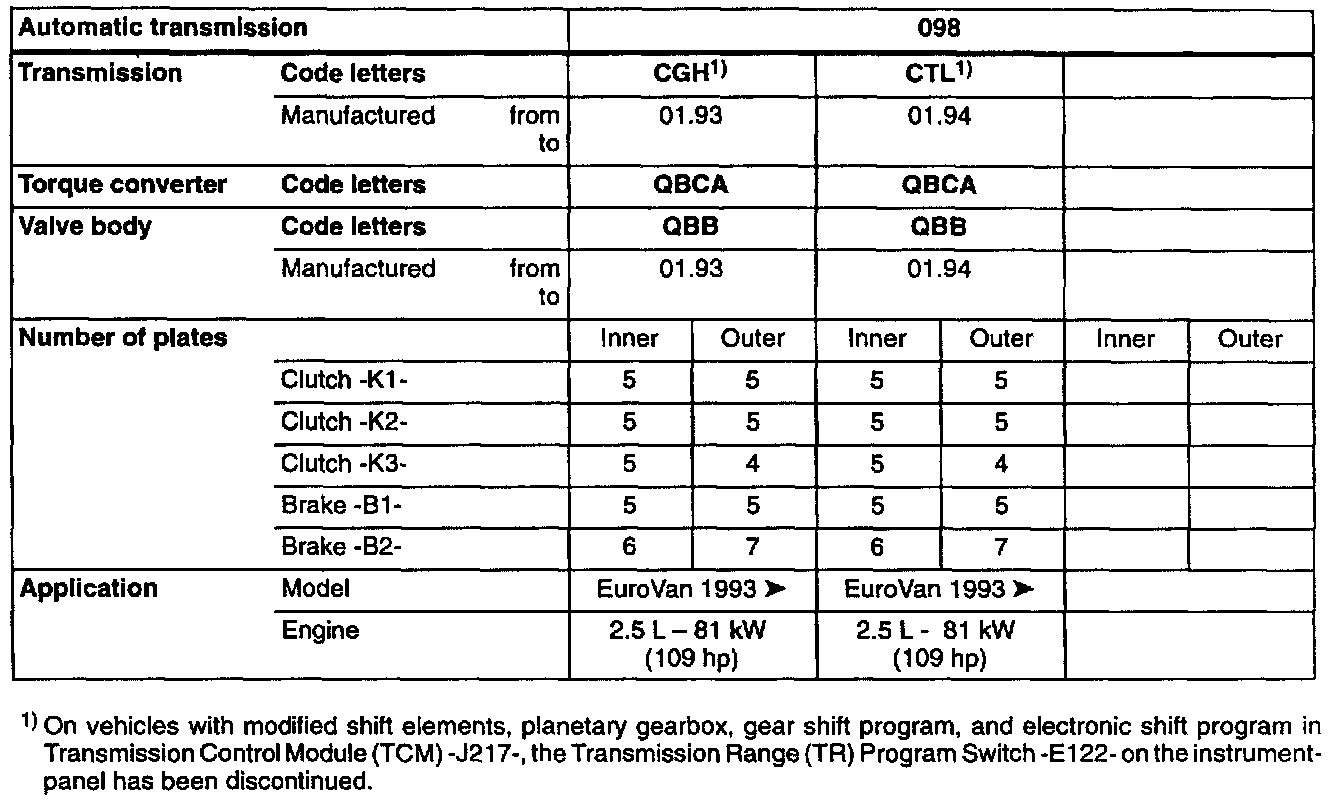

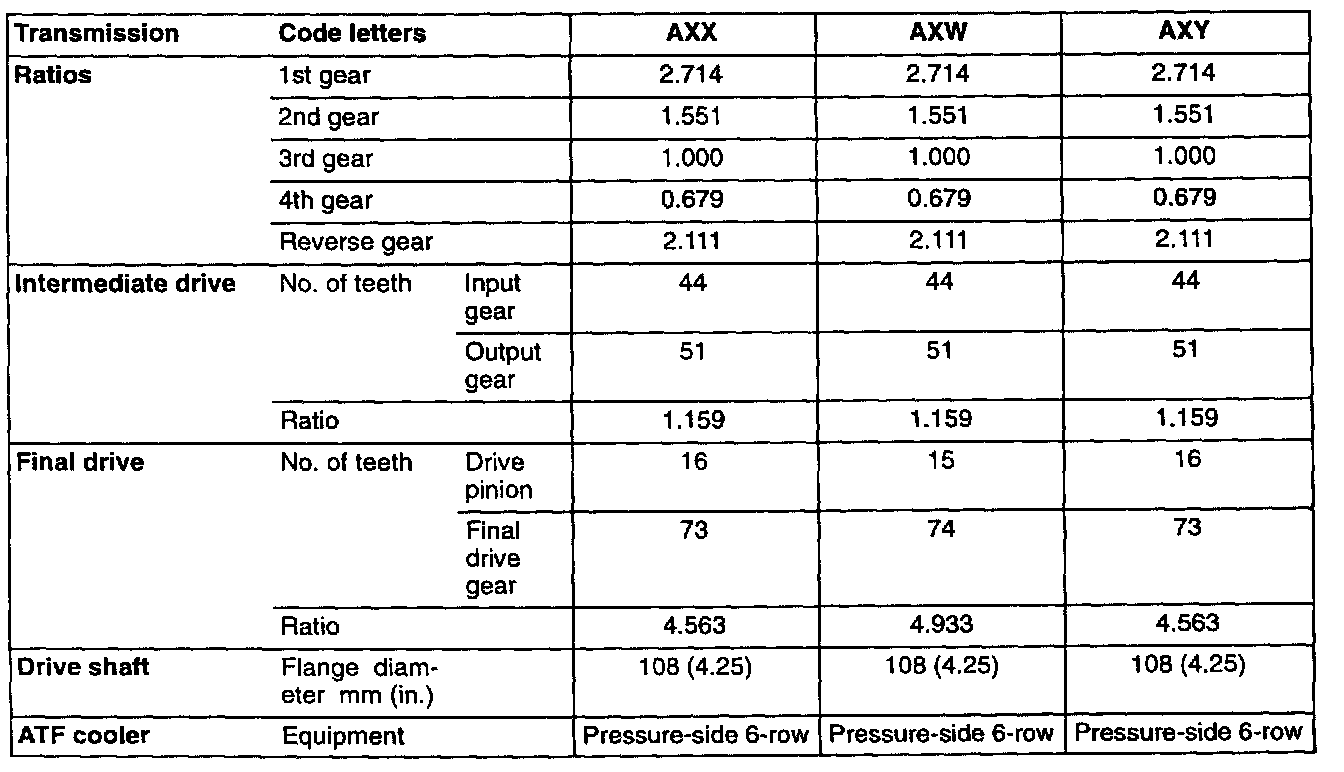

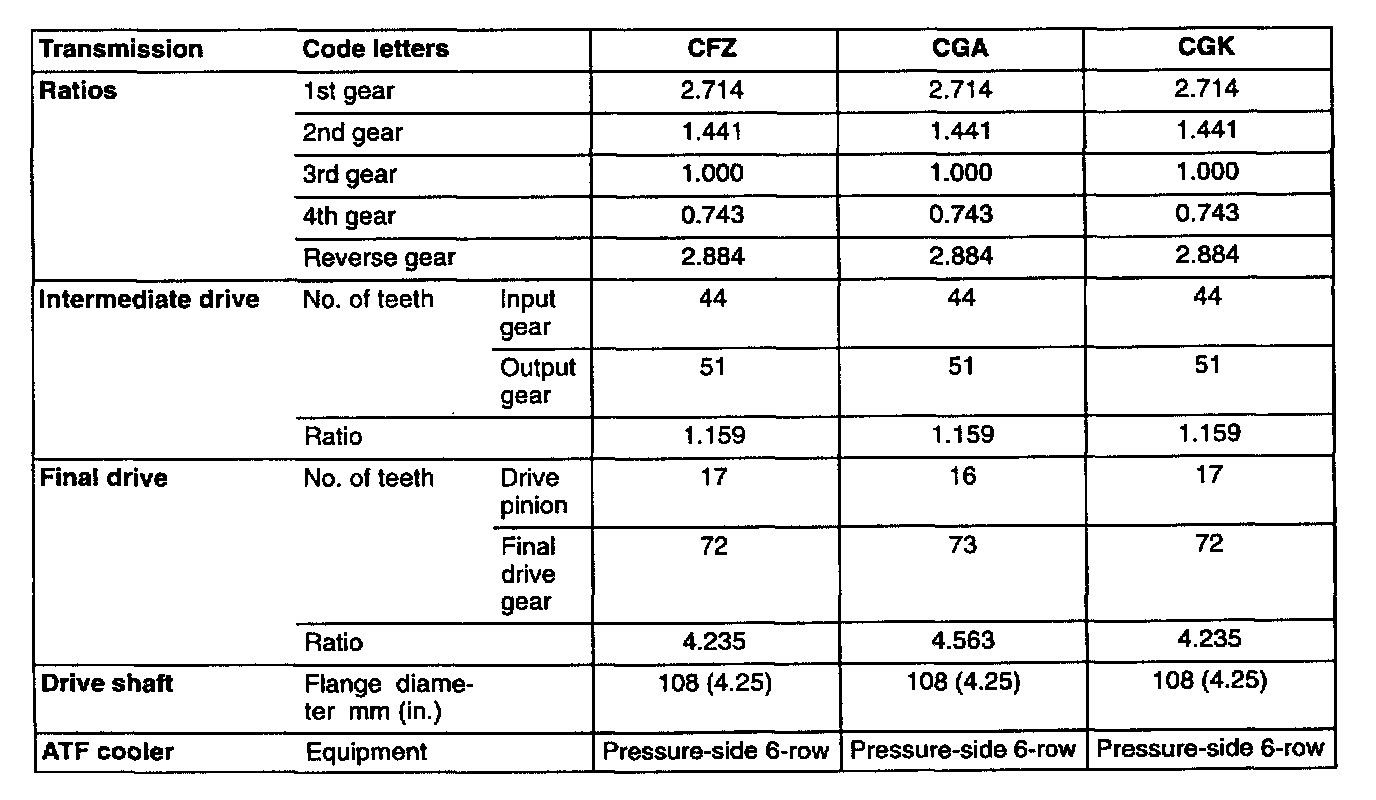

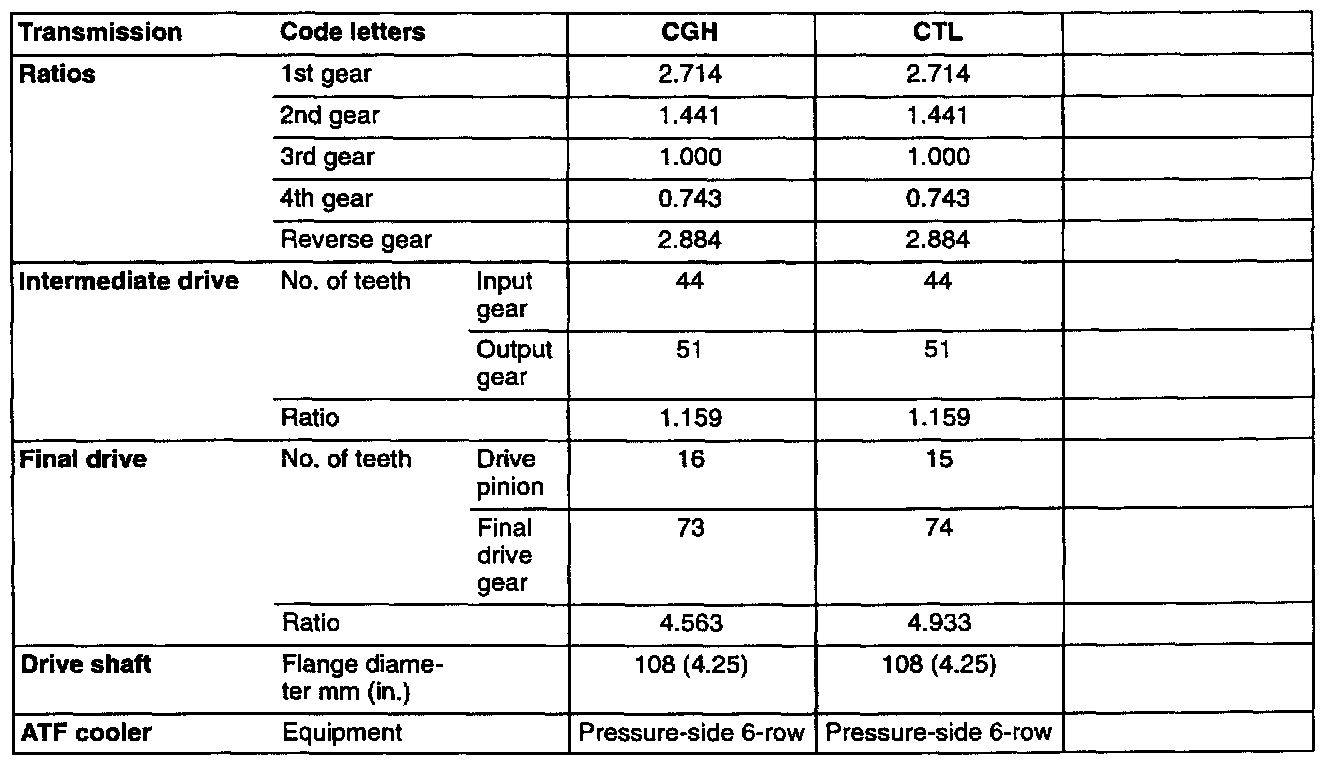

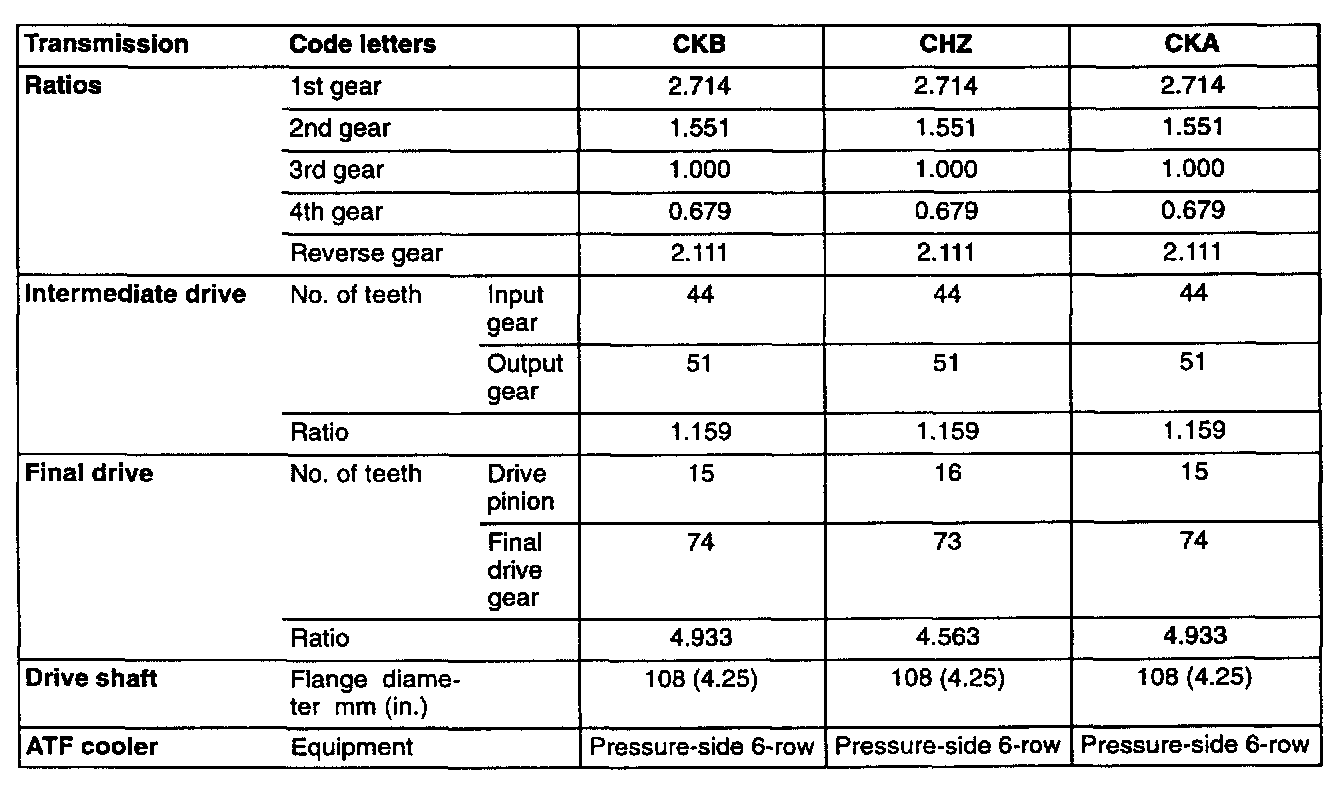

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

Transnission shift points

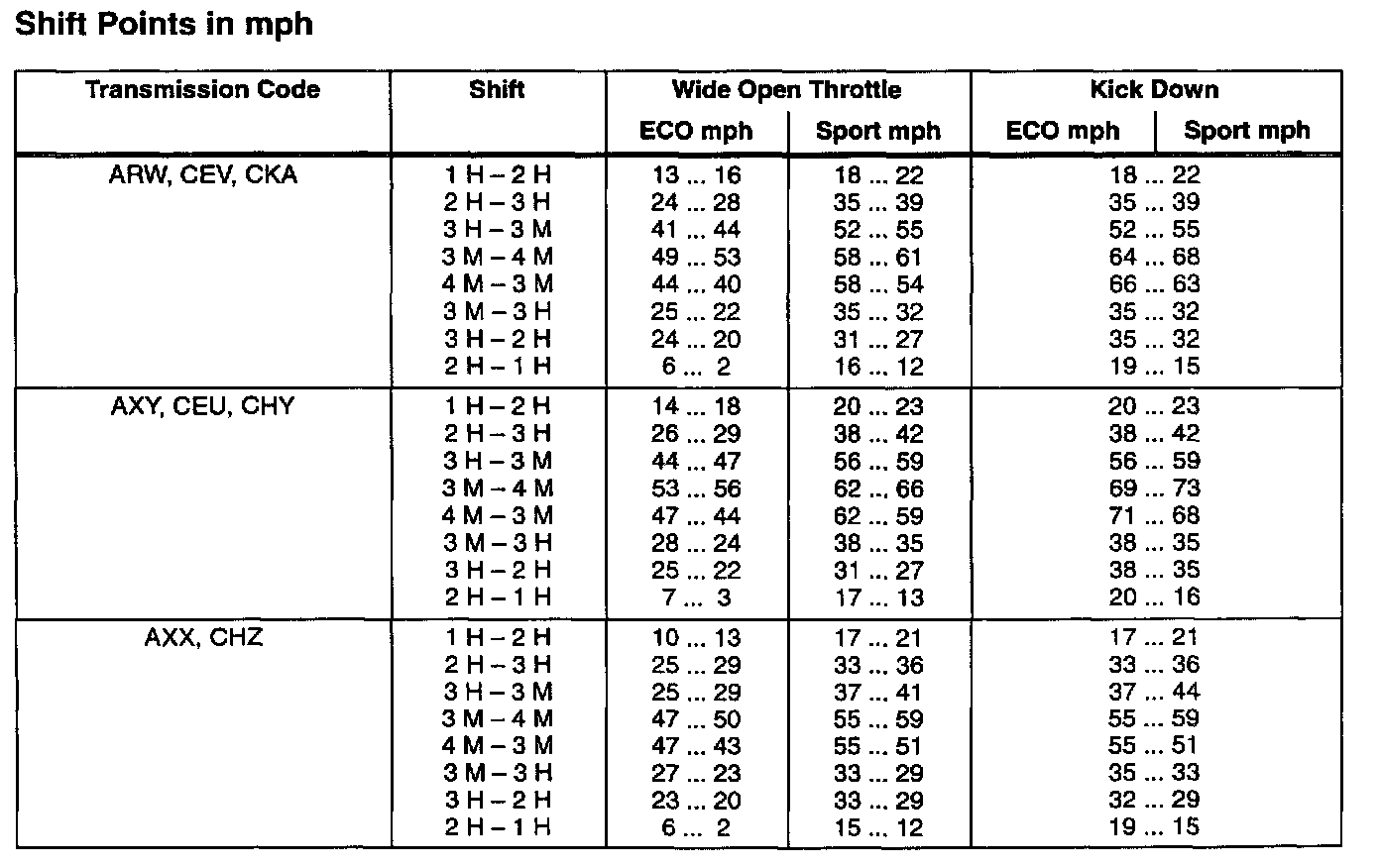

Shift Points:

Shift Points Type AXW,CKB:

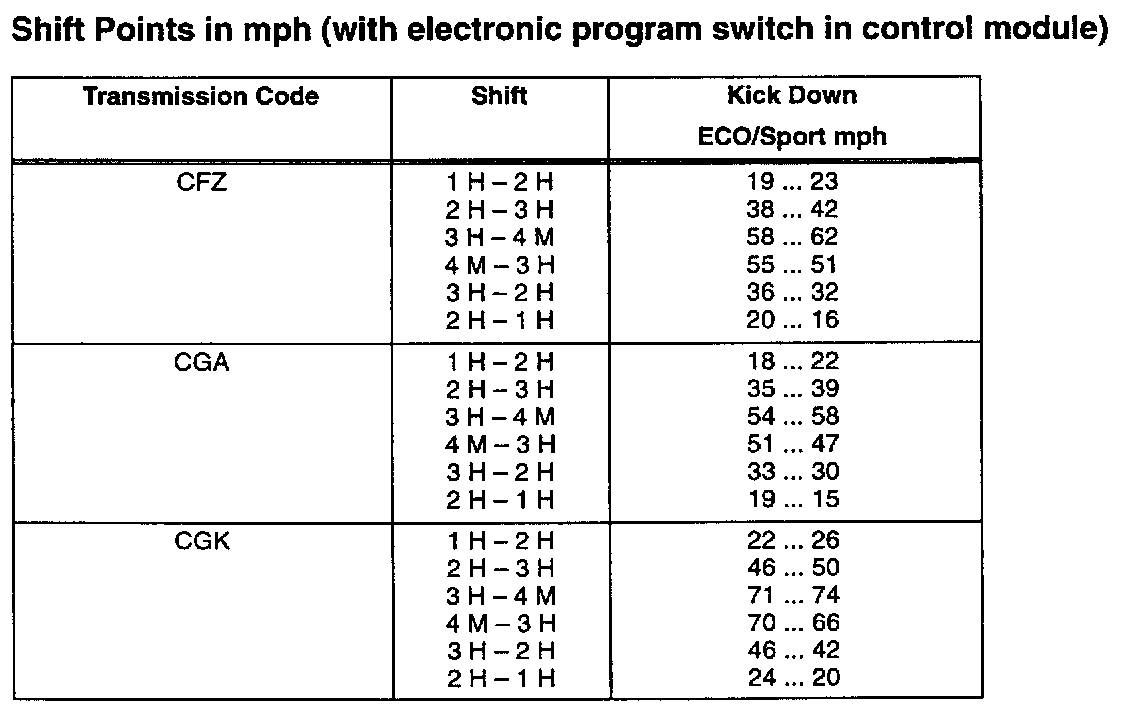

Shift Points Types, CFZ,CGA,CGK:

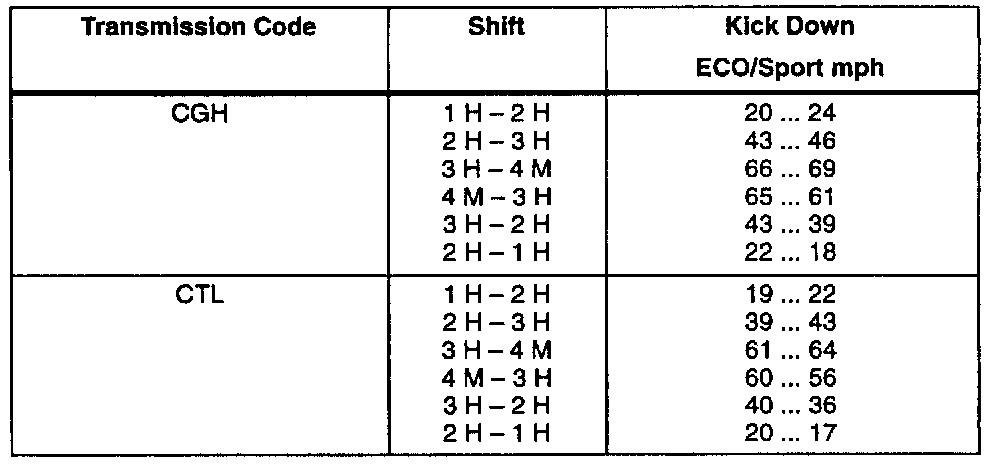

Shift Points Types, CGH,CTL:

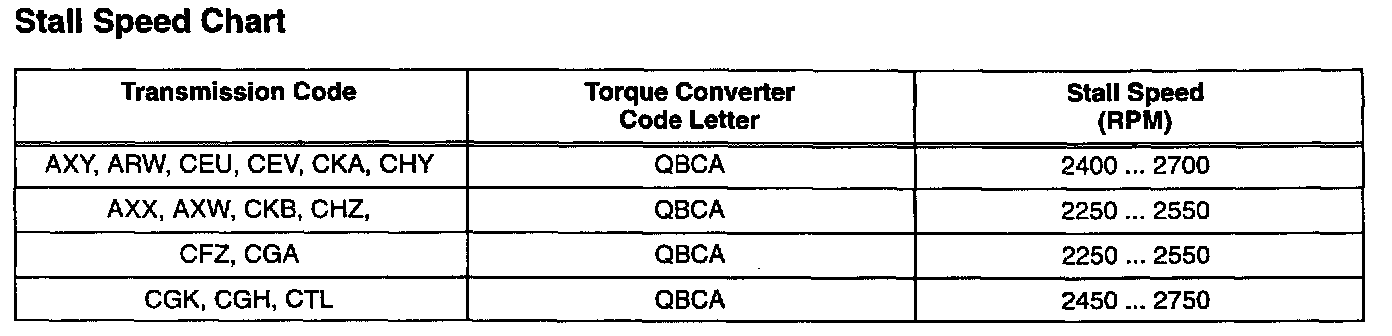

Stall Speed Chart

Stall Speed Chart:

Gear Selector Elements

Gear Selector Elements Up To 12.92:

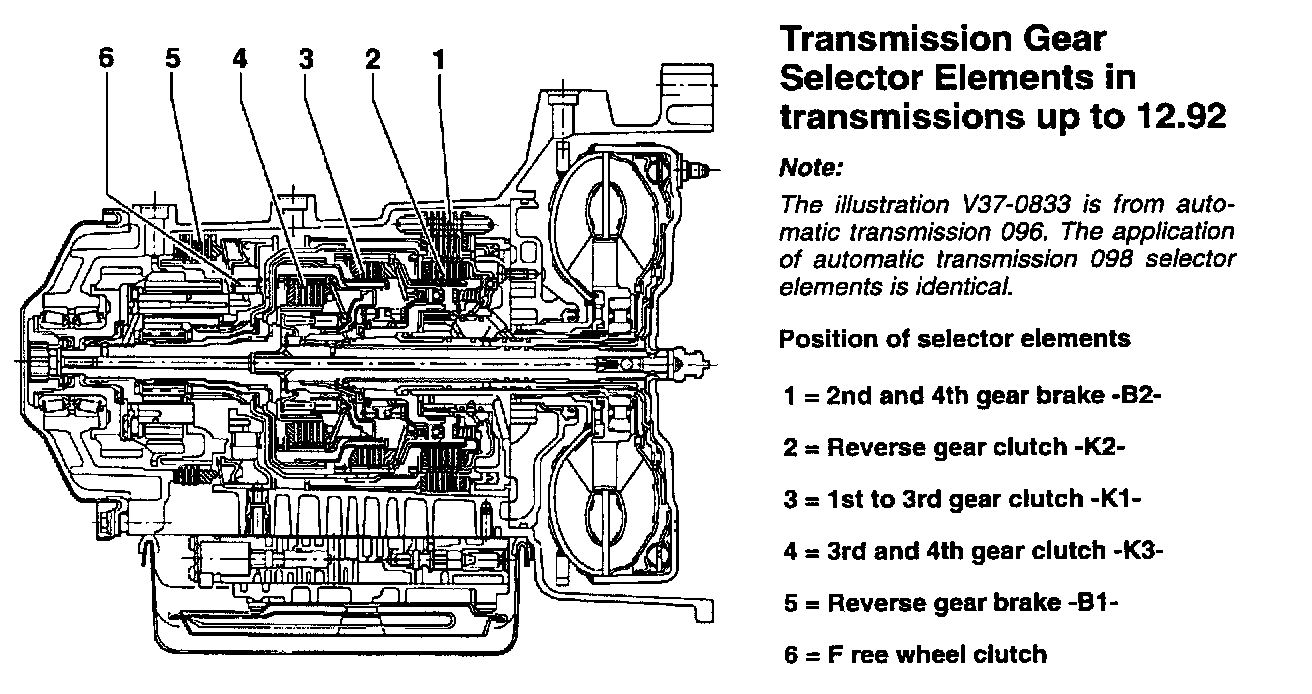

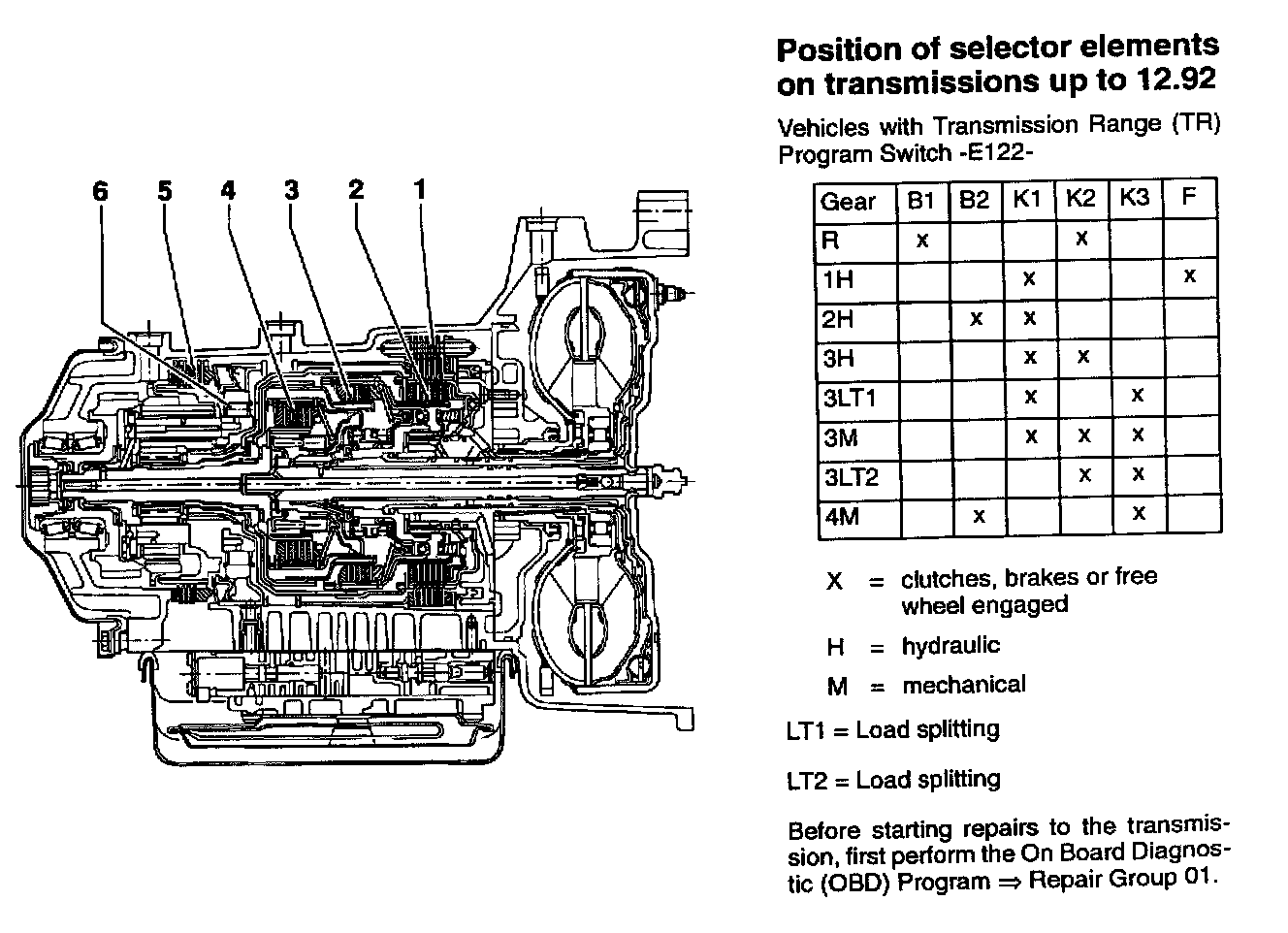

Position Of Selector Elements Up To 12.92:

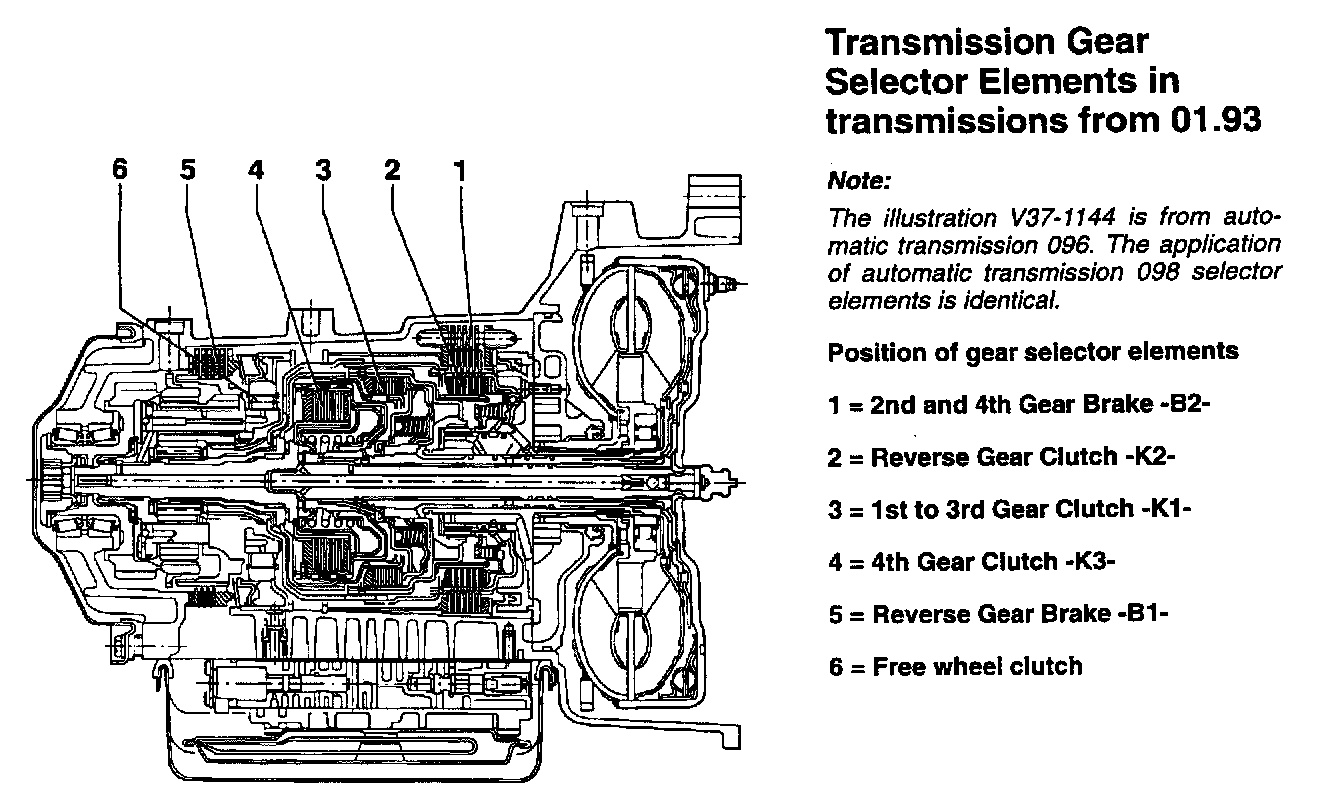

Selector Elements From 01.93:

Position Of Shift Elements, From 01.93:

Automatic Transmission 01P

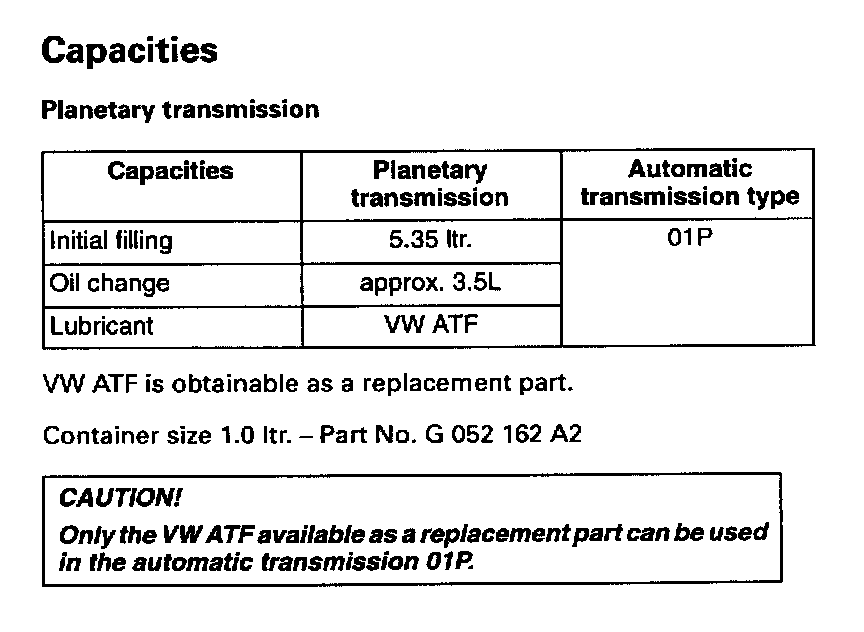

Capacities:

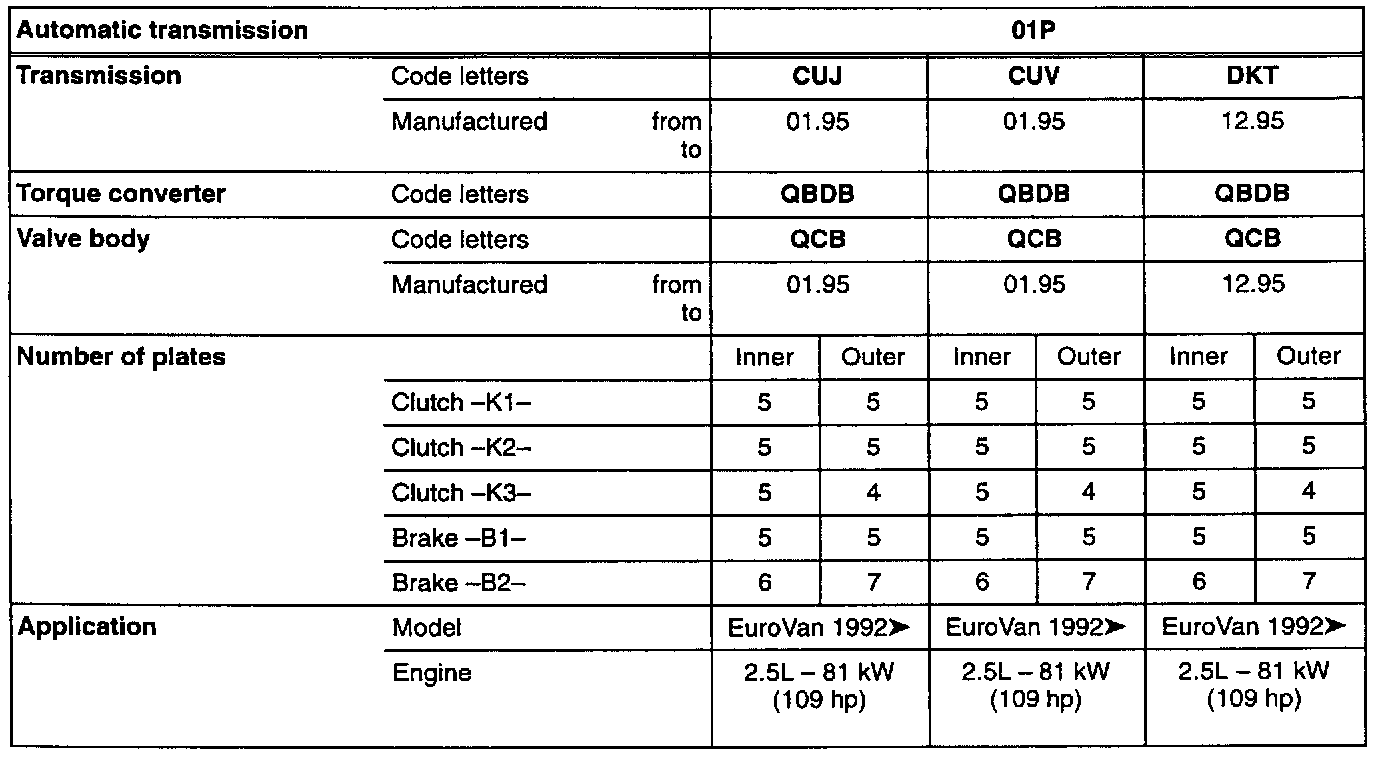

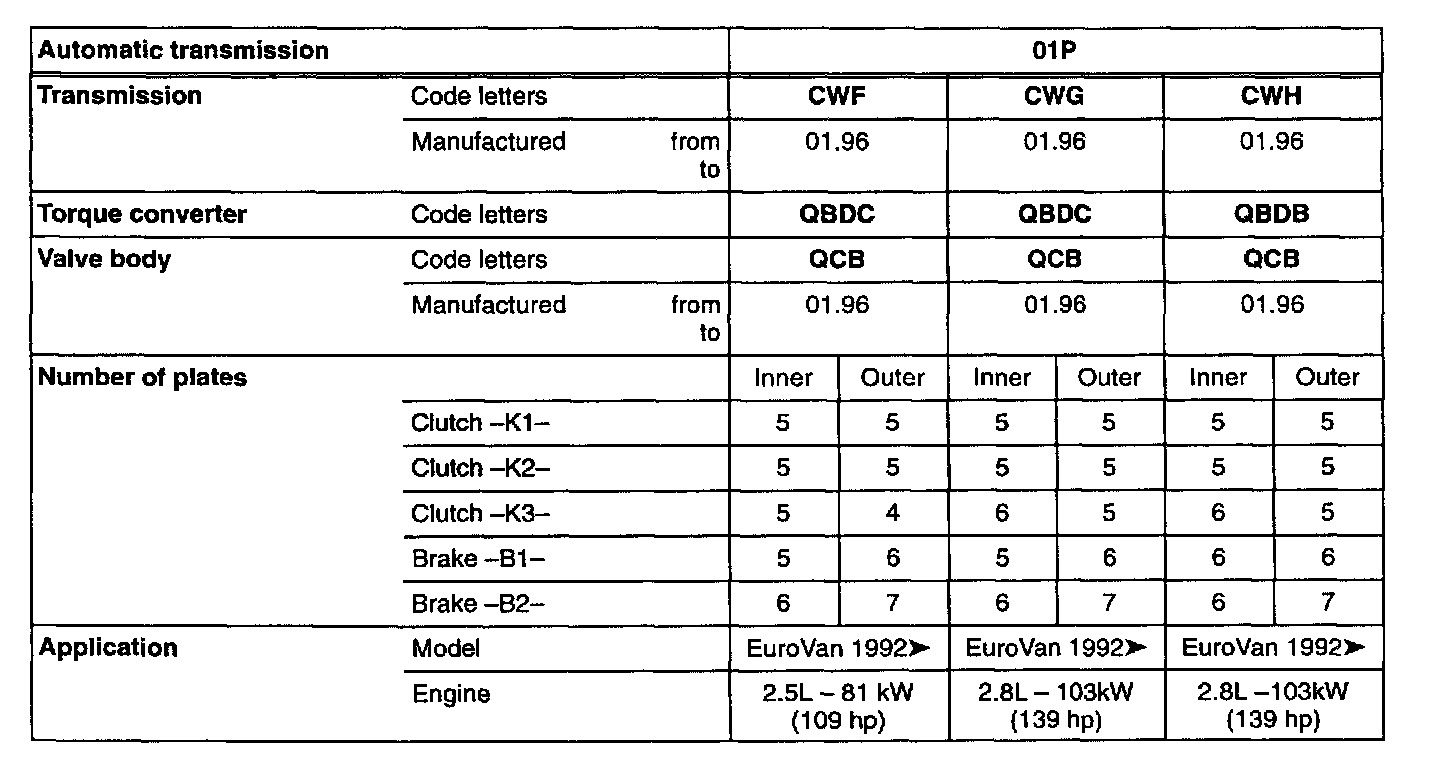

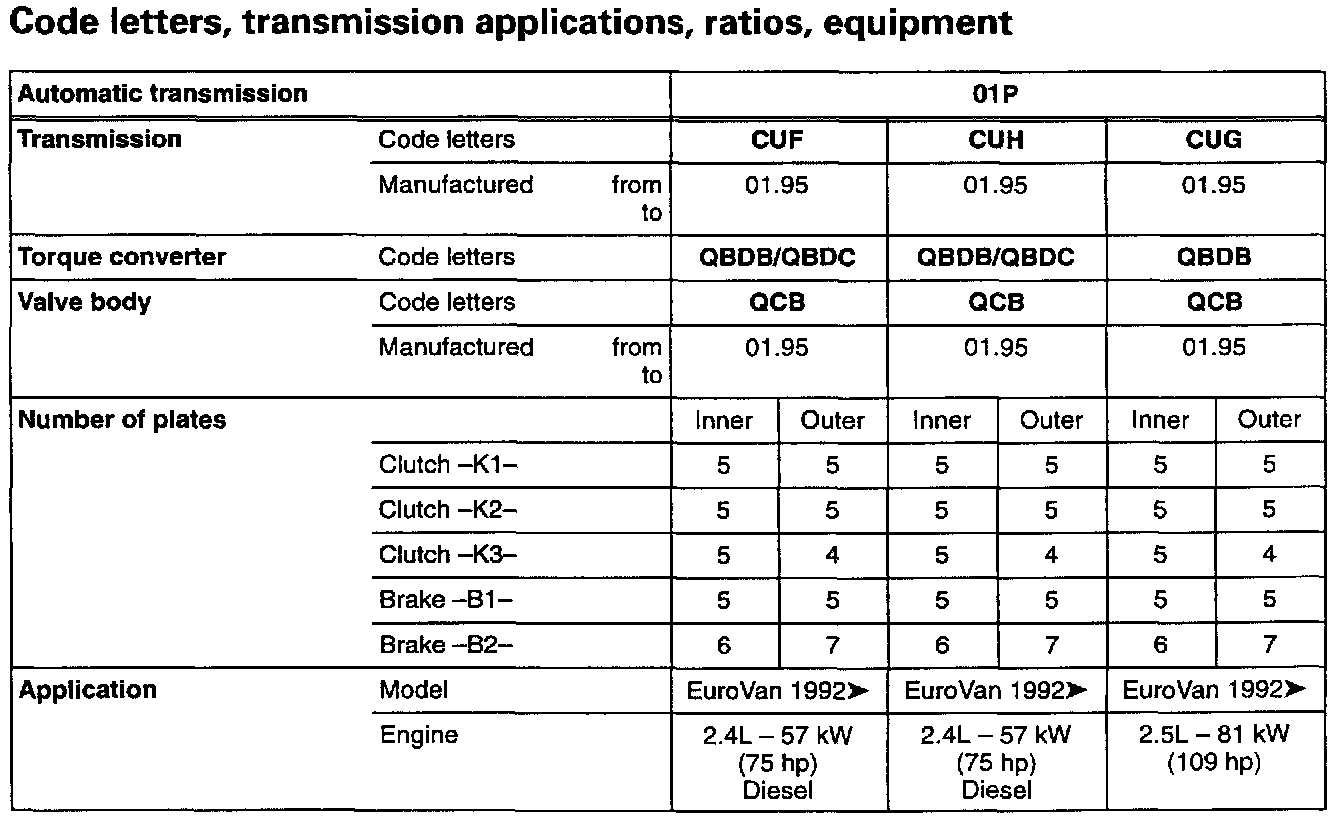

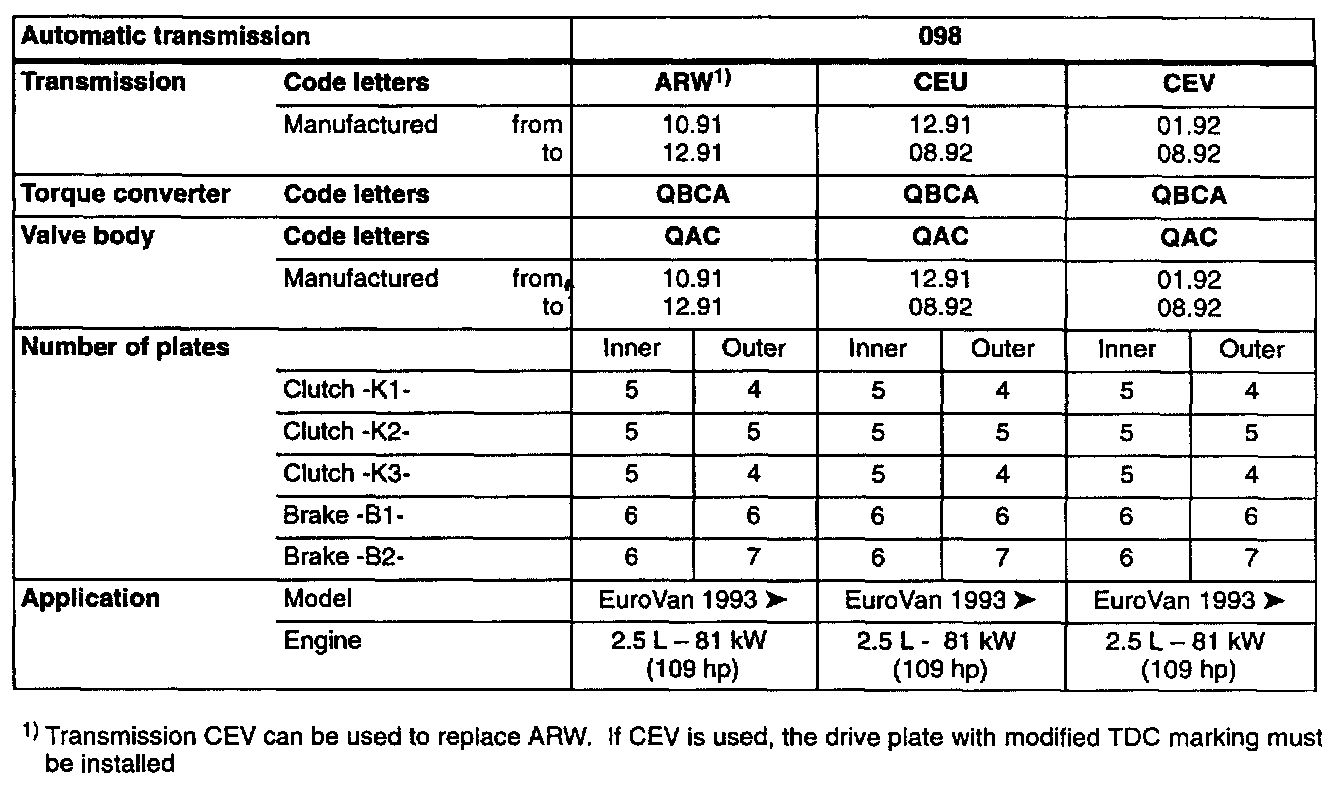

Code Letters And Applications:

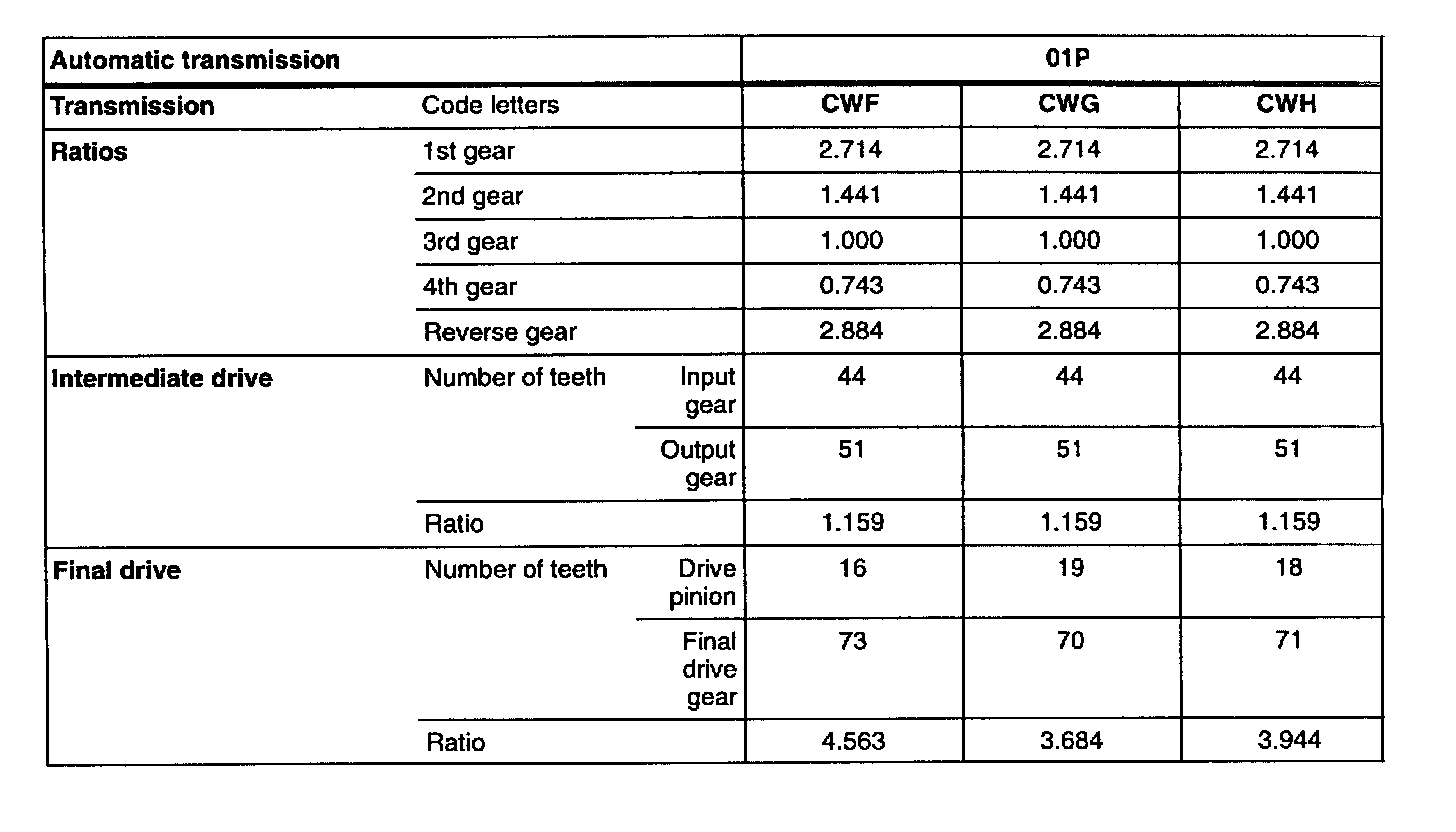

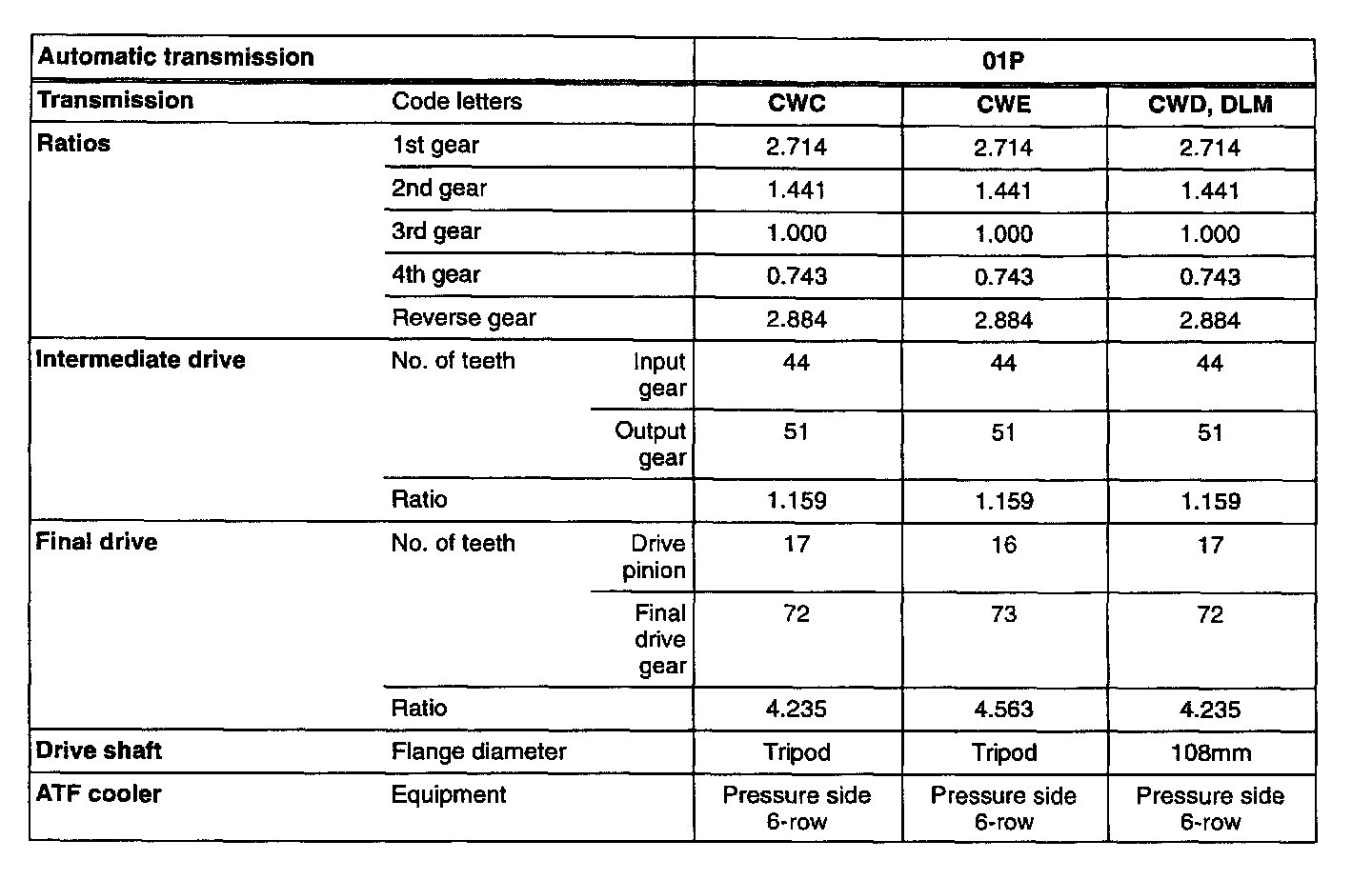

Specifications:

Specifications:

Specifications:

Specifications:

Transmission Specifications:

Transmission Specifications:

Transmission Specifications:

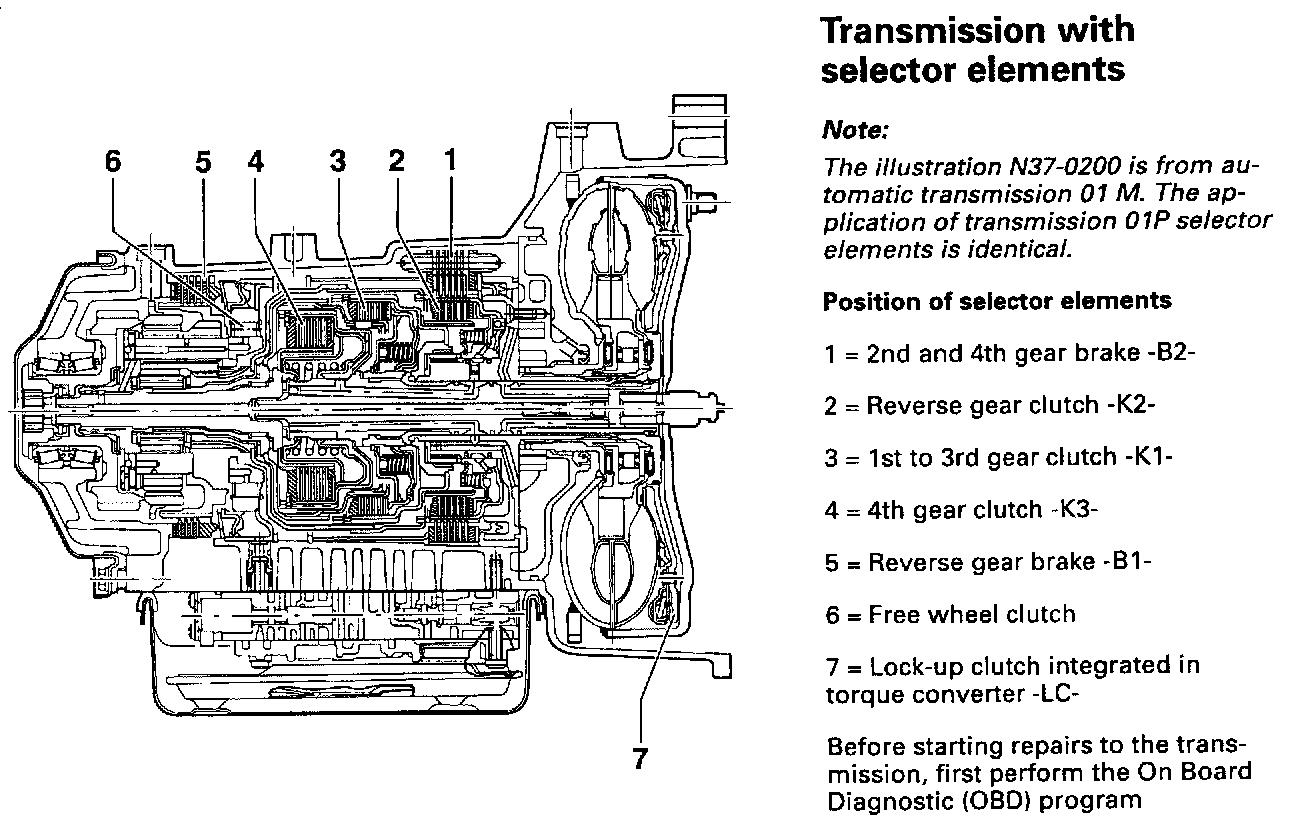

Position Of Selector Elements (01P):
