Power Windows, Left and Right Front, Checking



Tools required:
- Digital multimeter Fluke 83 (US 1119)

CAUTION: DO NOT damage, enlarge or bend connector terminals or cavities by forcing probes into them when performing electrical checks. Use Connector Test Kit VW 1594 to make the necessary electrical connections.

- Connector Test Kit VW 1594
- Applicable wiring diagram





Test conditions:
- Battery voltage OK
- Circuit breaker S 43 OK
- Fuse S 14 on fuse/relay panel OK
- Power windows mechanically OK

NOTE:
- Use Connector Test kit VW 1594 to make all necessary electrical connections.
- For terminal designation of 32-point connector in A-pillar left or right,

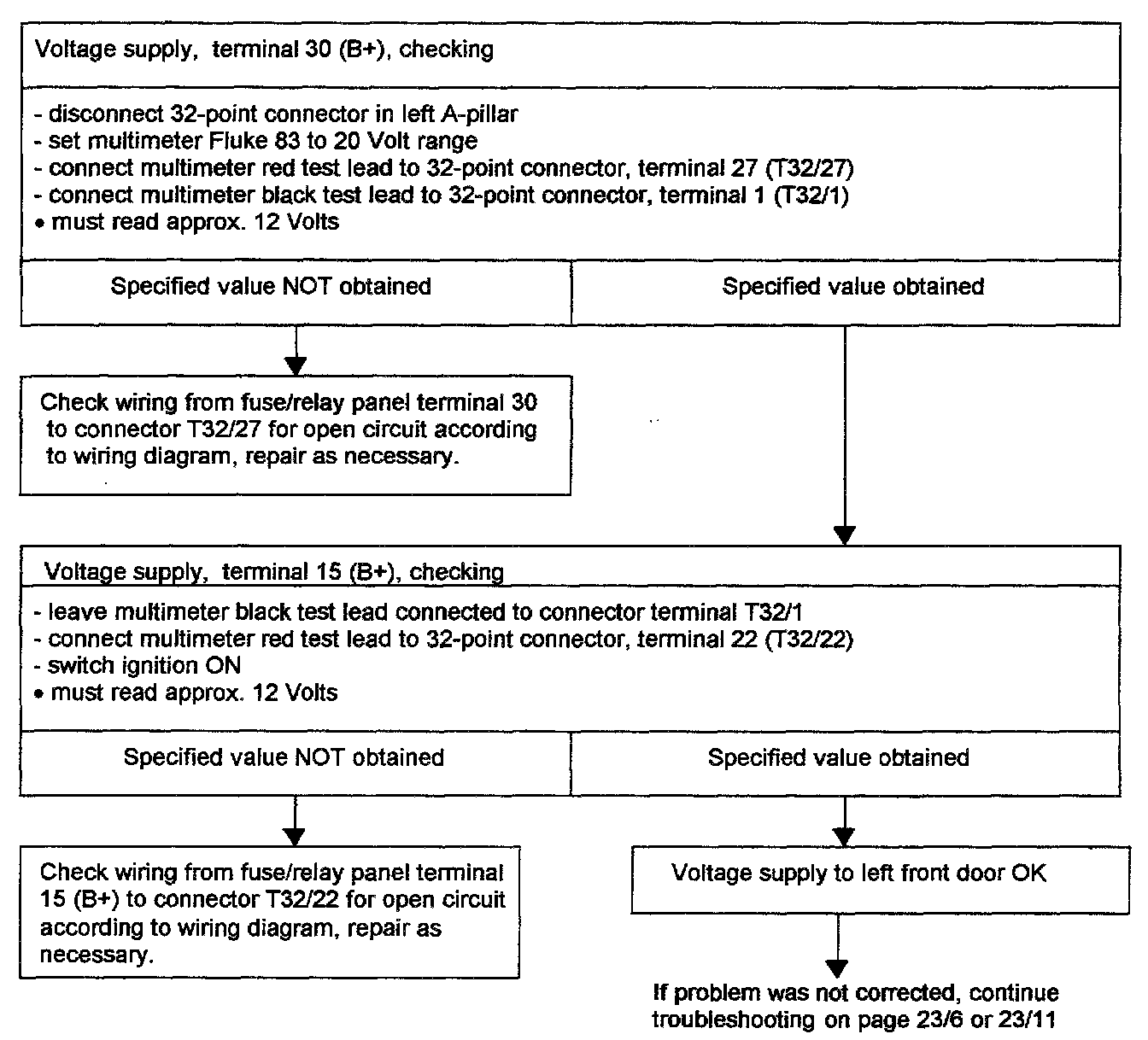

Troubleshooting preparations:
- Switch ignition OFF
- Disconnect 32-point connector in left A-pillar for left side, in right A-pillar for right side.
- Start troubleshooting on left side, continue on right side if necessary.
