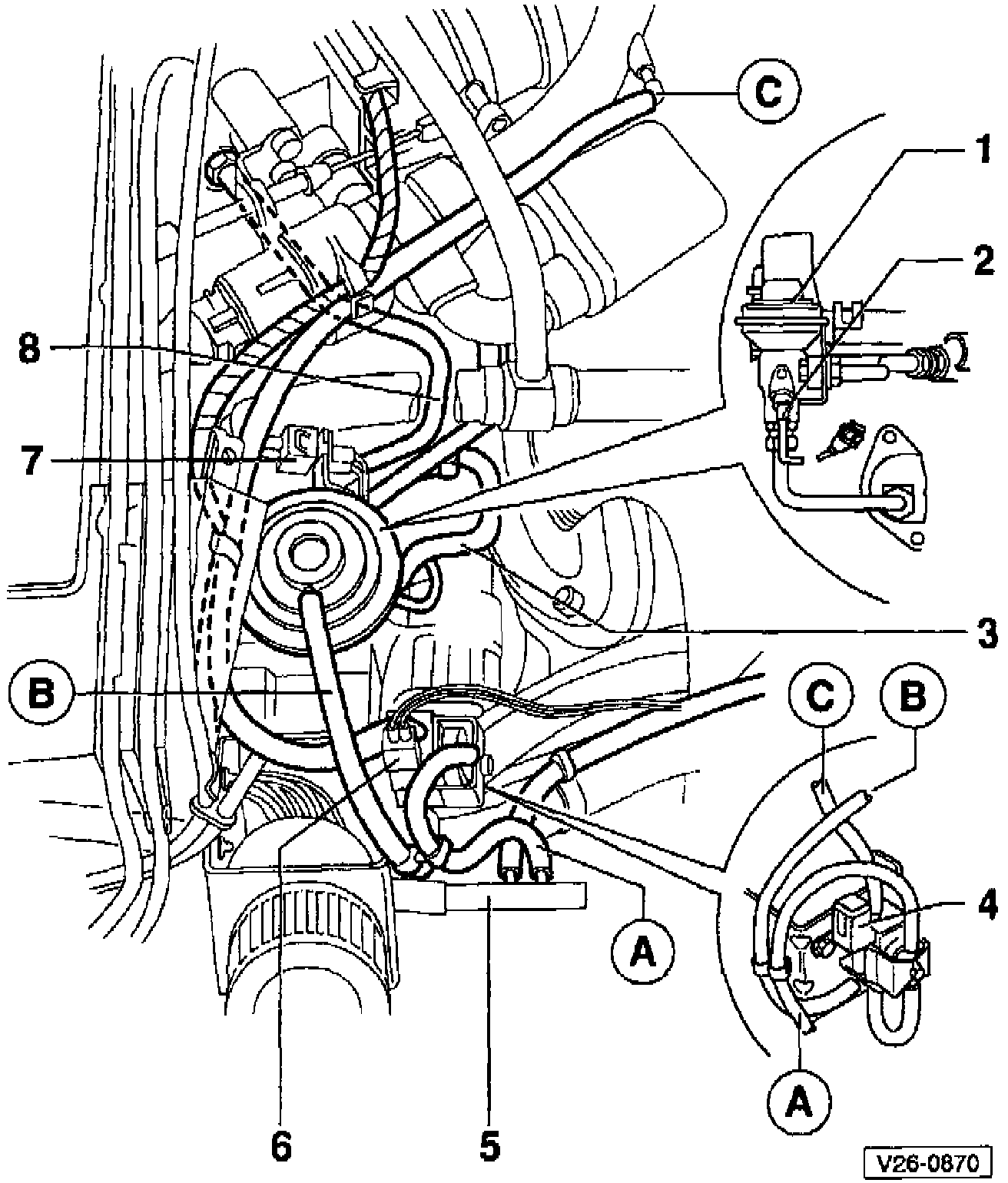

EGR System
1 -
EGR valve
2 -
EGR temperature sensor
^
tightening torque:
20 Nm (15 ft lb).
3 -
Pipe
^
for exhaust gas inlet
4 -
EGR Vacuum Regulator Solenoid Valve N18
^
two-way valve
5 -
Collective vacuum collection
^
for intake manifold vacuum
6 -
Connector
^
2-pin
^
for EGR Vacuum Regulator Solenoid Valve N18
7 -
Connector
^
2-pin
^
for EGR temperature sensor G98
8 -
Pipe
^
for exhaust gas outlet
