Cruise Control Servo: Service and Repair
To remove or adjust the throttle control element the left air duct or the footwell outlets with center console must be removed.

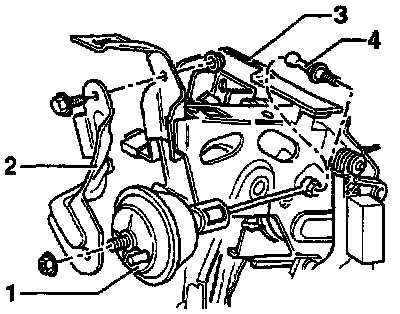

1-
Throttle control element
2-
Throttle control element bracket
3-
Pedal cluster
4-
Throttle cable end ball pin
