With Power Steering and A/C

Generator (GEN) Poly-ribbed Belt, removing/installing

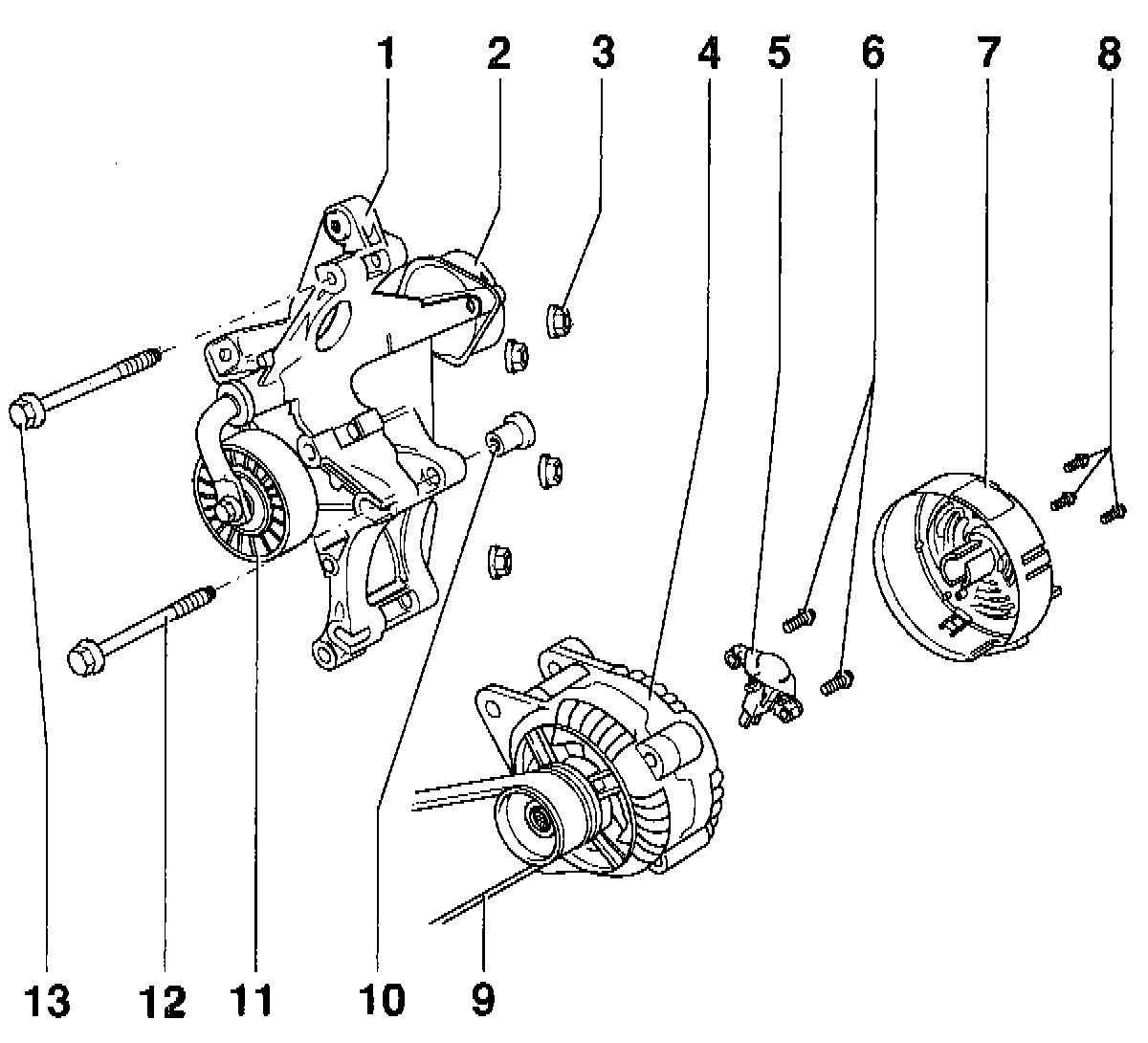

Diesel Engine with Power Steering and A/C







1 - Bracket
2 - Tensioner for tensioning roller
3 - Hex nut M8
- 30 Nm (22 ft lb)
4 - Generator (GEN)
- Servicing refer to Repairing
5 - Voltage regulator
- Checking carbon brushes refer to Repairing
6 - Phillips screw M4 x 25
7 - End cap
8 - Hex bolts M3 x 18
9 - Poly-ribbed belt
10 - Threaded sleeve M8
11 - Tensioning roller
12 - Hex bolt M8 x 85
- 25 Nm (18 ft lb)
13 - Hex bolt
- 25 Nm (18 ft lb)
