Windshield Wiper System
CAUTION: Always disconnect the battery ground (GND) strap before working on the electrical system.

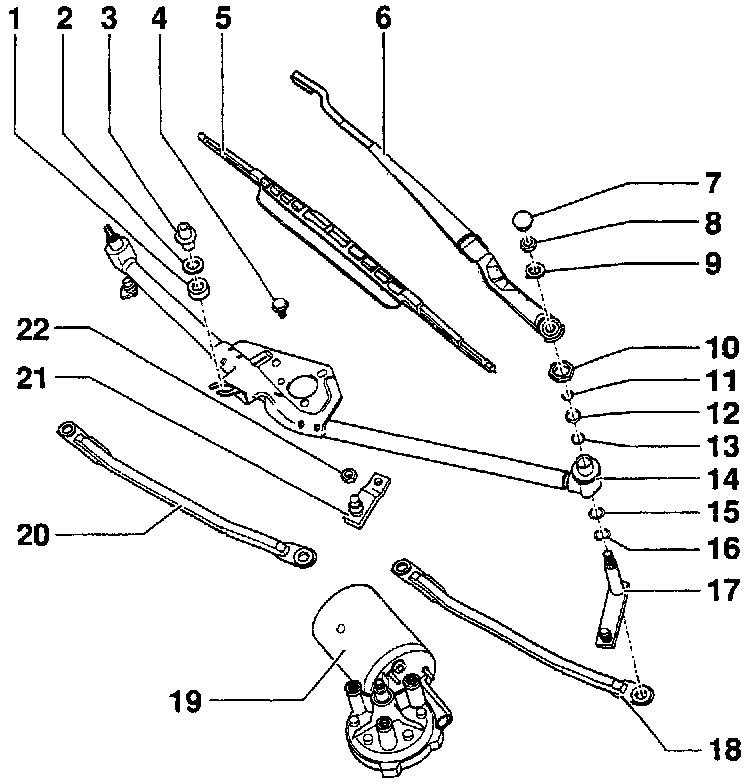

1- Rubber ring
2- Washer
3- Plastic nut
4- M6 hex bolt (5 Nm /44 in lb)
5- Wiper blade
6- Wiper arm
7- Cover cap
8- Hex nut M8 (16 Nm / 12 ft lb)
9- Washer
10- Hex nut M16 (7 Nm / 62 in lb)
11- Snap ring
12- Washer
13- O ring
14- Wiper frame
15- Spring washer
16- Spring washer
17- Wiper shaft
18- Relay rod
19- Wiper motor (Remove wiper frame before motor)
20- Relay rod
21- Crank
22- Hexagon nut M8 (22 Nm / 16 ft lb)
