Vacuum Pump: Service and Repair
Removing and Installing:
-
Remove battery.
Service and Repair -
Remove windshield washer fluid reservoir.
-

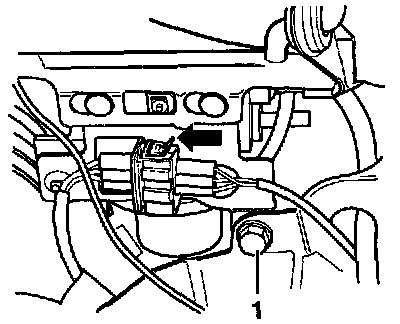

Separate 3-pin connector.
-
Remove nut -1-.
-
Press securing plate with vacuum pump in direction of arrow and remove.
-
Remove vacuum hose from vacuum pump
-V18-.
Install in reverse order of removal.
