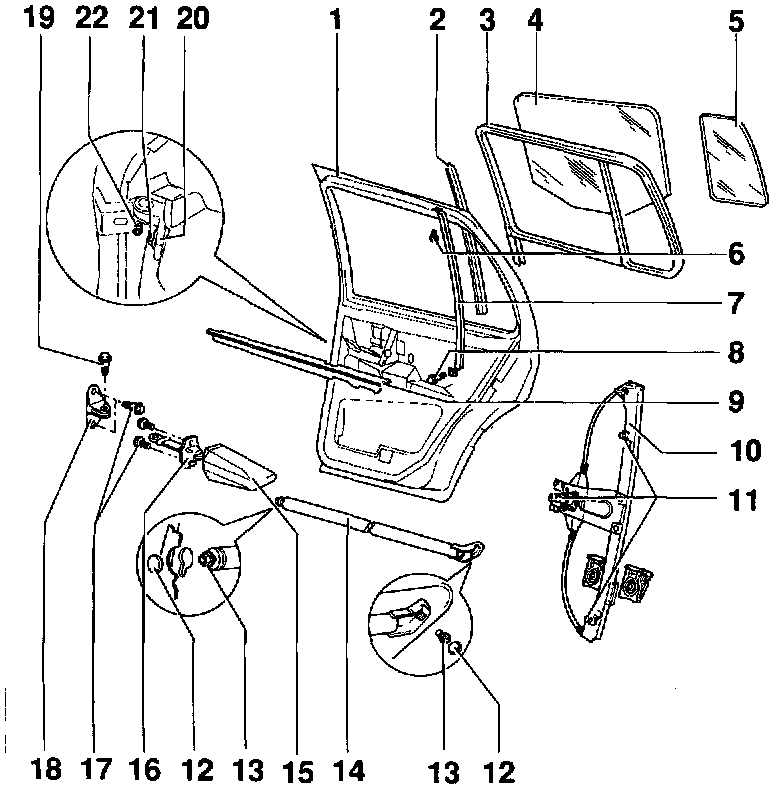

System Diagram

1- Door
2- Window channel connector
3- Window channel
4- Door window
5- Vent window
6- Phillips-head screw
7- Center connector
8- Hex-head screw
9- Window slot seal
10- Window regulator
11- Hex-head screws
12- Cover
13- Hex-head bolt
14- Side impact member
15- Door check strap sleeve
16- Door check strap
17- Hex-head screw
18- Console
19- Bolt
20- Door hinge
21- Torx bolt T45
22- Screw
