Map Light: Service and Repair

NOTE: When checking or replacing the right front map/reading light -W13- bulb, remove the entire light assembly

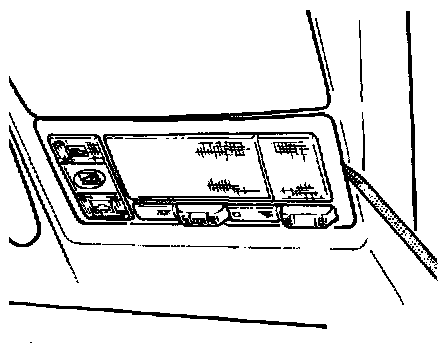

Fig. 1:

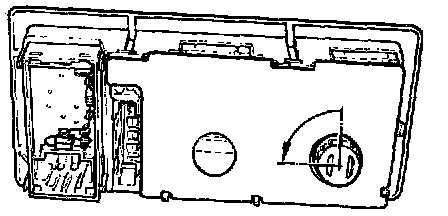

Fig. 2:

- Remove front interior light assembly see Fig. 1.
- Twist bulb holder counter-clockwise (arrow Fig. 2) and remove from interior light.
- Pull bulb (12 V/5 W) straight out of holder (do not twist), replace with new bulb as necessary.
- Reinstall bulb holder on interior light and twist clockwise (opposite direction of arrow in Fig. 2) to lock in place.

Installing
- Install connectors onto interior light assembly.
- Install interior light assembly into headliner.
