Catalytic Converter: Testing and Inspection

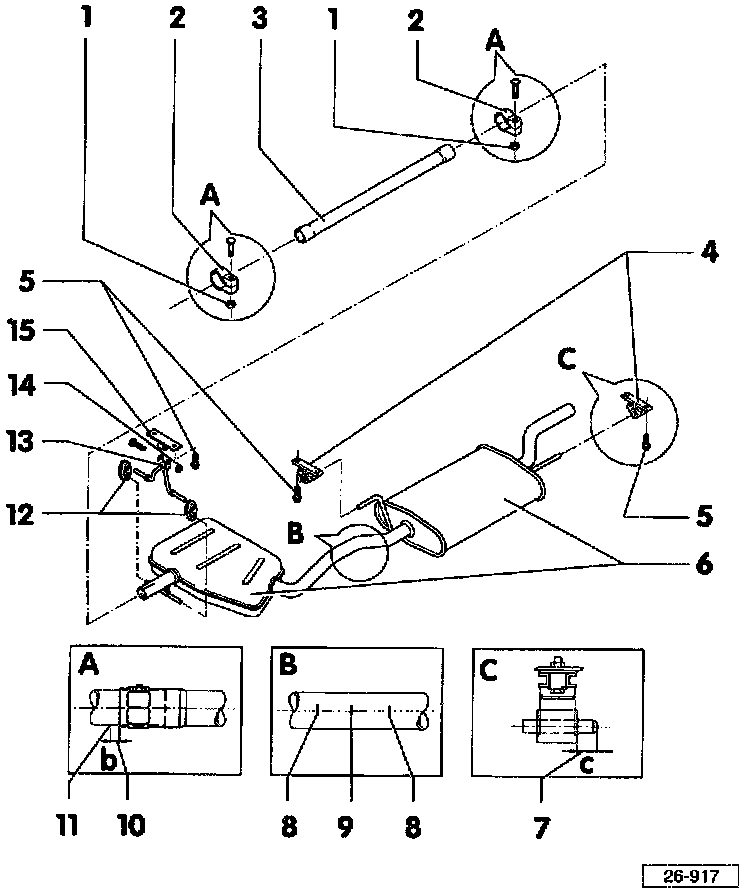

Exhaust System Components:

NOTE: The Exhaust System Must Be Aligned Lengthwise At -A- And -C- According To Dimensions -b- And -c-.


1 40 Nm(30 ft lb)
2 Locking Clamp
3 Intermediate Pipe
4 Bracket
5 25 Nm (18 Ft Lb)
6 Front And Rear Muffler
Available As Separate Replacement Pans
Cut Connecting Pipe At Right Angle At Point -10- See Inset -A-
Connect Front And Rear Muffler With Double Clamp
Slide Double Clamps Toward Mark -8- See Inset -B-
7 Dimension -c
Approx. 10 Mm (0.39 In.)
8 Marking For Double Clamp (To Be Used When Replacing One Of The Mufflers).
Marked Three Times On Pipe Circumference
9 Cutting Point
10 Dimension -b
Approx. 5 Mm (0.20 In.)
11 Marking
Marked Three Times On Pipe Circumference
12 Retaining Ring
13 Bracket
14 20 Nm (15 Ft Lb)
15 Bracket
