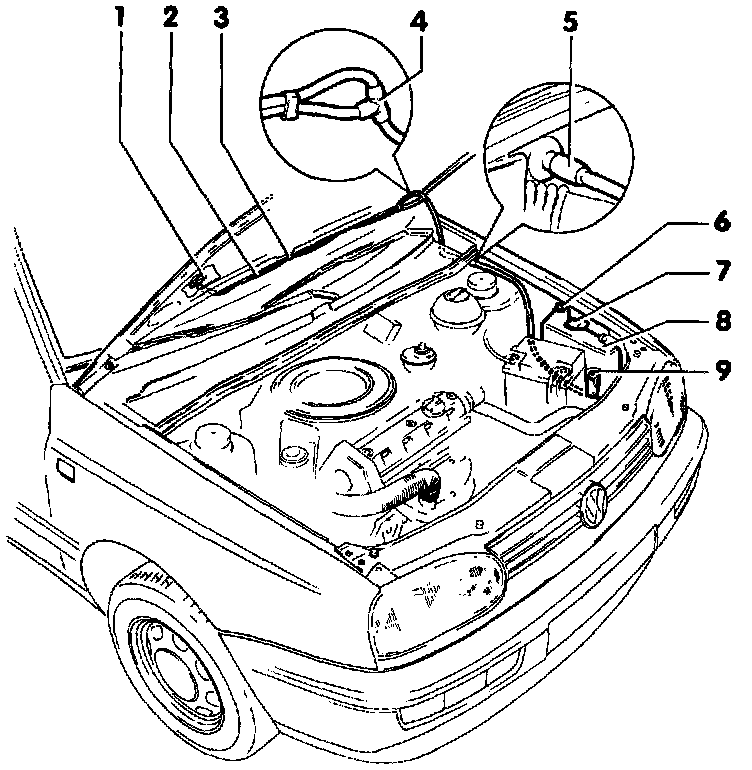

Washer System Components

1- Washer nozzles
2- Hose (4 x 1)
3- Retaining clip
4- T-fitting
5- Hose connector
6- M5 plastic nut
7- Washer fluid reservoir cap
8- Washer fluid reservoir
- Capacity: 4.0 liters (4.2 qt)
9- Windshield washer pump -V59-
