Display Groups 0 to 9 (Basic Functions), Evaluation
Measuring Value Blocks, Display Groups 0 To 9 (Basic Function), Evaluating

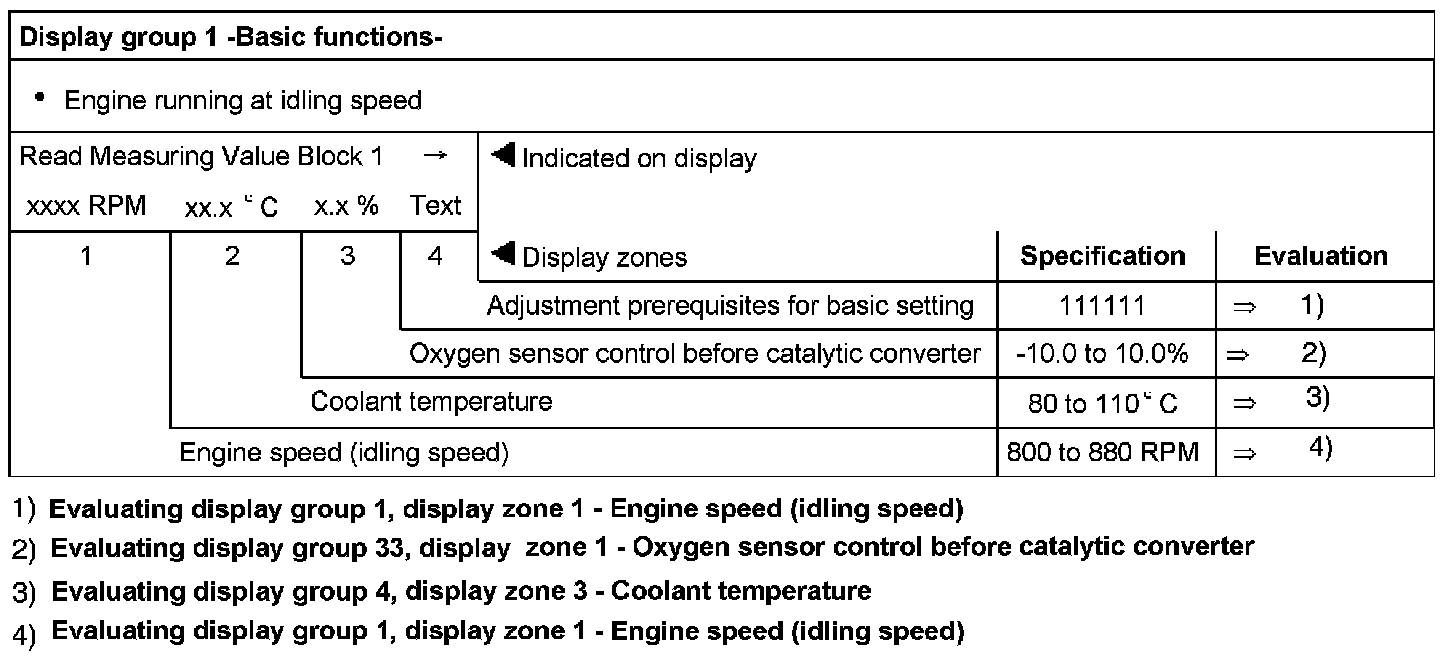

Display group 1, Basic-Function
Display Group 1:

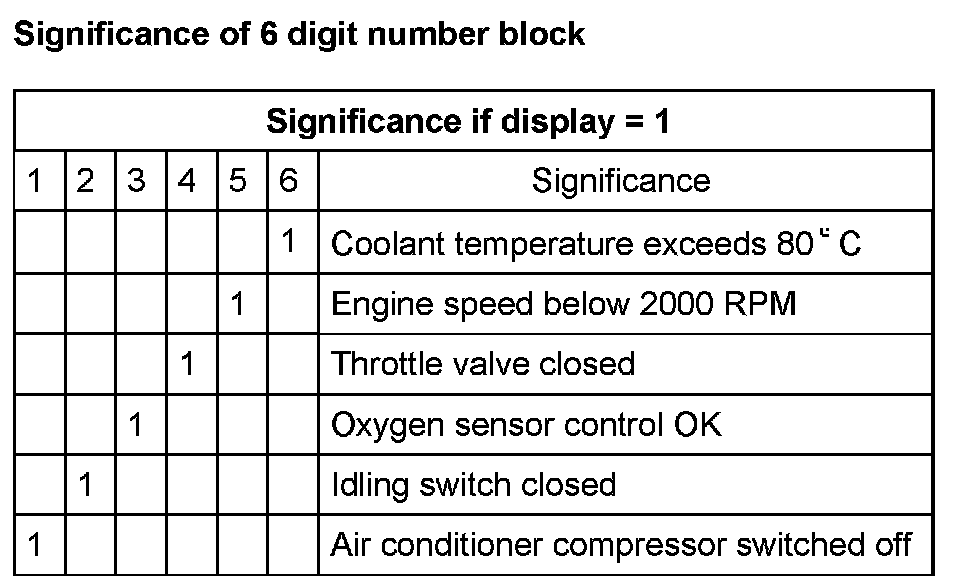

Significance of 6 digit number block

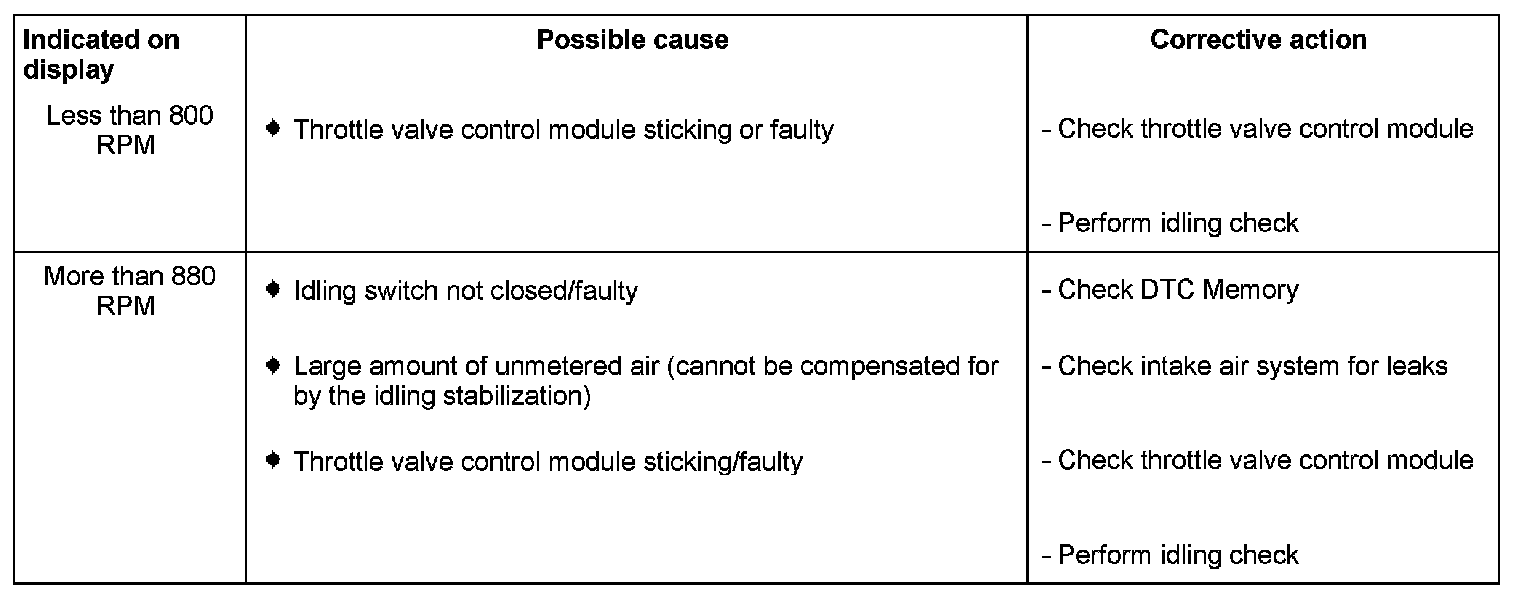

Evaluating display group 1, display zone 1 - Engine speed (idling speed)
Evaluating Display Group 1, Display Zone 1:

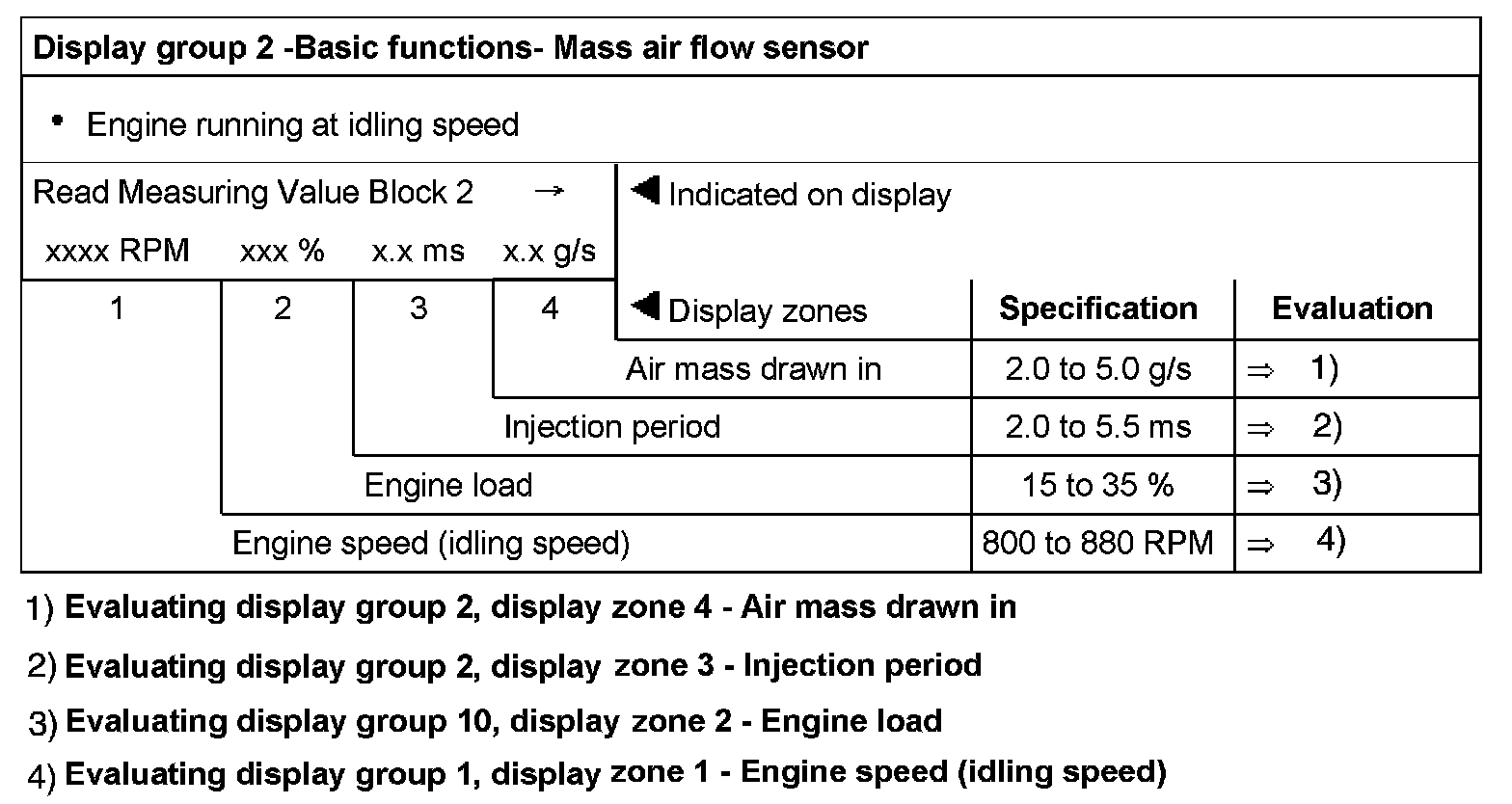

Display group 2 -Basic functions- Mass air flow sensor
Display Group 2:

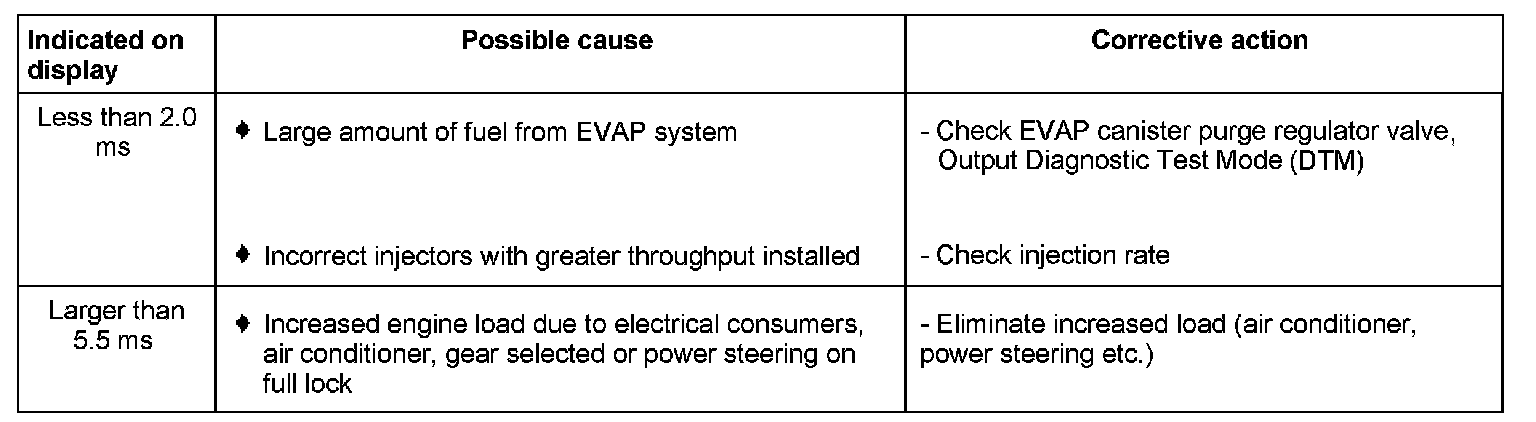

Evaluating display group 2, display zone 3 - Injection period
Evaluating Display Group 2, Display Zone 3:

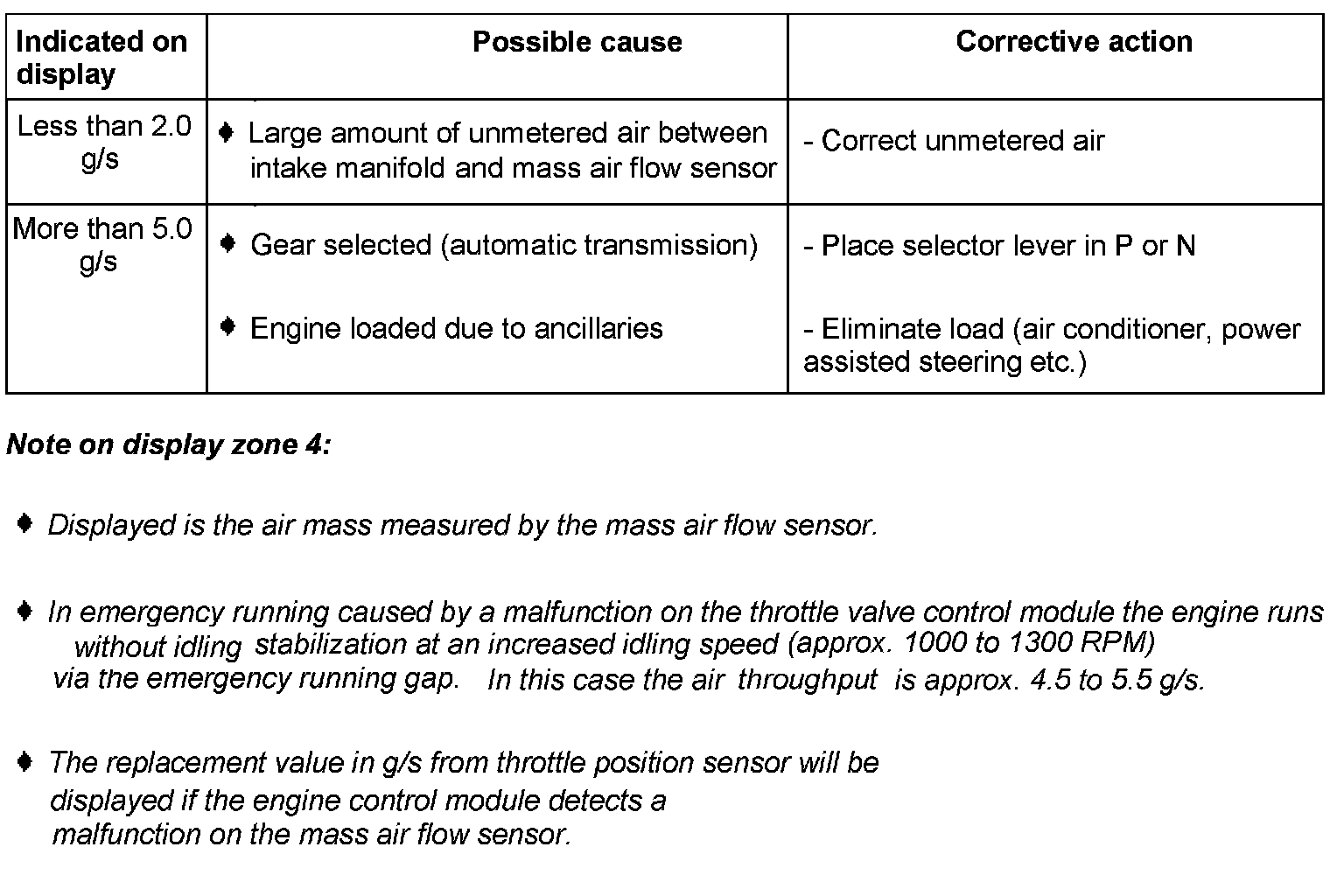

Evaluating display group 2, display zone 4 - Air mass drawn in
Evaluating Display Group 2, Display Zone 4:

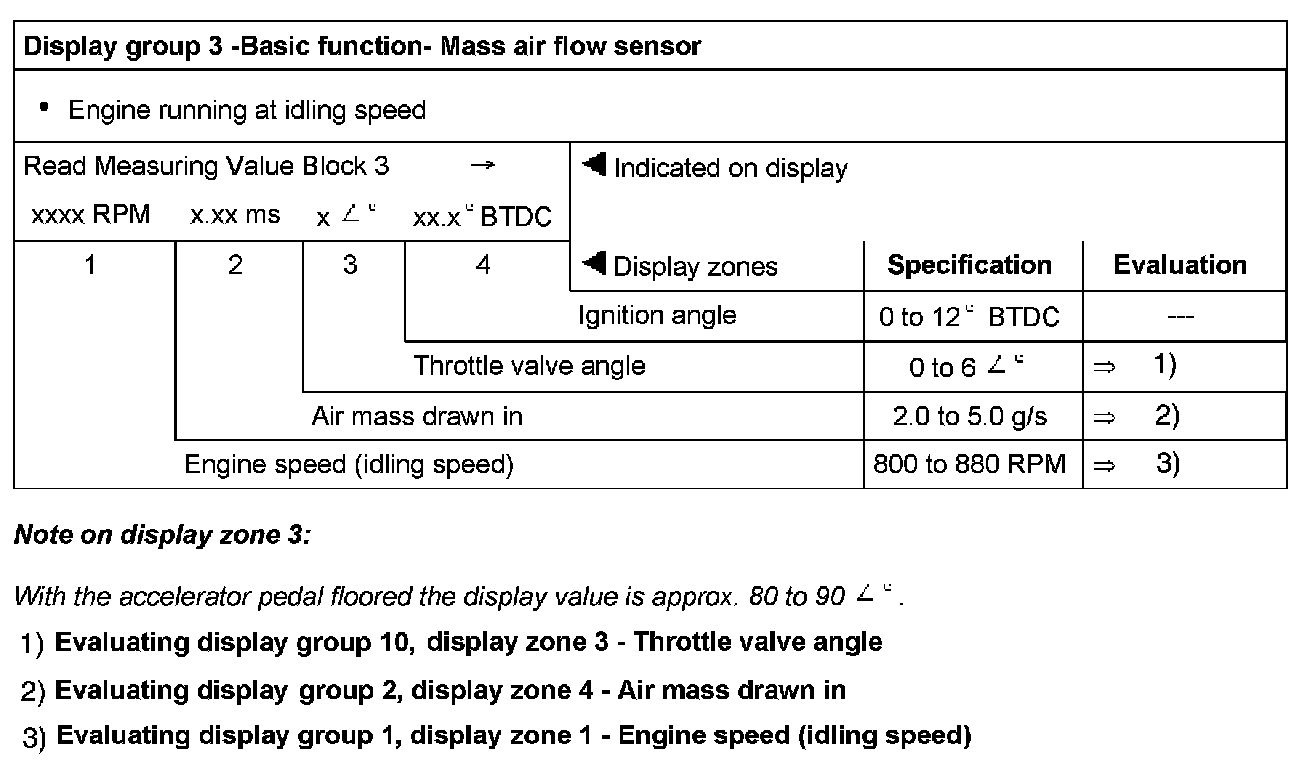

Display group 3 -Basic function- Mass air flow sensor
Display Group 3:

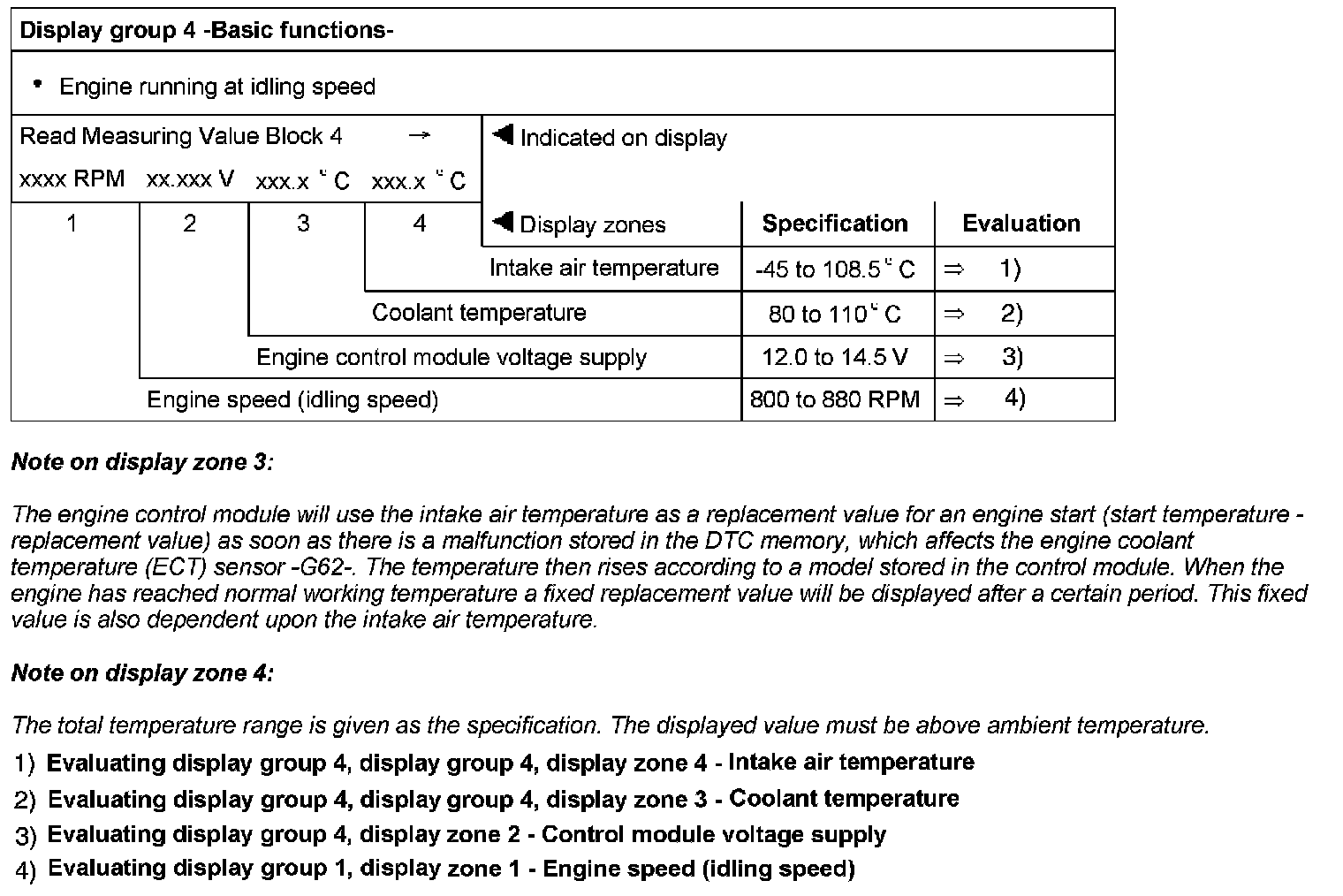

Display group 4 -Basic functions-
Display Group 4:

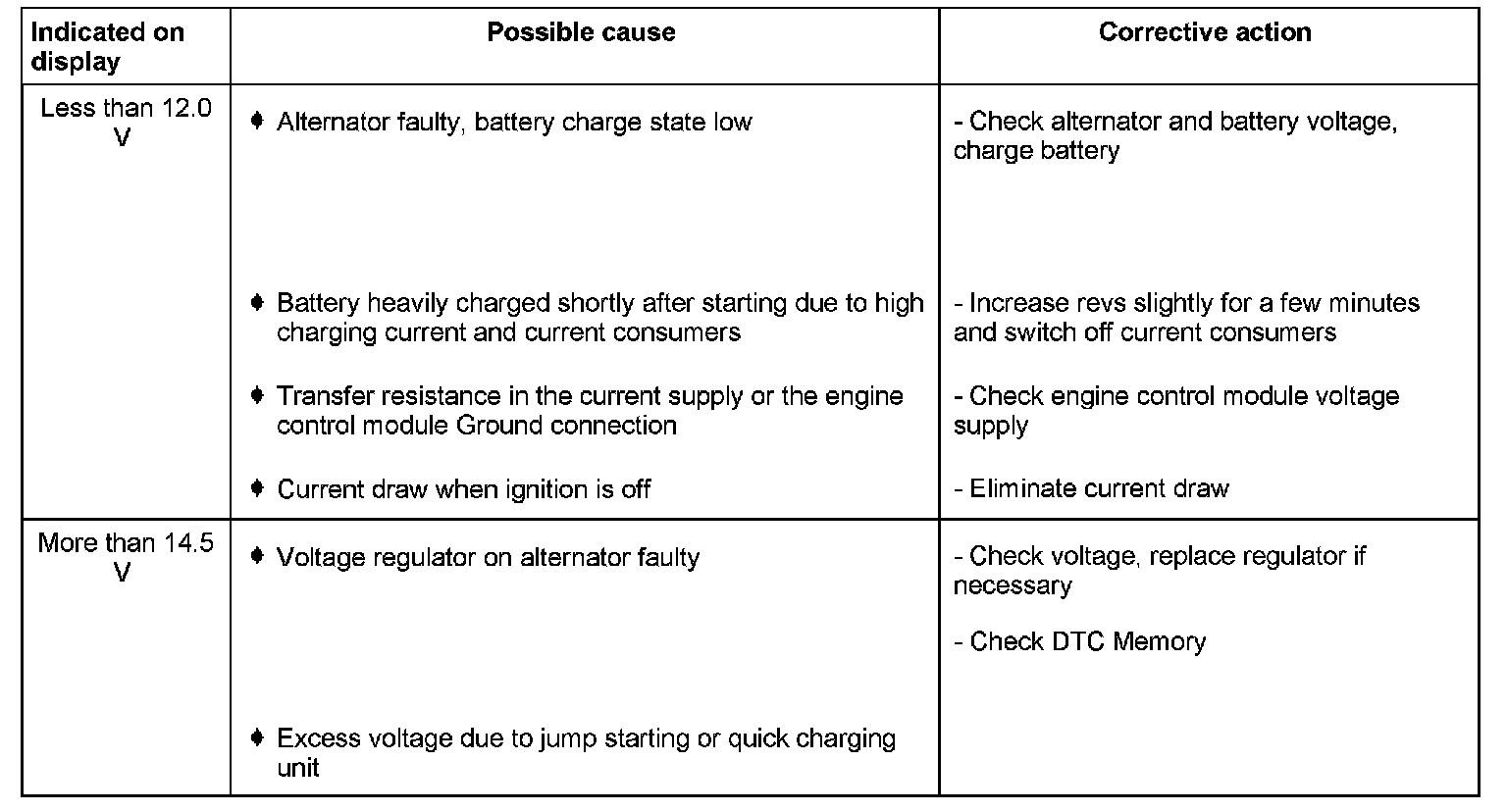

Evaluating display group 4, display zone 2 - Control module voltage supply
Evaluating Display Group 4, Zone 2:
Evaluating display group 4, display zone 3 - Coolant temperature
Evaluating Display Group 4, Display Zone 3:
Evaluating display group 4, display zone 4 - Intake air temperature
Evaluating Display Group 4, Zone 4:

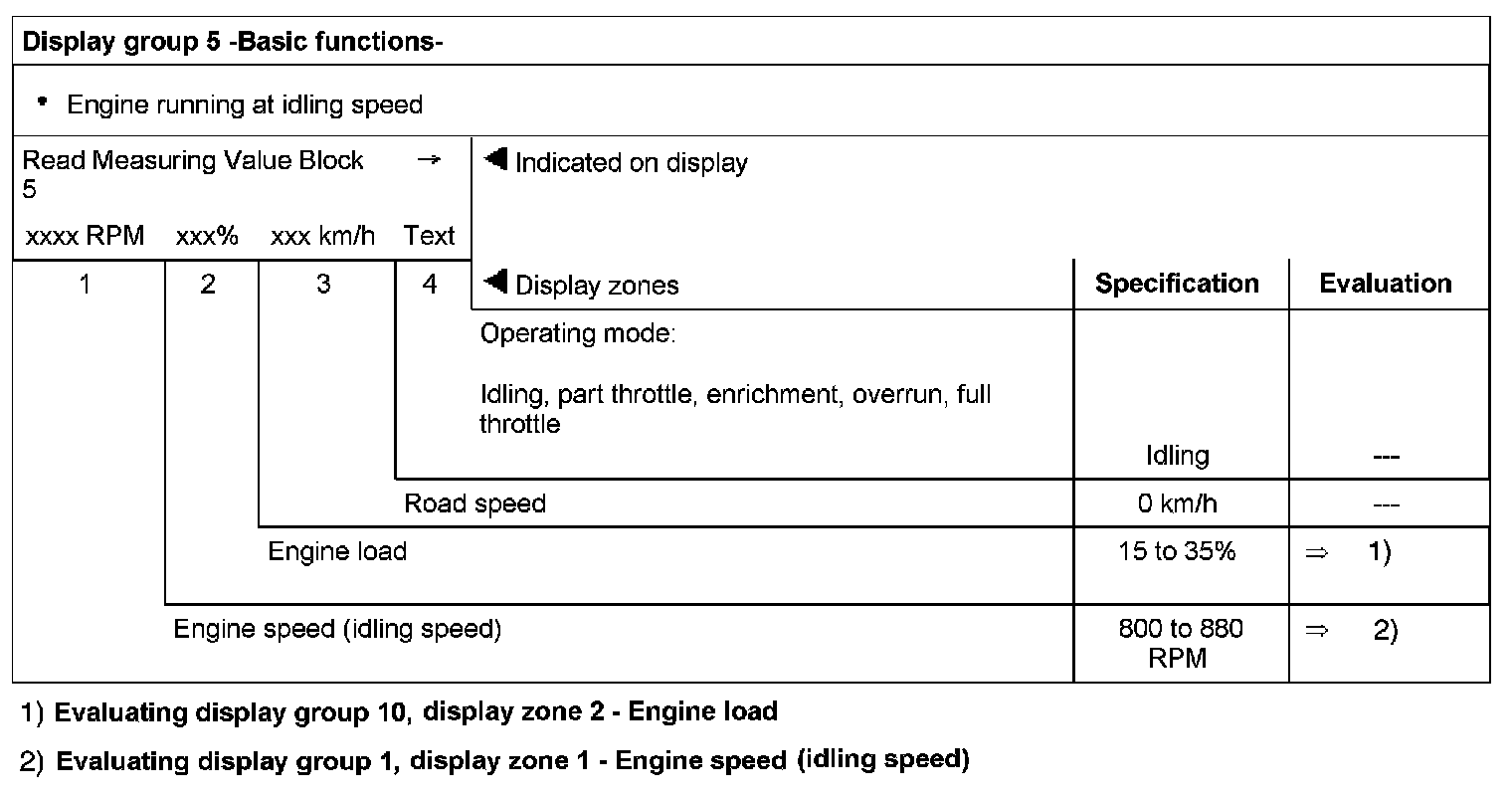

Display group 5 -Basic functions-
Display Group 5:

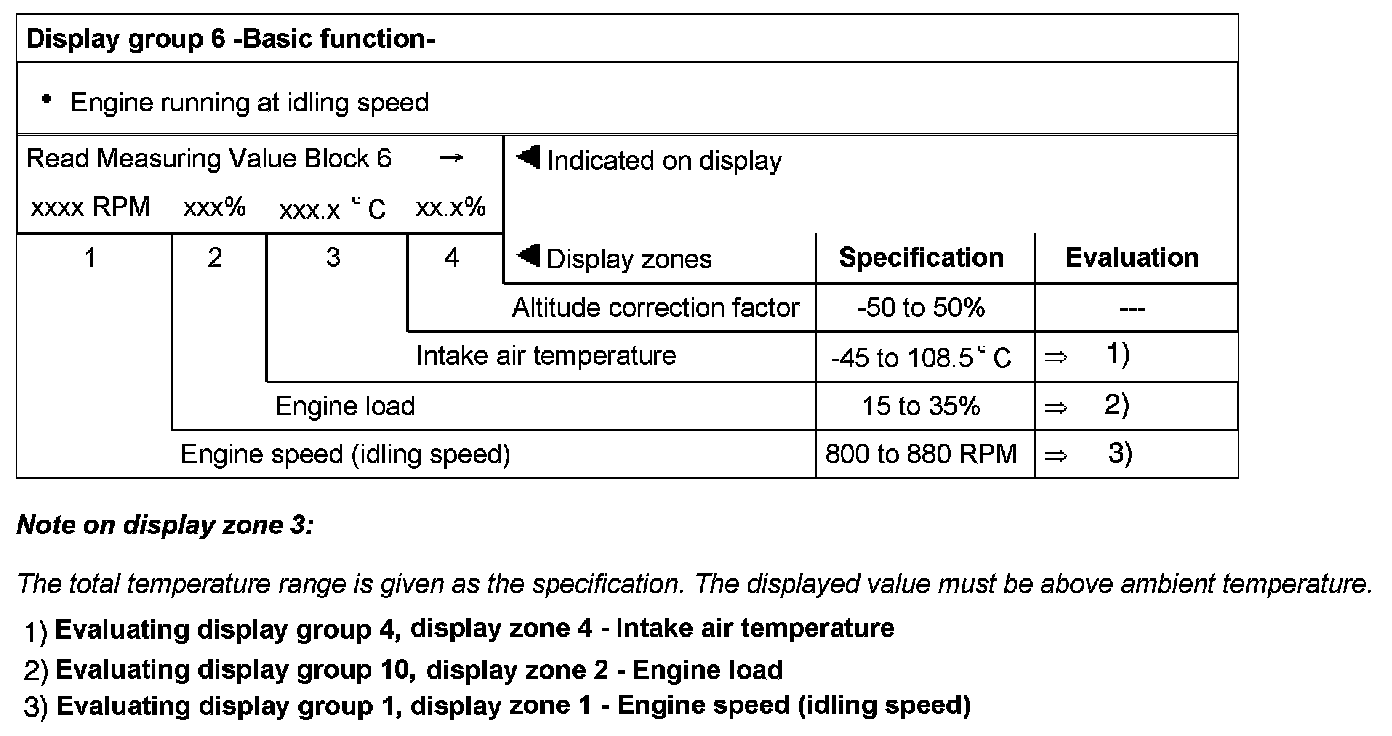

Display group 6 -Basic function-
Display Group 6:
