Display Groups 80 to 100 (Readiness Code), Evaluation



Measuring Value Blocks, Display Groups 80 To 100 (readiness Code), Evaluating

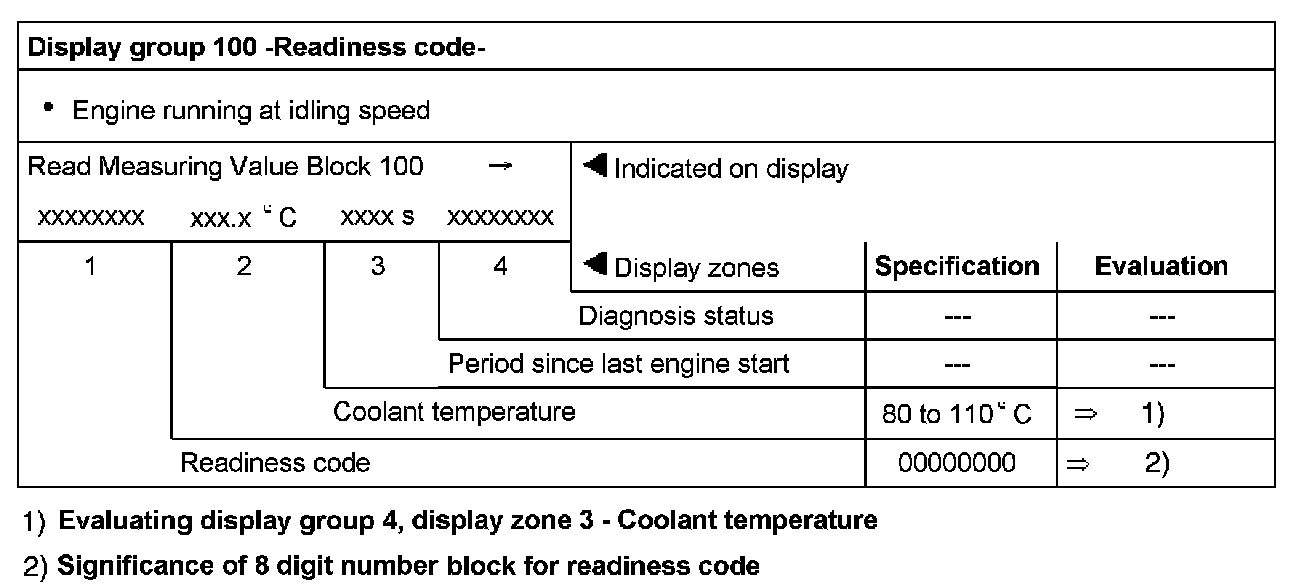

Display group 100 -Readiness code-


Display Group 100:

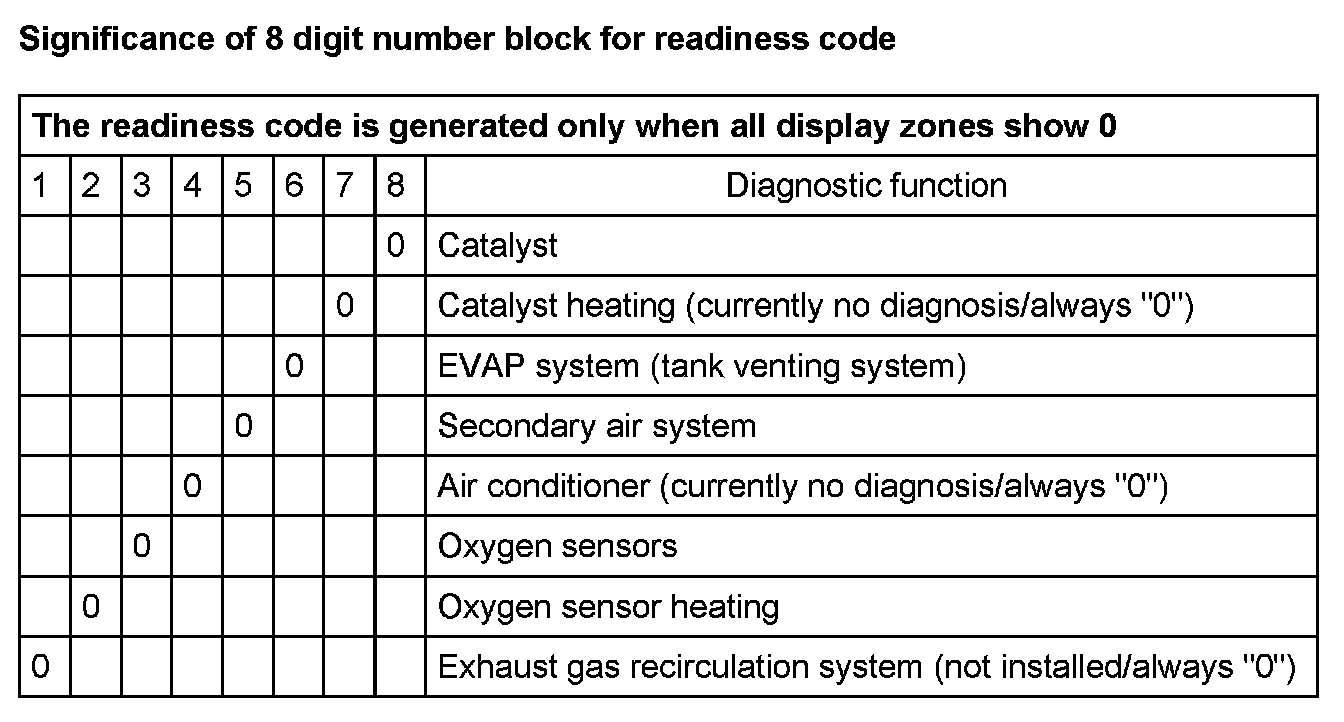

Significance of 8 digit number block for readiness code
