Alarm Module: Locations

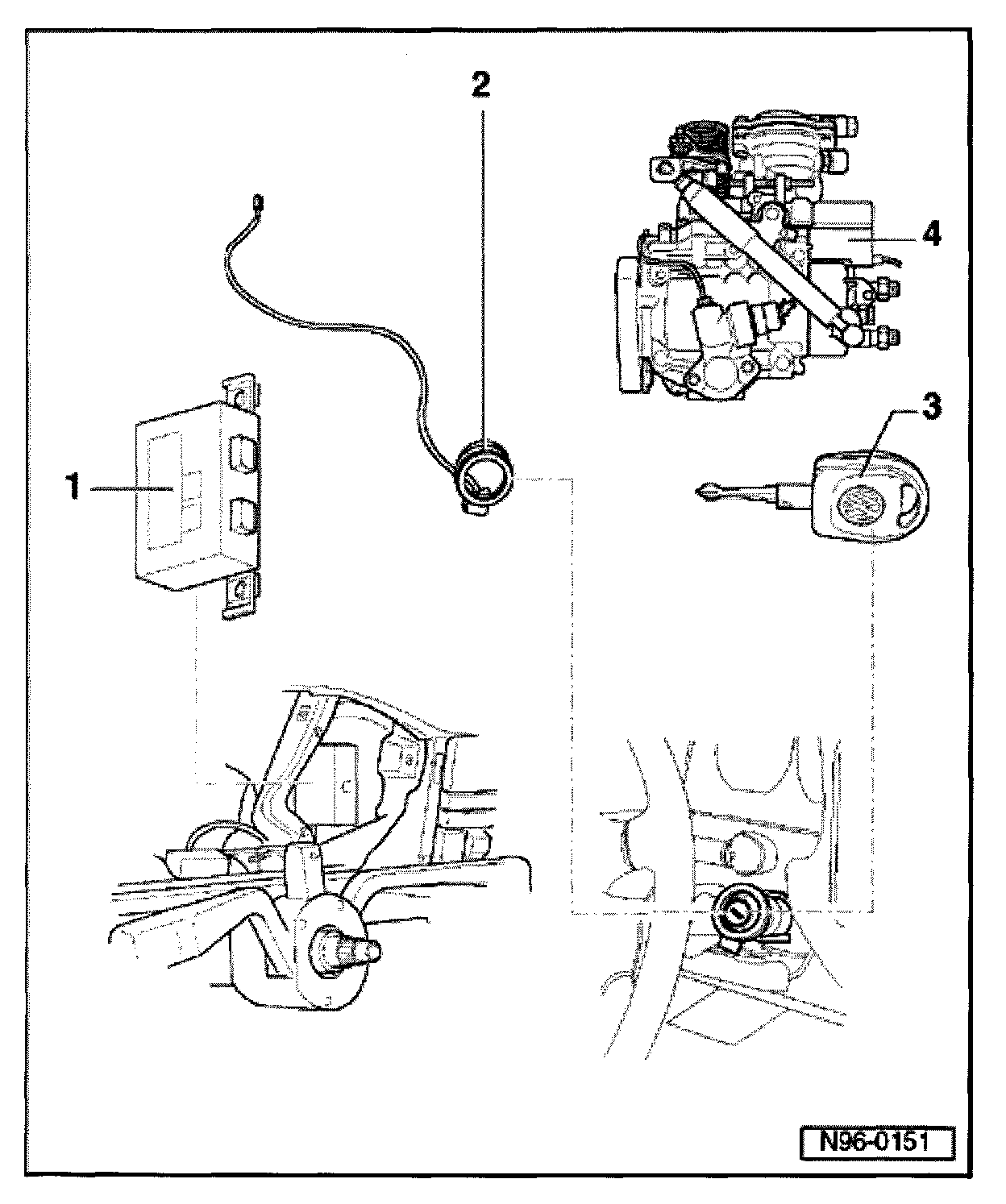

Anti-theft Immobilizer System, Overview 1 - Immobilizer control unit -J362- -
Location: On the right instrument cluster mounting bracket, behind instrument cluster.
2 - Induction coil of anti-theft immobilizer -D2- -
Location: On steering/ignition lock housing
3 - Transponder in ignition key 4 - Fuel cut-off valve control unit -
Not for USA/CDN
-
Diesel models only
