Engine Speed Sensor

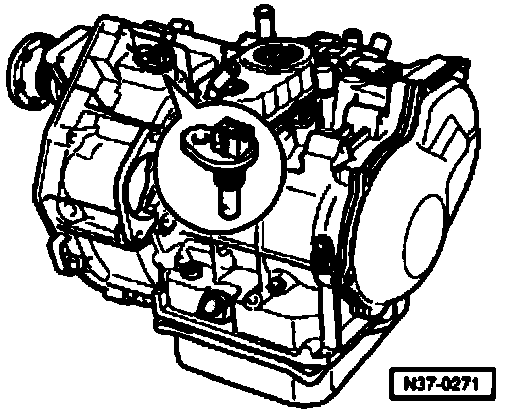

Fig. 25 Engine speed (RPM) sensor -G28- (for naturally aspirated diesel engine) Location: The
engine speed sensor is located on top of transmission.
Removing and Installing engine speed sensor -
Pull connector off sensor
-
Remove bolt and pull sensor out.
-
Always replace O-ring.
Installation is performed in the reverse order.
-
Tighten bolt to 10 Nm.
