Front Fender: Service and Repair

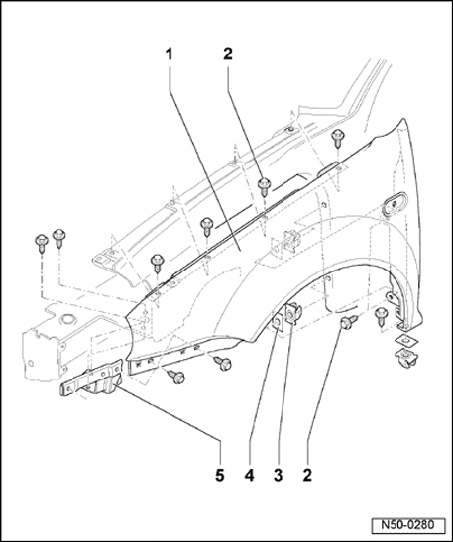

Front Fender, Assembly Overview 1
-
Fender -
Removing
-
Remove front
bumper.
-
Remove wheelhousing liner.
-
Heat
fender in area of A-pillar using a heat gun and remove.
-
Installing:
-
Before bolting on
fender, insert one intermediate piece each for bolt points in contact area.
2
-
Bolt
-
Qty. 9
3
-
Spring nut
4
-
Gasket
5
-
Bracket
-
Bolted on with front longmember
