Outside Rear View Mirror, Assembly Overview

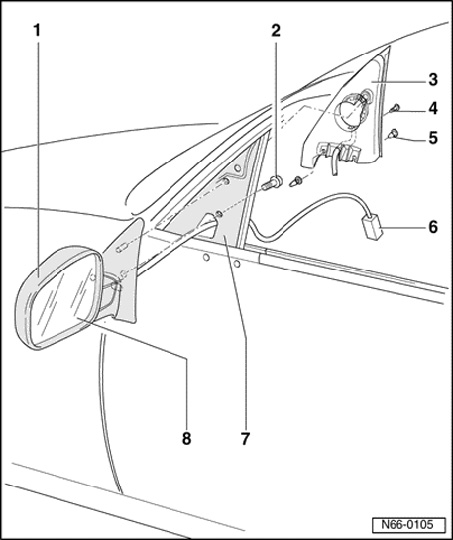

Outside Rear View Mirror, Assembly Overview







1 - Mirror housing
- Material - ABS

2 - Bolt
- 10 Nm

3 - Cover for outside rearview mirror
4 - Bolt
5 - Clip
6 - Connector
7 - Insulation
8 - Mirror lens
- Removing
- Press off mirror lens first at bottom, then at top special tool Pry lever 80-200 protect mirror housing from damage.

- Installing:
- Insert mirror lens into mount with guide pins and press on.
- Only press on center of glass - always use protective gloves
