Radiator Support: Locations

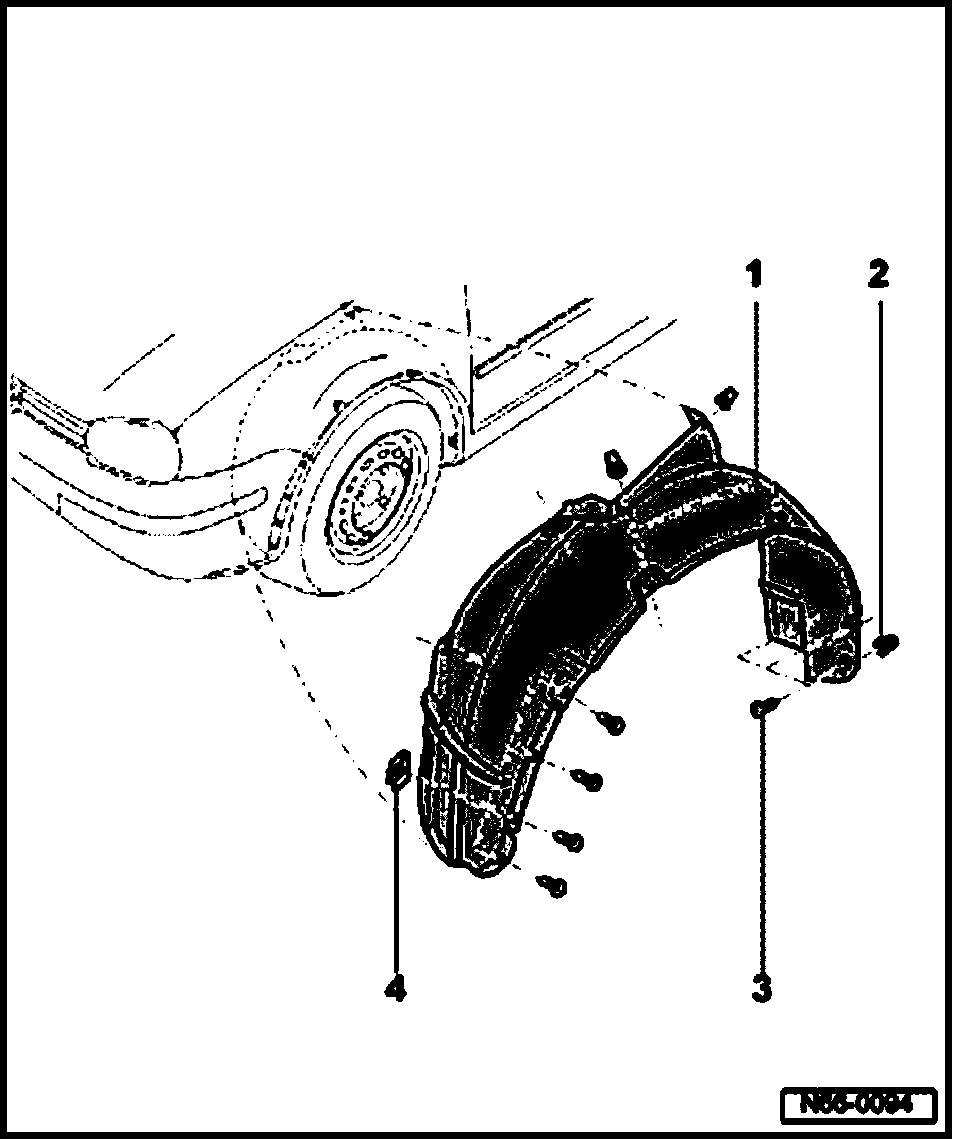

Front Wheelhousing Liner 1.
Wheelhousing liner
-
Material - PP/EPDM
-
Removing
-
Remove wheel. Tightening torque of wheel bolts =
120 Nm.
-
Remove bolts (Qty. 12) and remove wheelhousing liner.
2.
Expanding nut
3.
Screw
4.
Speed nut
-
Connected to bumper cover
