Load Compensator: Service and Repair

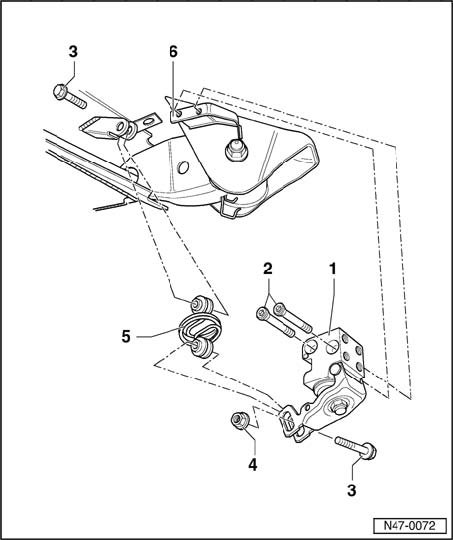

Brake pressure regulator, assembly overview

1- Brake pressure regulator
2- Hex socket head screw, 21 Nm (15 ft. lb)
3- Hex bolt, 16 Nm (12 ft. lb)
4- Nut, 21 Nm (15 ft. lb)
5- Spring
6- Mounting bracket
