Compact Disc Player (CD)
CD Player Multi-pin Connector Assignments

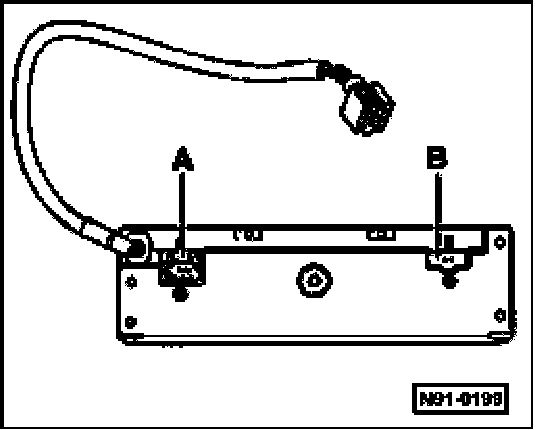

Multi-pin connector "A"
Multi-pin connection "A" is identical to blue multi-pin connection I, part 3, on "Premium IV" and "Premium V" radios
13. CD Changer - DATA IN
14. CD Changer - DATA OUT
15. CD Changer - CLOCK
16. CD Changer - Power supply, positive (B+) supply
17. CD Changer - Control signal
18. CD Changer - Ground (GND), terminal 31
19. CD Changer - LINE OUT, left
20. CD Changer - LINE OUT, right
Multi-pin connector "B"
1. CD Player Ground (GND), terminal 31
2. CD Player illumination, terminal 58d
