Basic Setting, Initiating

Basic setting, initiating, 01M, 4 Spd. A/T

Note: Initiate the basic setting after performing the following repairs:

^ Engine replacement
^ Engine control module replacement
^ Replacing/altering throttle valve (setting idling speed)
^ Throttle Position (TP) Sensor -G69- replacement
^ TP Sensor -G69- setting alteration, e.g. when adjusting Closed Throttle Position (CTP) Switch (engine)
^ Transmission Control Module -J217- replacement

- Connect VAG 1551 Scan Tool and enter address word 02 Transmission electronics. Advance until Select function XX appears in the display.

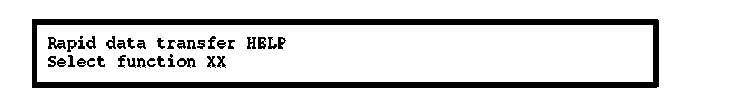

Indicated on display
- Press buttons -0- and -4- to select Initiating basic setting function 04.

Note: The accelerator pedal must remain in idling position.

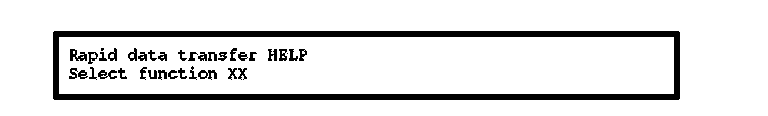

Indicated on display
- Confirm entry with -Q- button.

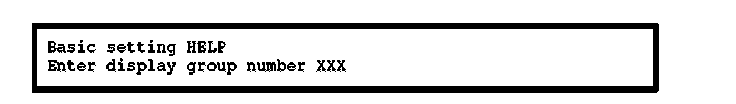

Indicated on display
- Press buttons -0-, -0- and -0-.
- Confirm entry with -Q- button.





Indicated on display
The system is now in basic setting.
- Depress accelerator pedal as far as kickdown and hold in this position for 3 seconds.
- Press -> button.





Indicated on display
