Measured Value Block, Reading

Measured value block, reading, 01M, 4 Spd. A/T

- Connect VAG 1551 Scan Tool and enter address word 02 Transmission electronics. Advance until Select function XX is indicated on display.

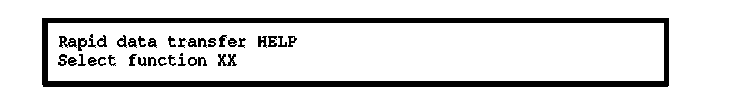

Indicated on display
- Press buttons -0- and -8- to select Read measured value block function 08.





Indicated on display
- Confirm entry with -Q- button.

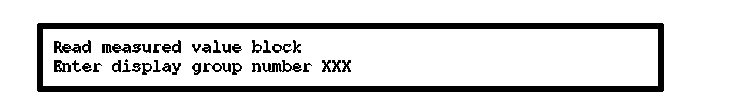

Indicated on display
- Enter display group number go to List of selectable display group numbers. List of Selectable Display Group Numbers
- Confirm entry with -Q- button.





There are always 4 display fields in the measured value block (in actual physical quantities if necessary). Decoding the individual values in display fields 1 to 4 go to Test table. Test Tables
