Rear Window, Assembly Overview

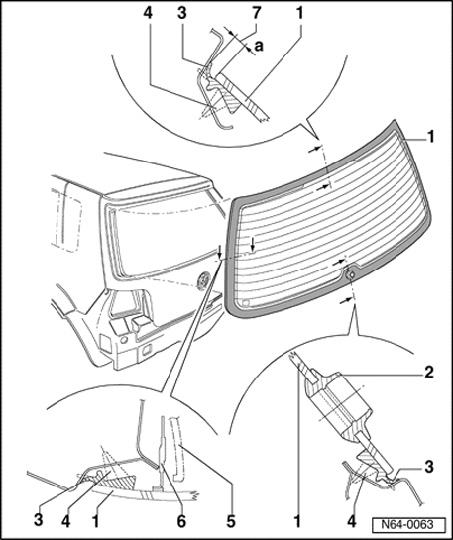

Rear Window (Golf), Assembly Overview 1
-
Rear window
2
-
Gasket
-
for rear window wiper
3
-
Sealing lip (component part of pre-coating)
4
-
PUR adhesive sealant
-
Bead cross section:
-
Width =
7 mm -
Height =
11 mm (including pre-coating, residual material on
window glass and window flange)
-
Minimum curing time.
5
-
Trim
6
-
Contact for window heater
7
-
Gap dimension - a - =
4.5 mm
