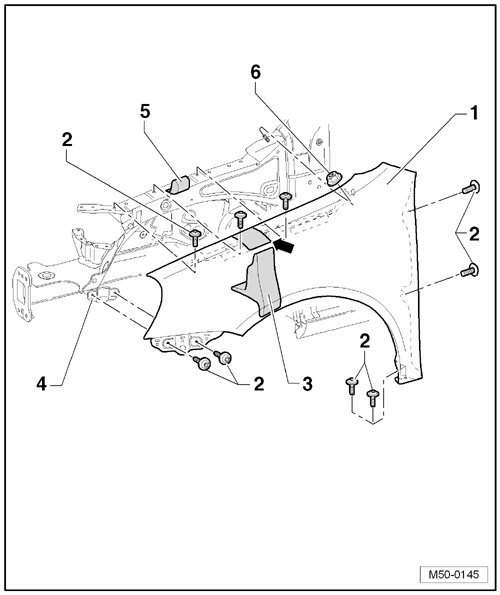

Front Fender Assembly Overview

Front Fender Assembly Overview

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1783)

• The description applies to the left side. The right side is similar.





1 Fender

• Removing and installing. Refer to => [ Fender ] Fender

2 Screw

• Qty. 2, A-pillar

• Qty. 2, side member

• Qty. 2, fender brace

• Qty. 3, fender connecting piece

• 6 Nm

3 Foam Piece

• Inserted between fender and upper longitudinal member

4 Fender Brace

• Removing and installing. Refer to => [ Fender Brace ] Fender Brace

5 Molded Foam Piece

• Connected to upper longitudinal member

• Secures at fender

6 Hex Nut

Located at fender connecting piece

• Qty. 1

• 6 Nm
