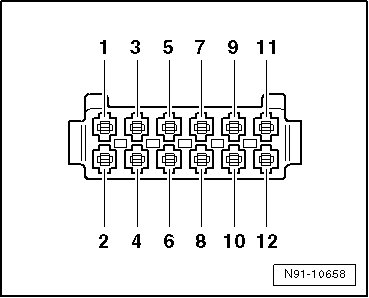

iPod(R) Multi-Pin Connector Assignment

iPod(R) Multi-Pin Connector Assignment





1. DATA (Data exchange between device and radio)

2. DATA-CLOCK (internal test protocol for monitoring data flow)

3. Ground (GND), terminal 31

4. Radio control data (analog CD changer)

5. not in use

6. Voltage supply, positive ( B+ ), terminal 30

7. Audio signal output, right, positive

8. Control wire from radio, positive (analog CD changer)

9. Audio signal output, negative

10. Audio signal output, left, positive

11. not in use

12. not in use
