Vehicle Position Recognition Control Module






Vehicle Position Recognition Control Module

Removing

Control module is secured to plate of rear parcel shelf and is accessible from luggage compartment.

CAUTION!
Before beginning repairs on electrical system

• Switch off all electrical consumers.

• Switch ignition off and remove ignition key.

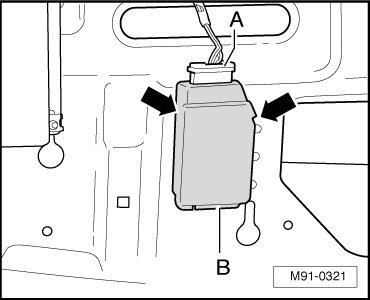

- Unclip control module - arrows - and remove from mount - B -.





- Disconnect electrical connection - A -.





Installing

Install in reverse order of removal.
