Mirror Adjustment Switch Module, Driver Side







Mirror Adjustment Switch Module, Driver Side

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Driver Side Mirror Adjustment Switch Module (depends on equipment)

• Mirror Adjustment Switch (E43)

• Mirror Selector Switch (E48)

• Outside Mirror Heating Switch (E231)

• Mirror Folding Switch (E263)

• Mirror Adjustment Switch Illumination (L78)

The components listed above cannot be replaced separately.

- Replace the driver side mirror adjustment switch module if it is faulty.


• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removal

- Remove the window regulator switch module on the driver side. Refer to => [ Window Regulator Switch Module, Driver Side ] Window Regulator Switch Module, Driver Side.

- Unclip the frame for the switches from the trim.

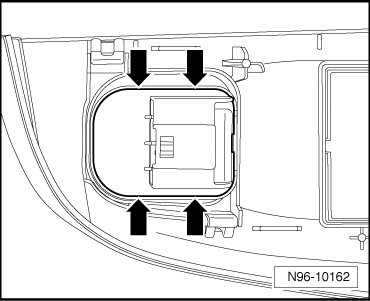

- Open the tabs - arrows - and remove the switch module.






Installation

Install in reverse order of removal.
