Air Bag Control Module
Control Modules- Control Module Multi-Pin Connector Views,Airbag Control Module -J234-Location: Below center console -Arrow-.

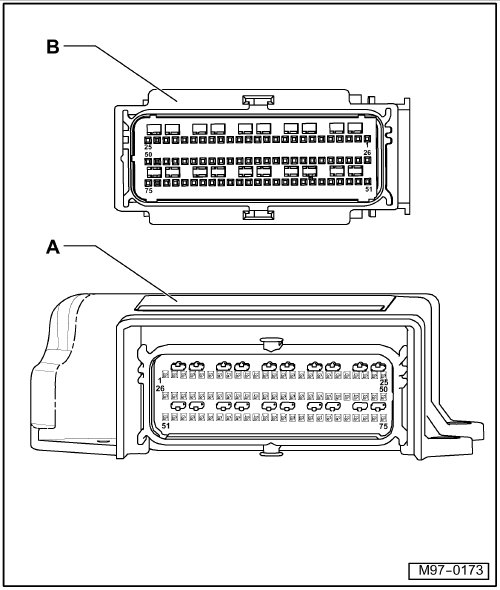

Pin Arrangements: A - Airbag Control Module -J234- Connector: B - 50-Pin Connector, -T50- , in wiring harnessPin Arrangements: A - Airbag Control Module -J234- Connector: B - 75-Pin Connector, -T75- , in wiring harness
