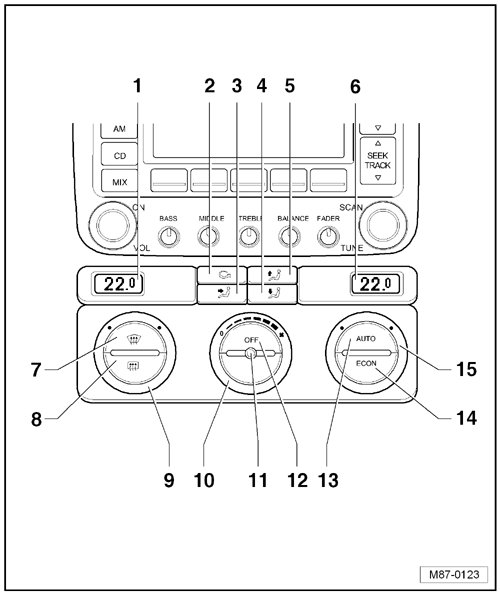

Climatronic A/C Display Control Head Overview

Climatronic A/C Display Control Head Overview






1 Display Of Selected Interior Temperature, Left Side

2 Recirculating Air Mode Button

• Press button for recirculating air function to prevent polluted air from entering interior.

3 Center Air Distribution Button

4 Lower Air Distribution Button

5 Upper Air Distribution Button

6 Display Of Selected Interior Temperature, Right Side

7 Windshield Defrost Button

8 Push Button For Rear Window Defroster

9 Left Interior Temperature Knob

10 Blower Regulator

• Changed blower speed by turning.

11 Interior Temperature Sensor

12 Push Button For Heating, Ventilation and A/C Operation

13 AUTO Button

• By pressing the AUTO button, Climatronic maintains the selected vehicle interior temperature completely automatically. With this setting the vent air temperature, the blower speed and the air distribution are controlled automatically.

14 ECON Button

• By pressing the ECON button, A/C compressor is set to almost zero delivery. The heating and ventilation operation continues to be controlled electronically.

15 Right Side Interior Temperature Control
